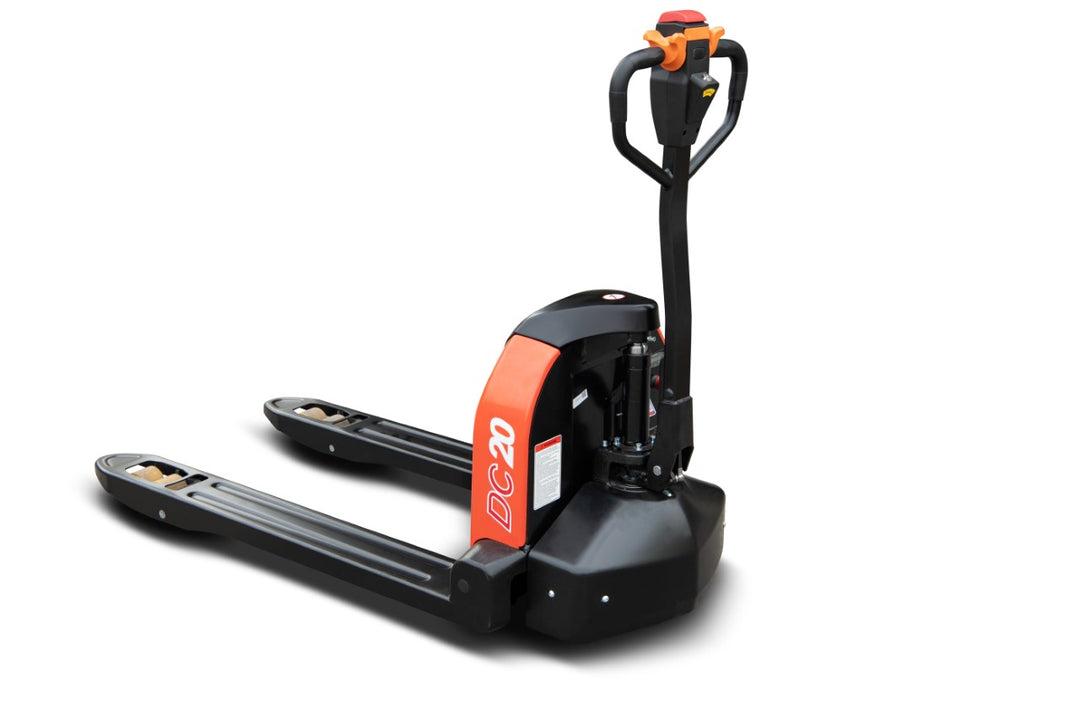

The CBD15/20-YZ Electric Pallet Truck is a compact 1.5–2 ton walkie electric pallet truck designed for efficient pallet transportation in warehouses, logistics centers, manufacturing facilities, retail stores, and other space-limited environments. Available in 1,500 kg and 2,000 kg load capacities, the CBD15/20-YZ combines a lightweight structure, flexible maneuverability, and reliable electric performance for everyday material handling.
Designed with a compact body and a small turning radius, this walkie electric pallet truck is particularly suitable for narrow aisles and confined working areas. Its low service weight makes the truck easy to maneuver, while the minimum fork lowered height of approximately 77 mm allows efficient handling of standard double-face pallets.
Key Features
1.5–2 Ton Load Capacity
The CBD15/20-YZ Electric Pallet Truck is available in 1.5-ton and 2-ton configurations, providing a practical solution for different warehouse handling requirements.
- CBD15-YZ: 1,500 kg
- CBD20-YZ: 2,000 kg
- Load center: 600 mm
The truck is suitable for pallet transportation, warehouse replenishment, production-line material supply, loading and unloading, and internal logistics operations.
Portable LiFePO₄ Lithium Battery
The CBD15/20-YZ can be equipped with a portable lithium iron phosphate (LiFePO₄) battery pack. The removable battery design allows quick and convenient battery replacement while supporting efficient daily operation.
Key benefits include:
- Fast charging
- Long battery service life
- Maintenance-free operation
- Convenient battery replacement
- Reduced charging downtime
Lead-acid battery configurations are also available for applications requiring a conventional battery solution.
Compact and Lightweight Design
The compact electric pallet truck features a lightweight chassis and small turning radius, allowing flexible operation in narrow warehouse aisles and confined areas.
With a service weight of approximately 150 kg with the lithium battery, the CBD15/20-YZ is easy to maneuver and transport. Its compact structure makes it suitable for small warehouses, workshops, retail backrooms, and other space-limited applications.
Low Fork Height for Double-Face Pallets
The minimum fork lowered height is approximately 77 mm, allowing the truck to access and transport common double-face pallets efficiently.
Available fork configurations include:
- Fork length: 1150 / 1200 mm
- Fork width: 155 mm
- Fork thickness: 55 mm
- Outside fork width: 550 / 685 mm
This provides flexibility for different pallet sizes and warehouse handling requirements.
Multifunction Ergonomic Tiller
The multifunction tiller handle integrates key operating functions into a convenient control system.
Standard features include:
- Upright travel button
- Turtle-speed button
- Travel control
- Electric lifting control
- Ergonomic operating handle
The turtle-speed function allows operators to reduce travel speed when maneuvering in narrow or busy areas, while the upright travel button provides greater flexibility in confined spaces.
Reliable Electric Drive System
Depending on the configuration, the CBD15/20-YZ uses a DC or BLDC drive motor.
The CBD15-YZ is equipped with a 0.75 kW DC drive motor, while the CBD20-YZ is available with a 0.9 kW DC motor or 0.9 kW BLDC motor. The brushless BLDC configuration helps provide efficient and maintenance-friendly drive performance.
The maximum travel speed reaches approximately 4.0 km/h when loaded and 4.5 km/h when unloaded, providing efficient transportation for daily warehouse operations.
Durable Hinged Metal Cover
The folding metal cover provides a robust protective structure while making internal components easier to access during inspection and maintenance.
This practical design helps improve service convenience while protecting important electrical components during everyday operation.
Optional Stabilizing Wheels
An optional balance wheel configuration can be added to improve vehicle stability during operation. This provides additional flexibility for applications where smoother and more stable driving performance is required.

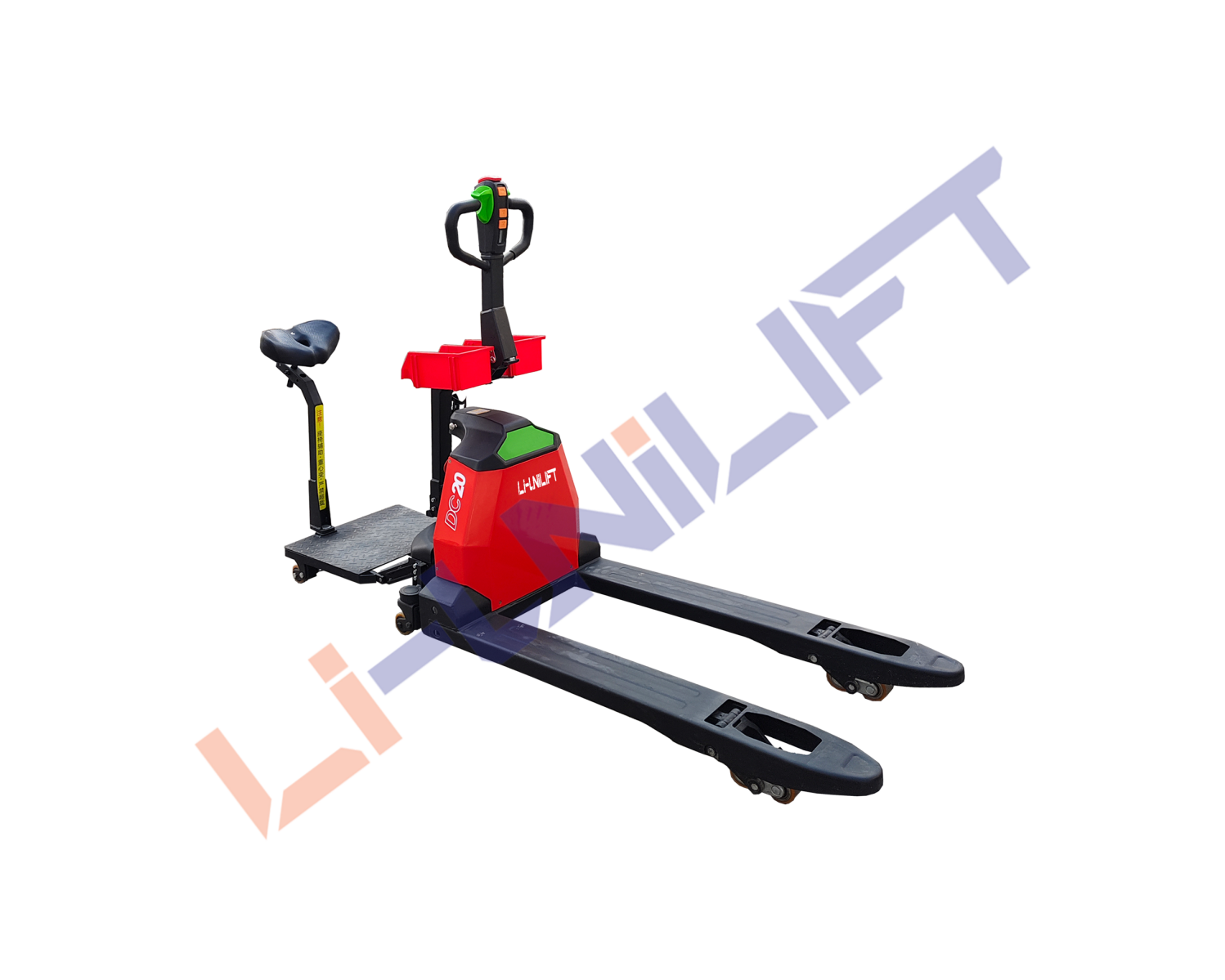

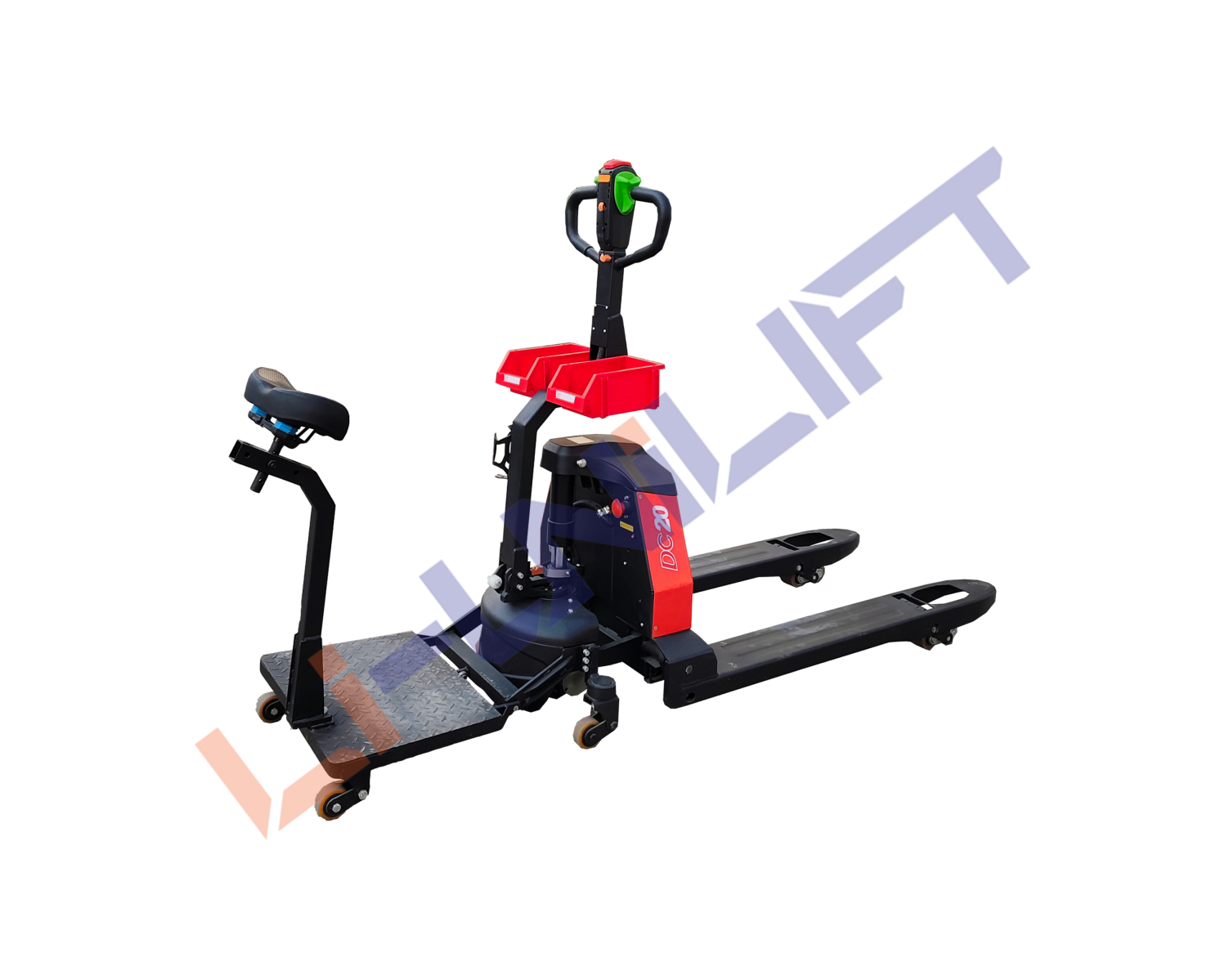

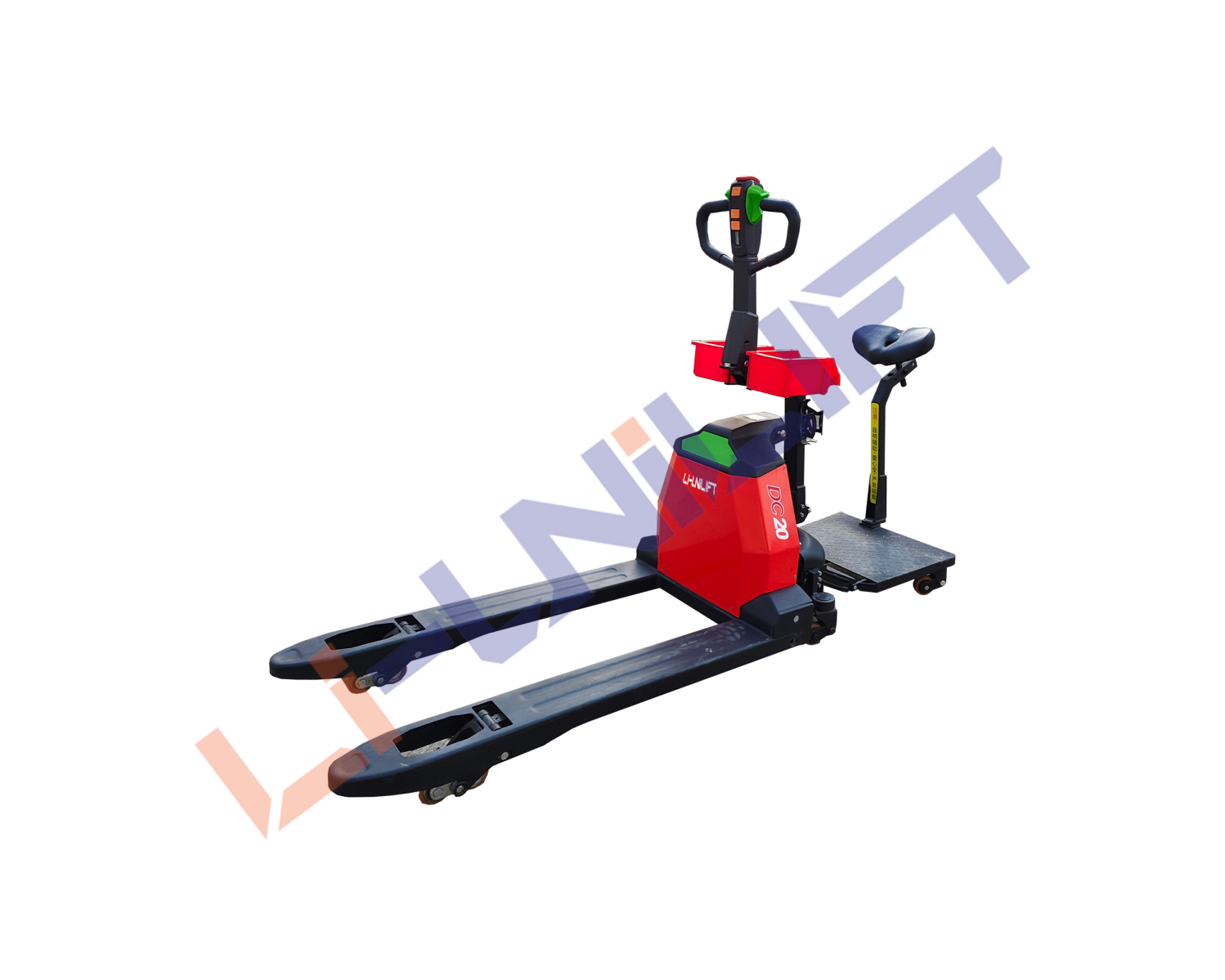

Optional Stand-On Platform and Seat
For applications involving longer transportation distances, the CBD15/20-YZ can be configured with a folding stand-on platform. A seat option is also available, providing additional operator comfort for specific operating requirements.
This flexible configuration allows the pallet truck to adapt to different warehouse transportation conditions.
Technical Specifications
| Feature | Unit | |||
| Load capacity | kg | 1500 | 2000 | 2000 |
| Wheels type | PU | |||
| Wheel quantity Driving wheel/Bearing wheel | 1/4 | |||
| Outside width between forks | mm | 550/685 | ||
| Inside width between forks | mm | 250/375 | ||
| Fork length | mm | 1150/1200 | ||
| Overall length | mm | 2251/2301 | ||
| Overall width | mm | 560/685 | ||
| Travel speed,laden/unladen | km/h | 4/4.5 | ||
| Gradeability,laden/unladen | % | 8/20 | ||
| Drive control type | DC | DC | BLDC | |
Typical Applications
The CBD15/20-YZ Walkie Electric Pallet Truck is suitable for a wide range of material handling environments:
Warehouses
Efficiently move palletized goods between storage, picking, and dispatch areas.
Logistics Centers
Support frequent short- and medium-distance pallet transportation and loading operations.
Manufacturing Facilities
Transport raw materials, components, and finished products between production lines and storage areas.
Retail and Supermarkets
The compact design makes the truck suitable for replenishment operations in backrooms and confined storage areas.
Narrow Aisle Operations
The small turning radius and lightweight structure provide flexible maneuverability in space-limited working environments.
Loading and Unloading
The low fork height and compact body make it convenient for pallet loading and unloading operations.
Why Choose the CBD15/20-YZ?
The CBD15/20-YZ Electric Pallet Truck combines 1.5–2 ton load capacity, portable LiFePO₄ battery technology, compact dimensions, lightweight construction, low 77 mm fork height, multifunction controls, and reliable electric drive performance. With optional balance wheels, a folding stand-on platform, and seat configuration, it can be adapted to different warehouse transportation requirements.
Designed for comfortable, energy-efficient, stable, and reliable material handling, the CBD15/20-YZ provides a flexible electric pallet truck solution for warehouses and businesses looking to improve pallet transportation efficiency while reducing operator effort.
