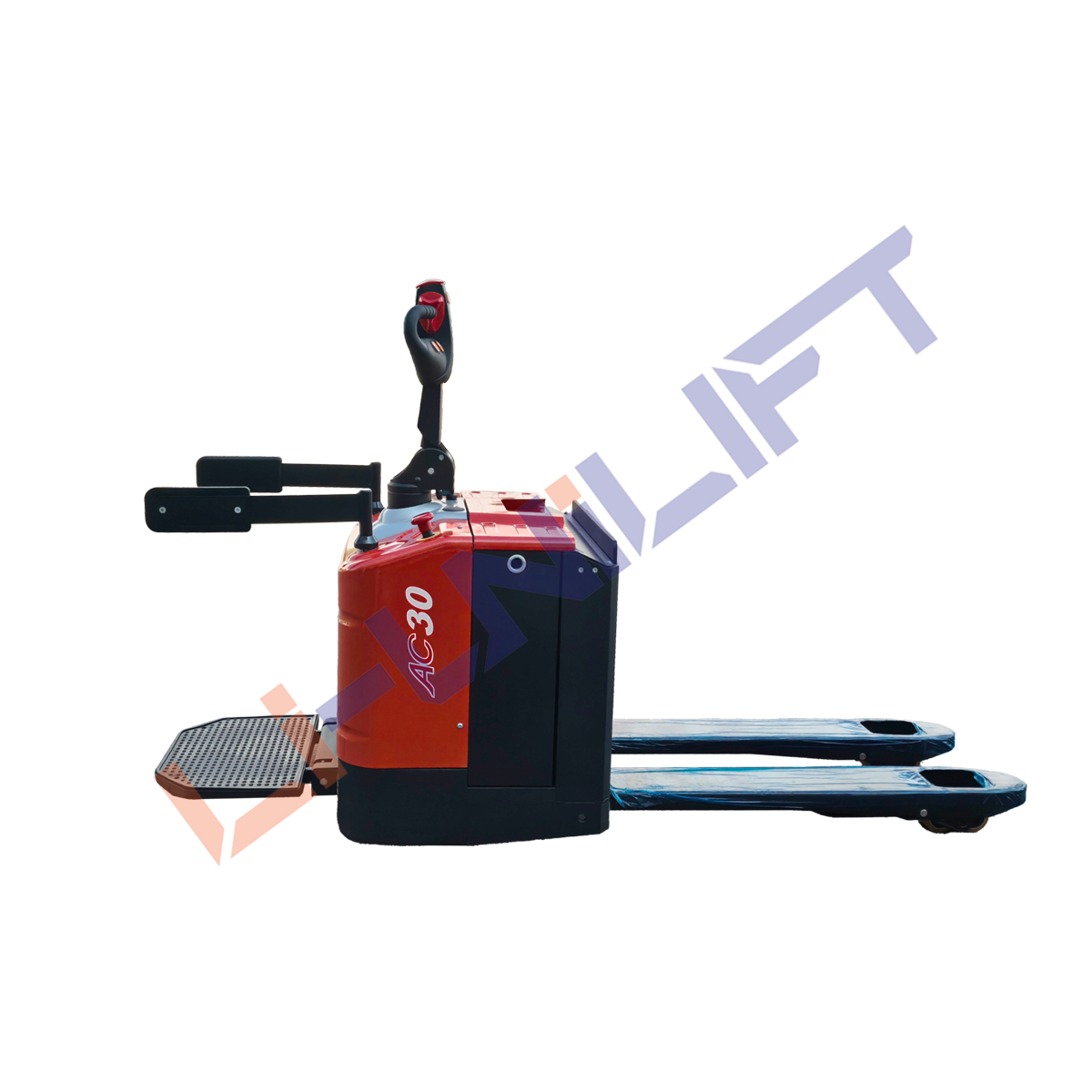

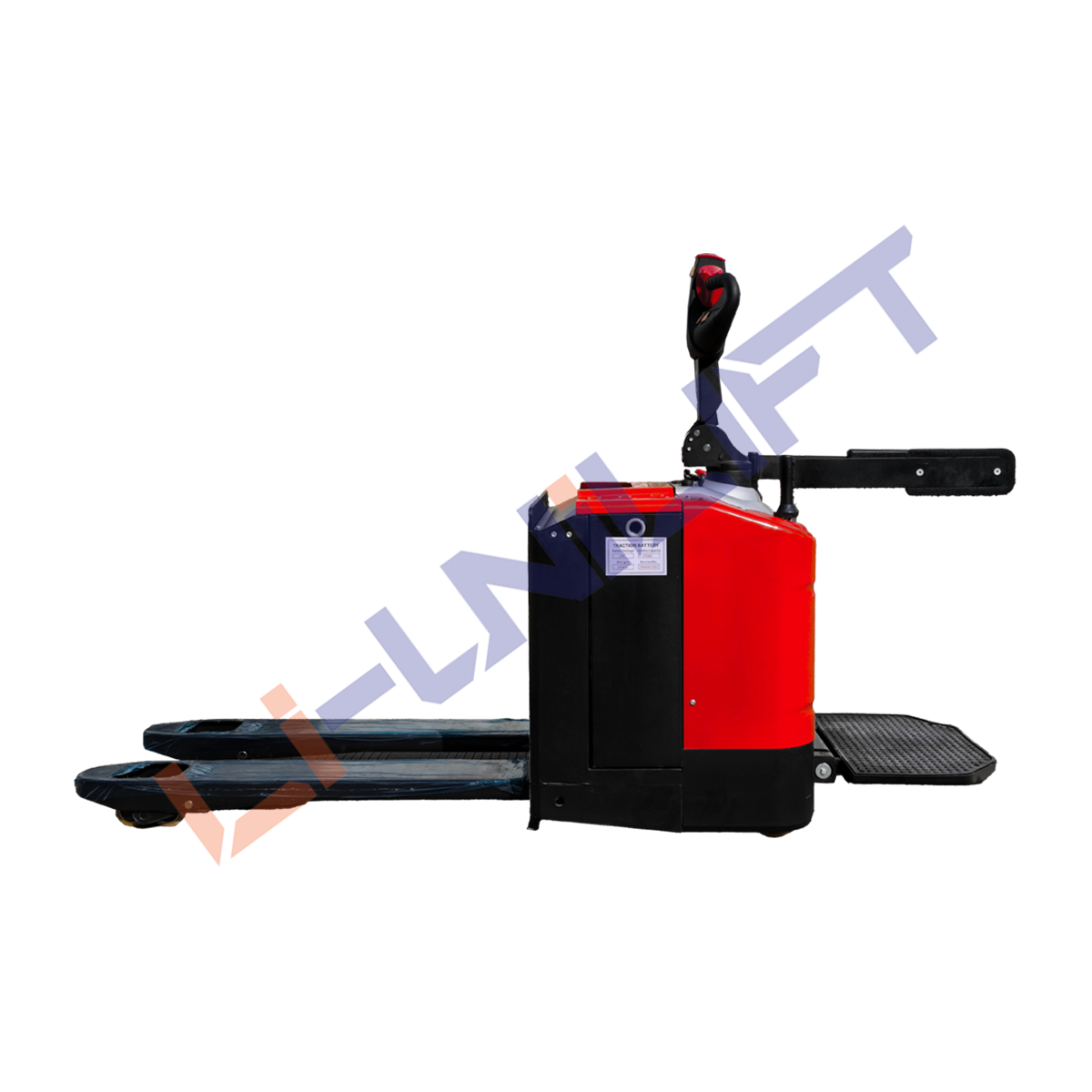

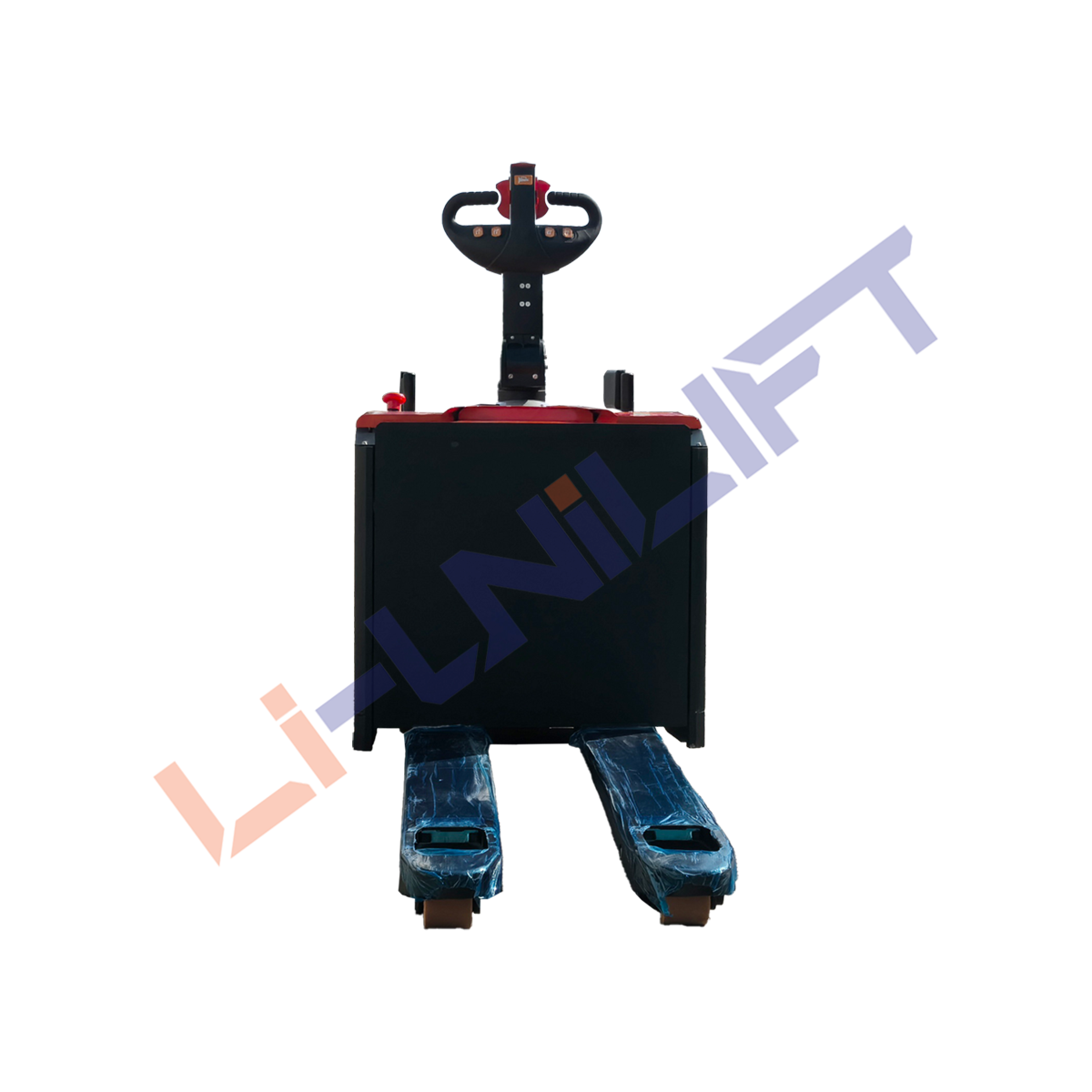

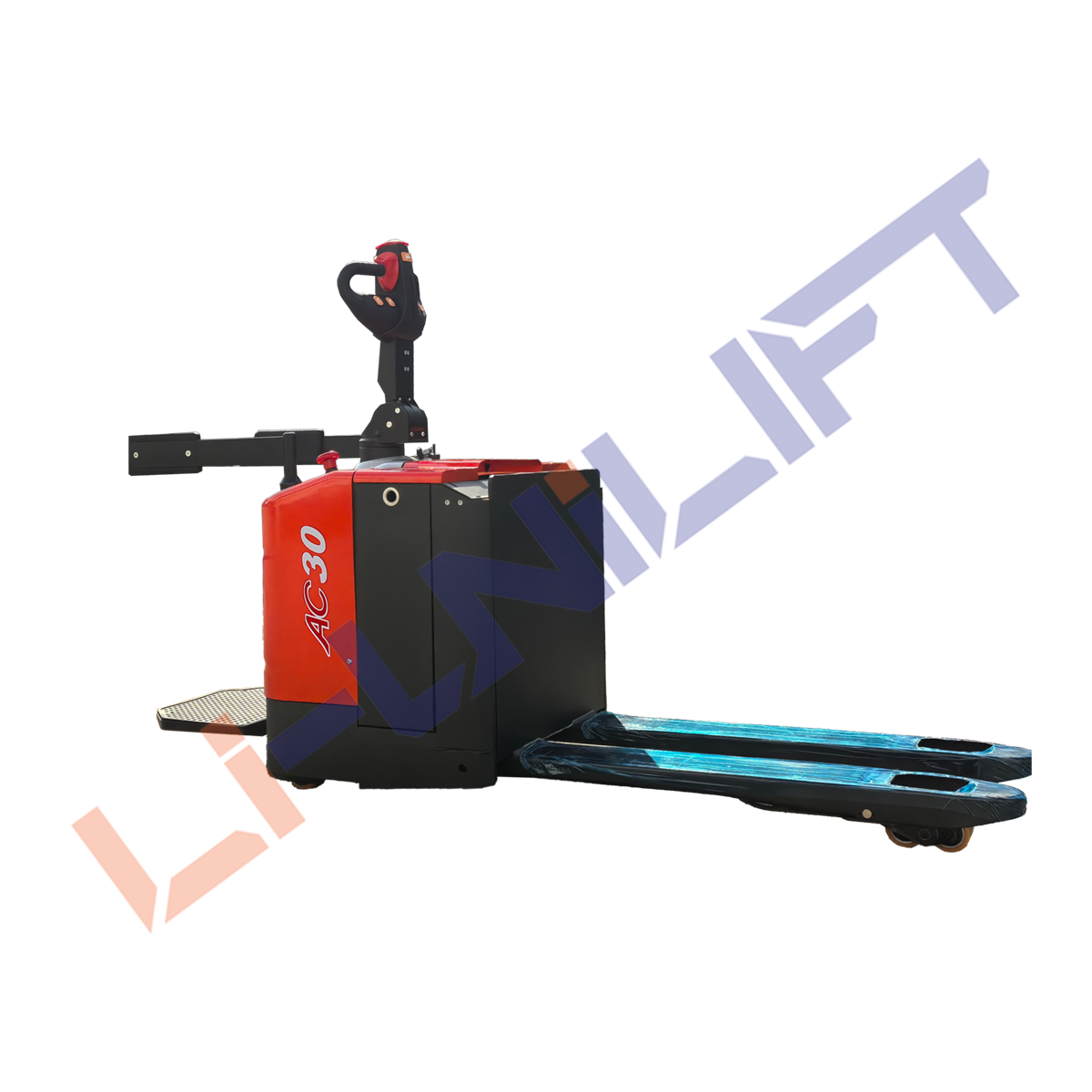

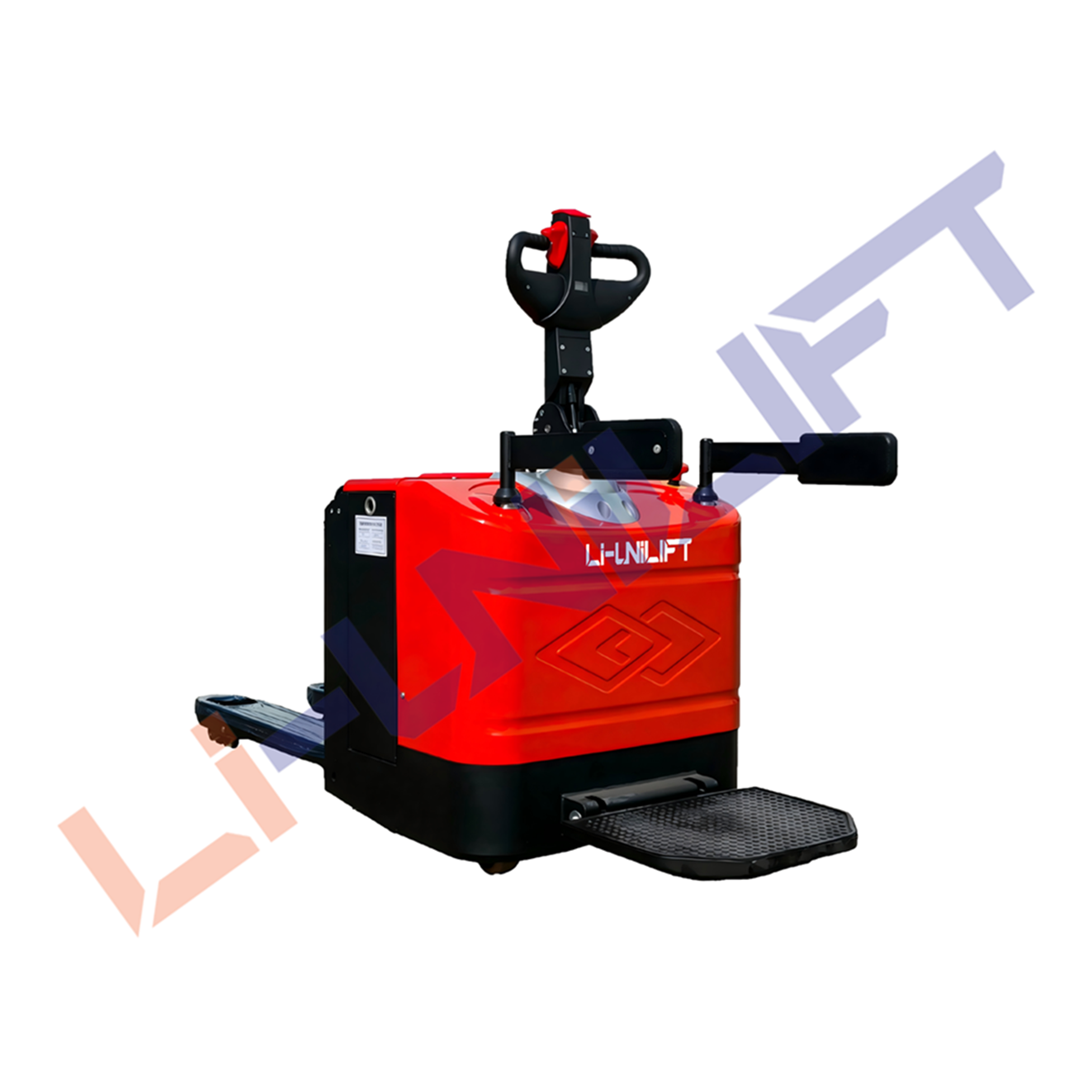

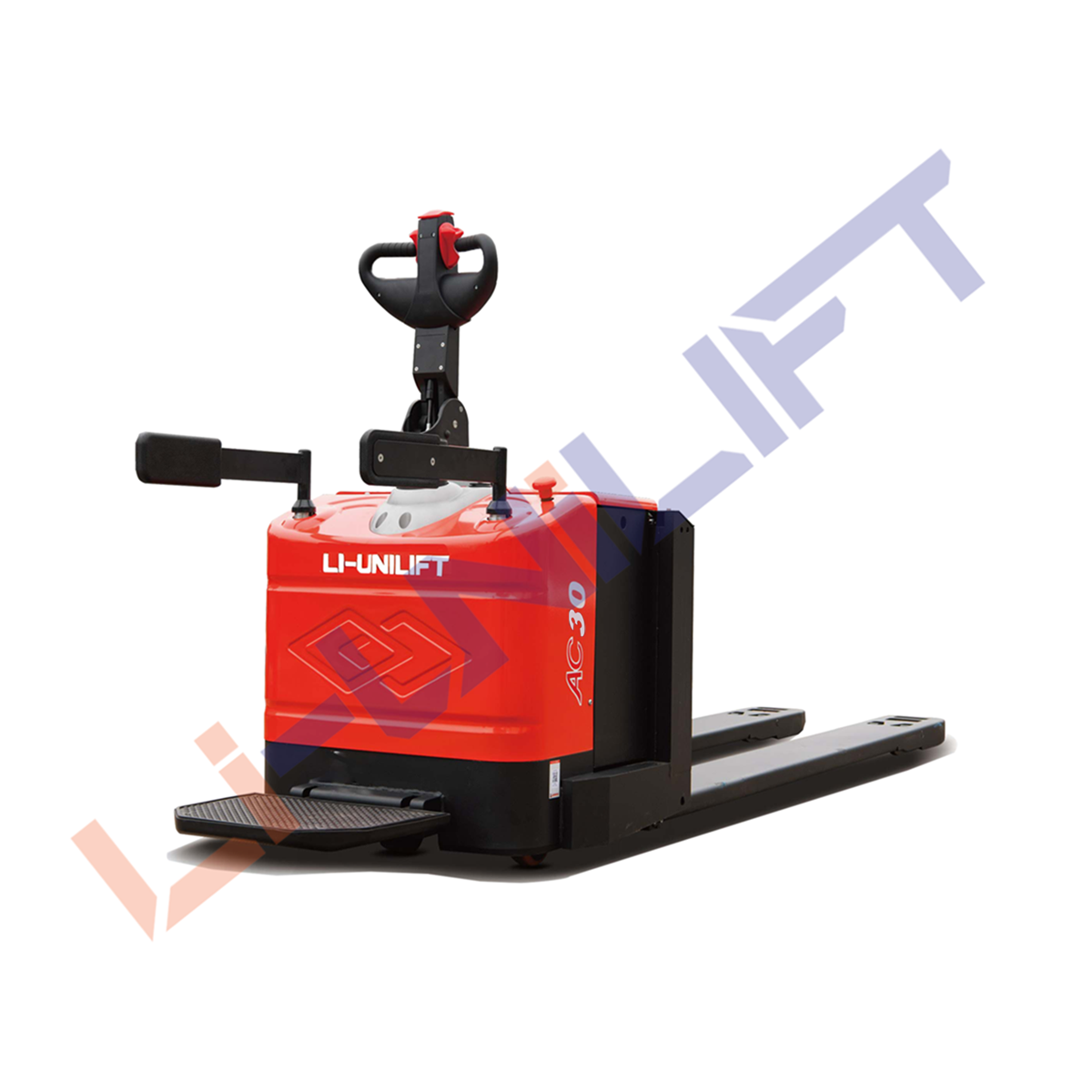

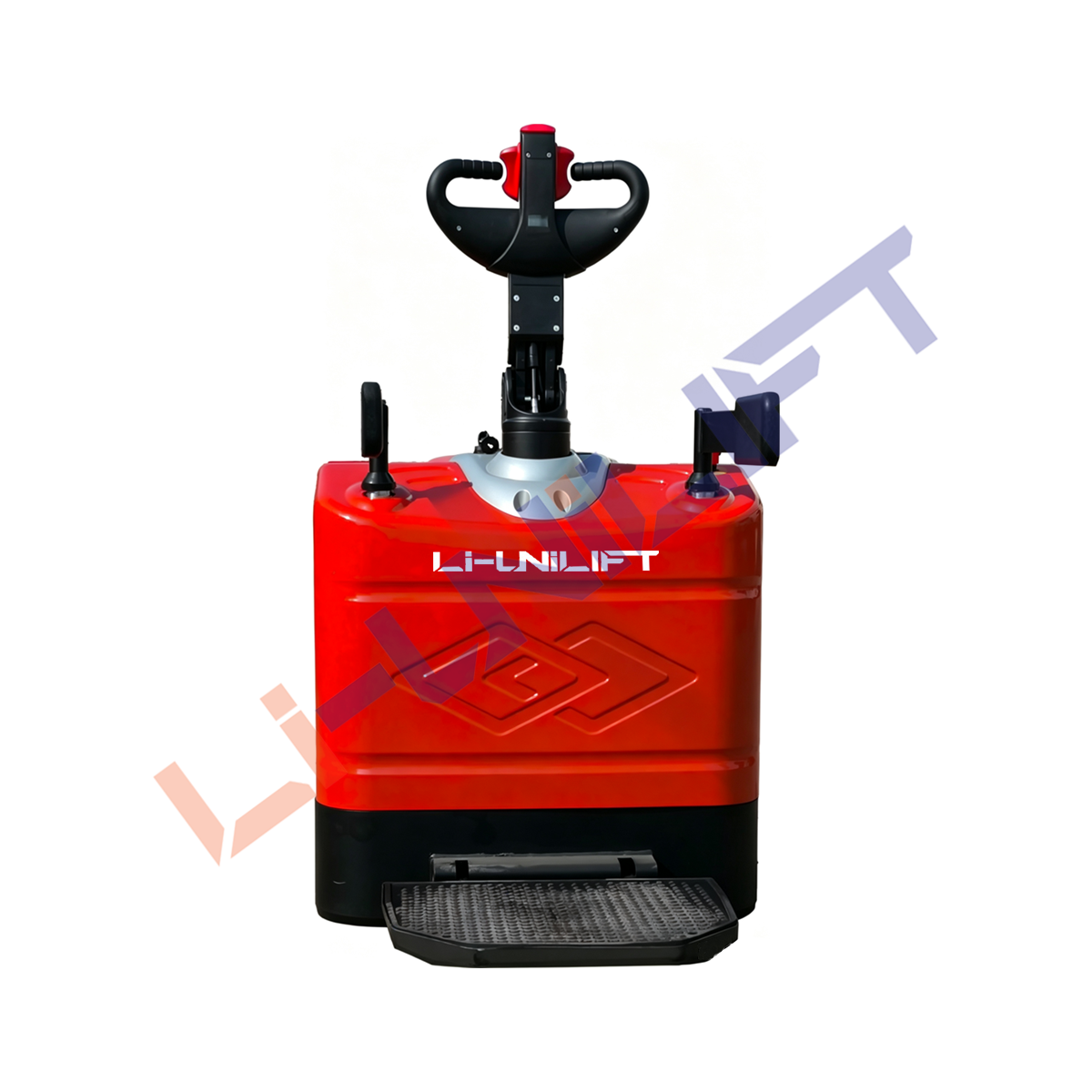

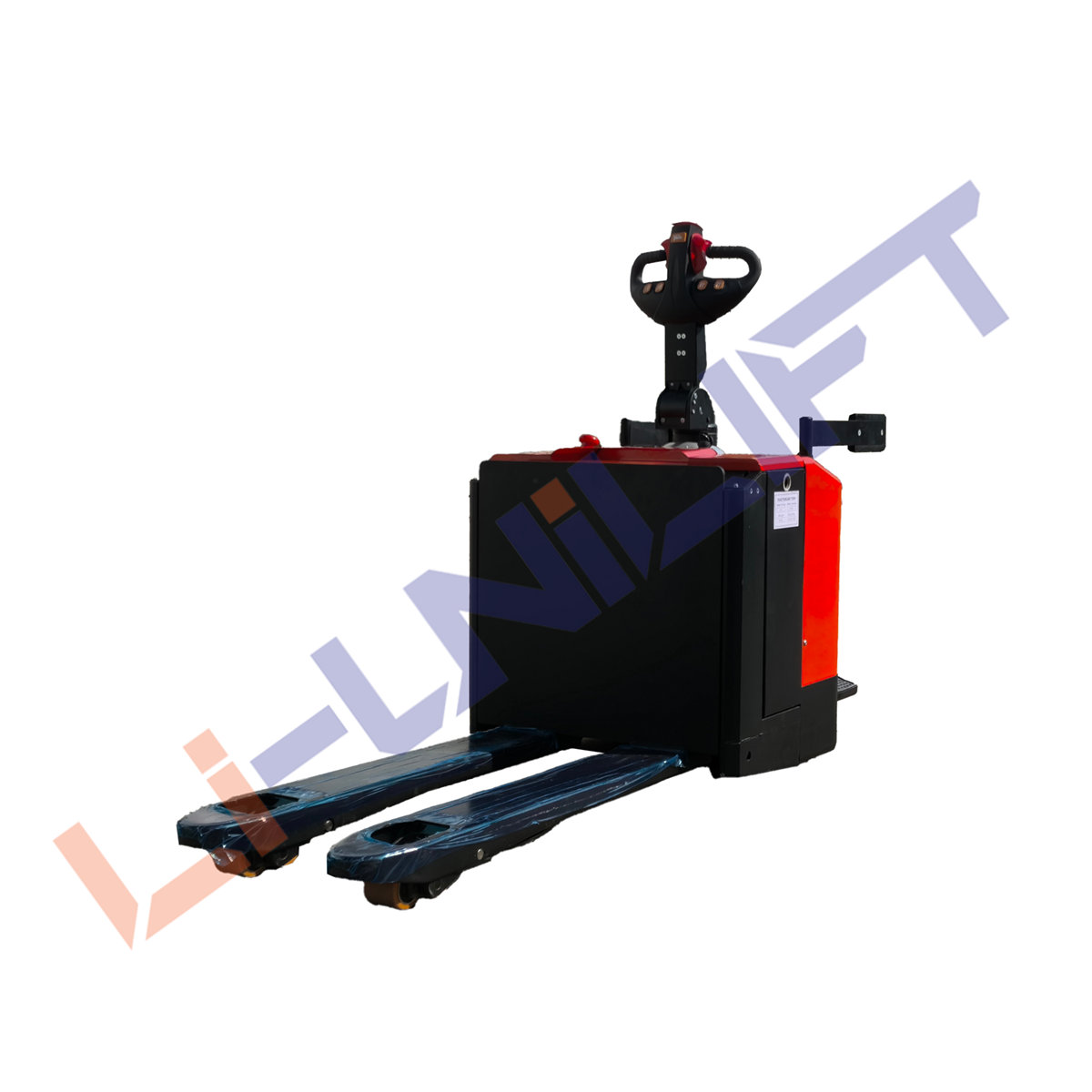

CBD Series Stand‑on AC‑Drive Electric Pallet Truck

Smart Lifting, Easy Moving — LI‑UNILIFT

High‑throughput distribution sites require powerful stand‑on pallet trucks that blend assisted steering, brushless AC propulsion and intelligent safety logic. The CBD20/25/30‑460 stand‑on electric pallet truck covers 2000 kg, 2500 kg and 3000 kg load capacities, built for intensive multi‑shift material‑handling workflows inside warehouses and logistics hubs.

Resilient Powertrain And Patent‑Protected Running Structure

The CBD20/25/30‑460 is equipped with a patent‑designed floating drive‑unit mechanism. This floating structure buffers ground surface impacts, lessens shock transferred to core motor and controller assemblies, prolonging component service life when travelling over uneven concrete warehouse floors.

Its brushless AC drive motor eliminates carbon‑brush wear points, removing recurring brush‑replacement work and lowering long‑term fleet maintenance burden. The AC controller delivers abundant torque while implementing multiple layers of automatic protection against overload, overheating and electrical faults.

Side‑pull battery layout forms one key design highlight. The battery pack can be pulled out laterally without heavy lifting or full teardown of surrounding housings, speeding‑up battery swapping for round‑the‑clock multi‑shift operations. Large‑capacity 24V‑270Ah battery provides ample energy reserve for continuous heavy‑duty transport cycles.

Assisted Control And Intelligent Safety For High‑Intensity Operations

Every handling feature of the CBD20/25/30‑460 is refined to reduce operator fatigue and raise onsite safety standards during extended stand‑on working shifts.

Electronic power steering delivers light‑weight, low‑noise steering feedback. Operators complete direction changes with minimal physical force, which greatly eases strain during repeated turning manoeuvres in busy storage zones.

An integrated curve automatic deceleration function enhances dynamic safety. The system actively cuts travelling speed while negotiating bends, suppressing cargo sway and lowering the risk of tip‑over when carrying heavy payloads. Standard lifting limit switch prevents over‑travel during lifting sequences, protecting hydraulic assemblies from overload damage and saving battery energy.

Operators can toggle between retracted and deployed pedal configurations. Retracting the pedal shortens overall vehicle length and turning radius for navigating tighter aisles, while deploying the pedal delivers comfortable stand‑on riding experience for long‑distance transport routes. Heavy‑duty PU drive, balance and bearing wheels sustain stable rolling performance under maximum rated load.

Broad‑Range Load Capacity For Heavy‑Duty Intralogistics

Offered in three capacity variants of 2000 kg, 2500 kg and 3000 kg, the CBD20/25/30‑460 fits heavy‑load scenarios such as large‑scale distribution centres, manufacturing production lines, wholesale warehousing and high‑volume cross‑dock terminals.

Multiple fork width and fork‑length selections adapt the truck to common global pallet dimensions. Travel, lifting and lowering speeds are carefully calibrated to balance high throughput and operational safety. The side‑access battery design simplifies rotation of spare battery packs for non‑stop multi‑shift workflows. Switchable pedal states grant operational flexibility between tight‑aisle stacking and long‑haul pallet transit tasks.

Service‑Optimised Layout To Lower Fleet Running Costs

LI‑UNILIFT builds service‑focused engineering into every material‑handling product, and the CBD20/25/30‑460 fully reflects this design philosophy. Patent floating drive unit, side‑pull battery and modular electrical assemblies streamline inspection, fault diagnosis and component swap work for on‑site service technicians.

• Patent floating drive‑unit absorbs floor shocks to reduce wear on key powertrain components
• Side‑way pull‑out battery enables fast battery swap without extensive housing disassembly
• Brushless AC drive motor eliminates periodic carbon‑brush maintenance cycles
• Separately configured steering motor simplifies troubleshooting and individual part replacement

Advancing Intelligent Stand‑on Pallet Truck Systems For Heavy‑Load Logistics

Modern heavy‑duty intralogistics keeps raising requirements for assisted steering, active safety functions and rapid battery exchange for stand‑on pallet trucks. LI‑UNILIFT keeps developing practical technical innovations for high‑capacity AC‑powered stand‑on handling equipment. These developments cover floating drive‑unit shock‑absorption optimisation, electronic power‑steering tuning and curve‑deceleration safety‑logic refinement.

Beyond powertrain and safety upgrades, product engineering also prioritises operator‑friendly ergonomics, multi‑layer active safety safeguards and robust heavy‑load chassis construction. The R&D team continues exploring forward‑looking directions including real‑time dynamic stability monitoring and fleet‑level equipment status management for next‑generation large‑scale warehouse facilities.

Technical Specifications
