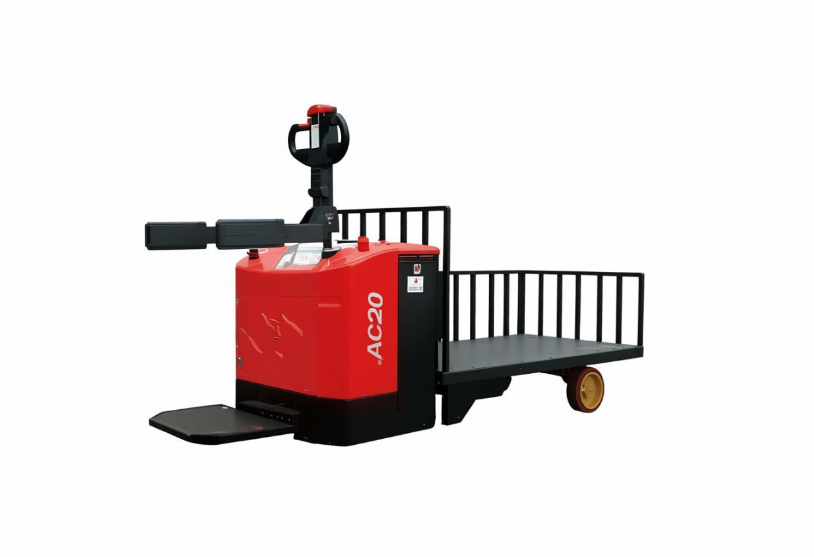

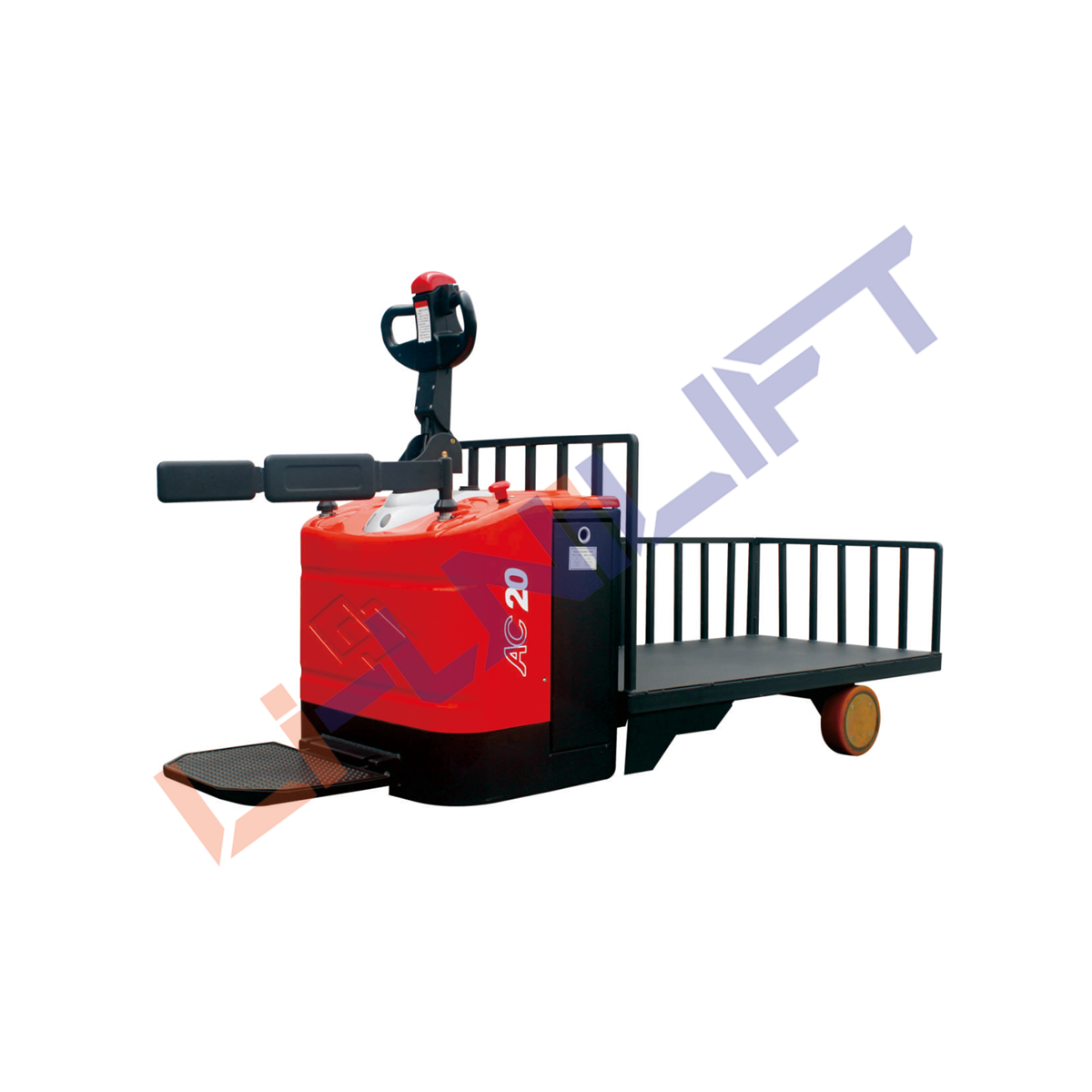

CBD Series Stand‑on AC‑Drive Platform Transport Truck

Smart Lifting, Easy Moving — LI‑UNILIFT

Flexible platform‑style stand‑on transport equipment is essential for facility‑wide material shuttling, batch goods distribution and customised intralogistics workflows. The CBD20/25‑460P stand‑on AC‑drive platform transport truck delivers 2000 kg and 2500 kg load‑handling capacity. It features electronic power steering, side‑pull battery access, curve auto‑deceleration and extensive custom‑build options to adapt to diverse factory and warehouse transport requirements.

Robust AC Powertrain With Low‑Effort Steering Architecture

The CBD20/25‑460P utilises maintenance‑free brushless AC drive motor. Carbon‑brush‑free propulsion eliminates periodic brush inspection and replacement work, lowering long‑term fleet maintenance costs for high‑frequency shift‑based operations.

Electronic power steering brings light‑weight, low‑noise directional control. Operators complete frequent turning movements with minimal physical exertion, effectively cutting operator fatigue over long working cycles. The proven ZAPI AC controller provides stepless speed modulation together with multi‑layer self‑protection logic against overload, overheating and electrical anomalies, delivering stable torque output under mixed loaded and empty states.

Adopting side‑way battery pull‑out layout, the battery pack can be slid out laterally without major housing disassembly. This design accelerates battery swapping procedures, supporting non‑stop multi‑shift operation through spare battery rotation. Standard configuration uses 24V‑270Ah lead‑acid battery, with optional lithium‑ion battery packs available for sites pursuing faster‑charging performance. Heavy‑duty polyurethane drive and bearing wheels ensure steady rolling performance on concrete warehouse floors.

Intelligent Safety Logic And Adaptable Platform Handling Experience

Every handling‑related design detail of the CBD20/25‑460P is optimised to boost driving safety and operational flexibility for stand‑on operators transporting bulk platform‑loaded goods.

Built‑in curve automatic deceleration improves dynamic travelling safety. When the truck enters turning manoeuvres, the system actively reduces travel speed to suppress cargo shift and mitigate tipping risks when carrying full payloads. The operator pedal supports retracted and deployed positions. Retracting the pedal shortens overall vehicle length and turning radius for navigating tighter work zones; deploying the pedal creates a complete stand‑on riding position for long‑distance cross‑zone material transport.

The integrated transport platform comes with protective guardrails to secure loose stacked goods during transit. The whole unit keeps noise output below 75 dB(A), creating a comfortable acoustic environment for indoor factory and warehouse operations. The platform‑based layout removes fork‑lifting functions and focuses purely on horizontal goods conveyance, making it ideal for moving containers, pallet‑less bulk stock and custom‑size cargo.

Highly Customisable Layout For Specialised Intralogistics Assignments

Available in 2000 kg and 2500 kg rated load versions, the CBD20/25‑460P fits broad‑ranging real‑world use‑cases including manufacturing intra‑factory material circulation, wholesale parts distribution, e‑commerce batch‑order transit and cross‑dock bulk‑goods transfer tasks.

This model stands out with rich personalised customisation possibilities. Customers can specify non‑standard platform dimensions: platform length ranging from 1000 mm to 1800 mm and platform width ranging from 660 mm to 1000 mm. Guardrail height and styling can also be adjusted to match cargo containment requirements. Operators can choose between standard lead‑acid power or optional lithium battery solutions according to charging infrastructure and shift intensity. Travel speed and gradient‑climbing performance are precisely calibrated to balance transport throughput and onsite workplace safety standards.

Streamlined Servicing To Optimise Fleet Total Ownership Cost

LI‑UNILIFT embeds service‑oriented engineering thinking across the full material‑handling product portfolio, and the CBD20/25‑460P fully embodies this design mindset. Brushless powertrain, side‑pull battery structure and modular electrical assemblies simplify inspection, fault localisation and component‑swap workflows for on‑site service technicians.

• Side‑pull battery structure enables quick battery removal and swap‑out without extensive teardown
• Brush‑free AC drive motor eliminates routine carbon‑brush maintenance cycles
• Trusted ZAPI AC controller supports convenient built‑in diagnostic routines for fault troubleshooting
• Modular platform and guardrail assemblies allow fast re‑configuration when custom‑spec adjustments are required

Advancing Custom‑Built Platform‑Type Stand‑on Transport Solutions

Custom‑spec platform transport vehicles are gaining greater importance for modern intralogistics that demands application‑tailored material‑handling hardware. LI‑UNILIFT keeps advancing practical technical refinements for AC‑powered stand‑on platform transport trucks. These development directions include electronic‑steering comfort tuning, curve‑automatic‑deceleration safety‑logic optimisation, side‑pull battery‑system refinement and flexible platform‑structure customisation capability expansion.

Beyond powertrain and safety‑system improvements, product engineering continues to prioritise operator‑centred ergonomics, multi‑layer active‑safety safeguards and heavy‑duty rigid platform construction. The R&D team keeps exploring forward‑looking possibilities, including load‑aware speed limitation and fleet‑wide equipment condition monitoring for future‑oriented production and warehouse facilities.

CBD20/25-460P Specifications
