Product Definition

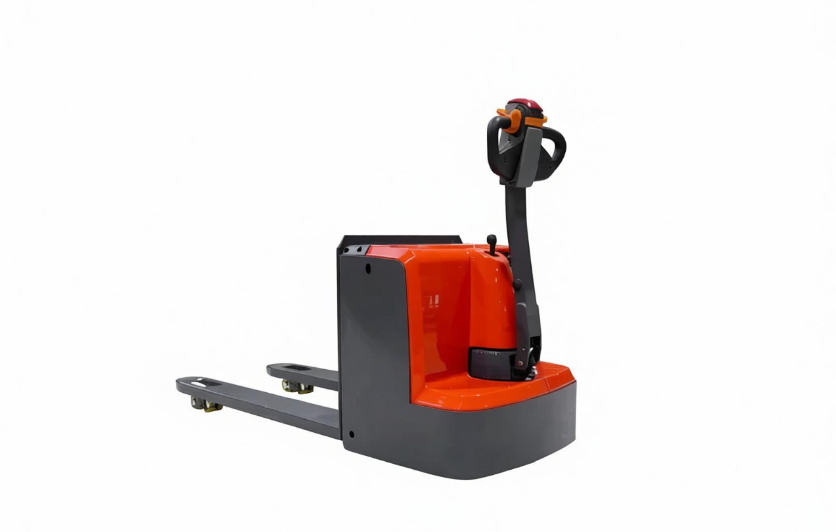

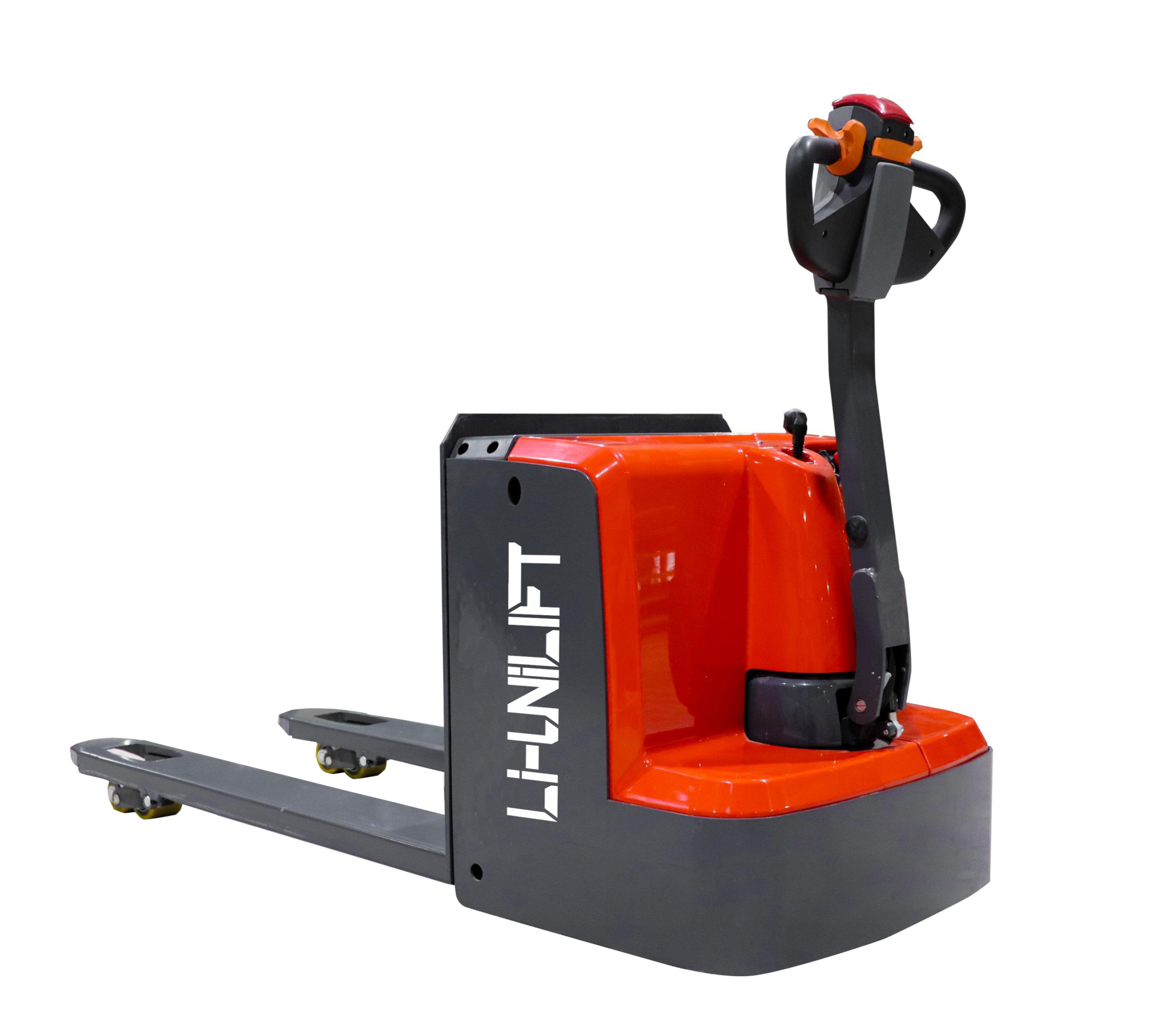

The CBD20-J Electric Pallet Truck is a 2 Ton Walkie Electric Pallet Truck designed for efficient horizontal transportation of palletized goods in warehouses, factories, logistics centers, and distribution facilities.
As a compact electric material handling solution, the CBD20-J uses a battery-powered drive system and electric lifting system to replace traditional manual pallet jacks, reducing operator workload and improving handling efficiency.
With a 2000kg rated load capacity, compact structure, and excellent maneuverability, the CBD20-J is suitable for daily pallet transportation tasks in medium-duty industrial environments.
Key Features of CBD20-J
2 Ton Load Capacity
The CBD20-J provides a rated capacity of 2000kg (2 Ton) with a 600mm load center, allowing it to handle standard industrial pallets and heavy warehouse materials.
Typical handling applications include:
- Pallet transportation
- Raw material movement
- Warehouse replenishment
- Production line supply
- Loading and unloading operations
Compact Walkie Design
The CBD20-J adopts a walkie-type operating design, allowing operators to control the truck through an ergonomic tiller handle.
Advantages:
- Small turning radius
- Flexible operation in narrow aisles
- Easy maneuvering around shelves and equipment
- Suitable for space-limited warehouses
The minimum outside turning radius is approximately 1490mm, making it suitable for compact working environments.
Electric Drive and Electric Lifting
The CBD20-J integrates:
- Electric traveling system
- Electric hydraulic lifting system
- Electronic control system
Compared with manual pallet trucks, it significantly reduces physical effort and improves productivity during frequent material movement.
The lifting height reaches approximately 200mm, allowing smooth pallet lifting and transportation.
Reliable DC Drive System
The CBD20-J uses a CURTIS DC controller system, providing stable control performance.
Benefits:
- Smooth acceleration
- Reliable operation
- Simple maintenance
- Good cost efficiency
It is designed for daily warehouse transportation where reliability and easy service are important.
Safety and Stability Design
The CBD20-J is equipped with safety features to improve operation reliability:
- Emergency reversing device
- Emergency stop switch
- Mechanical steering system
- Stable chassis structure
- Electric lifting limit function
The electric lifting limit function automatically stops lifting when reaching the preset limit, helping protect the hydraulic and electrical systems.
Lithium Battery Option
The CBD20-J supports lithium battery configuration options.
Lithium battery advantages:
- Faster charging
- Longer service life
- Maintenance-free operation
- Suitable for multi-shift applications
This makes it suitable for modern warehouses requiring high-frequency material movement.

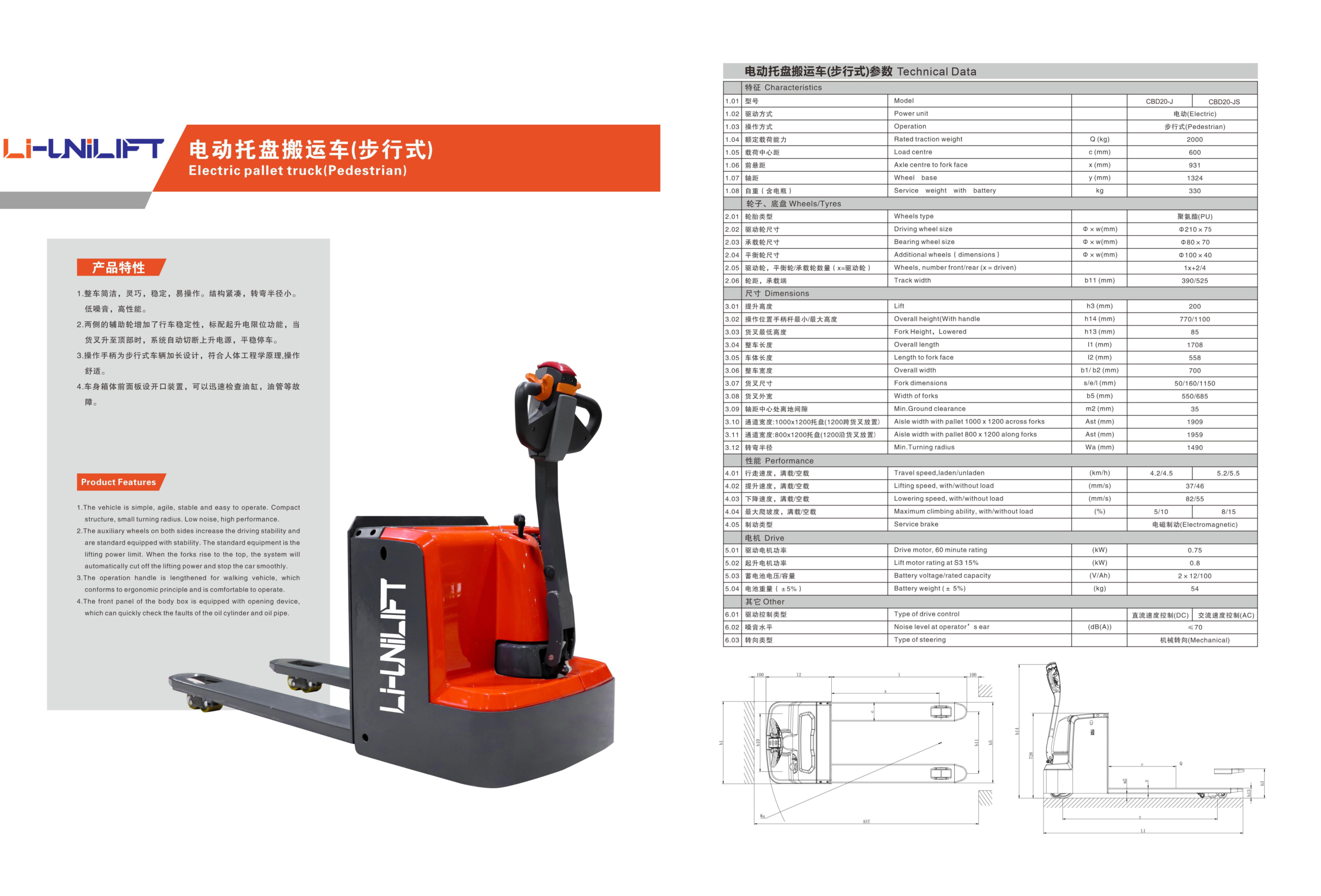

CBD20-J Specifications
| Specification | Details |
|---|---|
| Model | CBD20-J |
| Product Type | Walkie Electric Pallet Truck |
| Rated Capacity | 2000 kg |
| Load Center | 600 mm |
| Operation Type | Walking Type |
| Power Type | Battery Electric |
| Controller | CURTIS DC Controller |
| Lifting Height | 200 mm |
| Maximum Travel Speed (Loaded/Unloaded) | 4.2 / 4.5 km/h |
| Minimum Turning Radius | Approx. 1490 mm |
| Steering Type | Mechanical Steering |
| Battery Type | Lead-acid / Optional Lithium Battery |
| Brake System | Electromagnetic Brake |
| Fork Type | Standard Pallet Fork |
Application Areas
Warehouse & Distribution
Manufacturing Facilities
Retail and Logistics Operations
CBD20-J Advantages Compare Manual
| Feature | Manual Pallet Jack | CBD20-J Electric Pallet Truck |
|---|---|---|
| Driving Method | Manual pushing | Electric driving |
| Lifting Method | Manual hydraulic | Electric lifting |
| Load Capacity | Limited | 2000 kg |
| Operator Effort | High | Low |
| Handling Speed | Slow | Faster |
| Frequent Operation | Difficult | Suitable |
| Warehouse Efficiency | Moderate | Improved |
