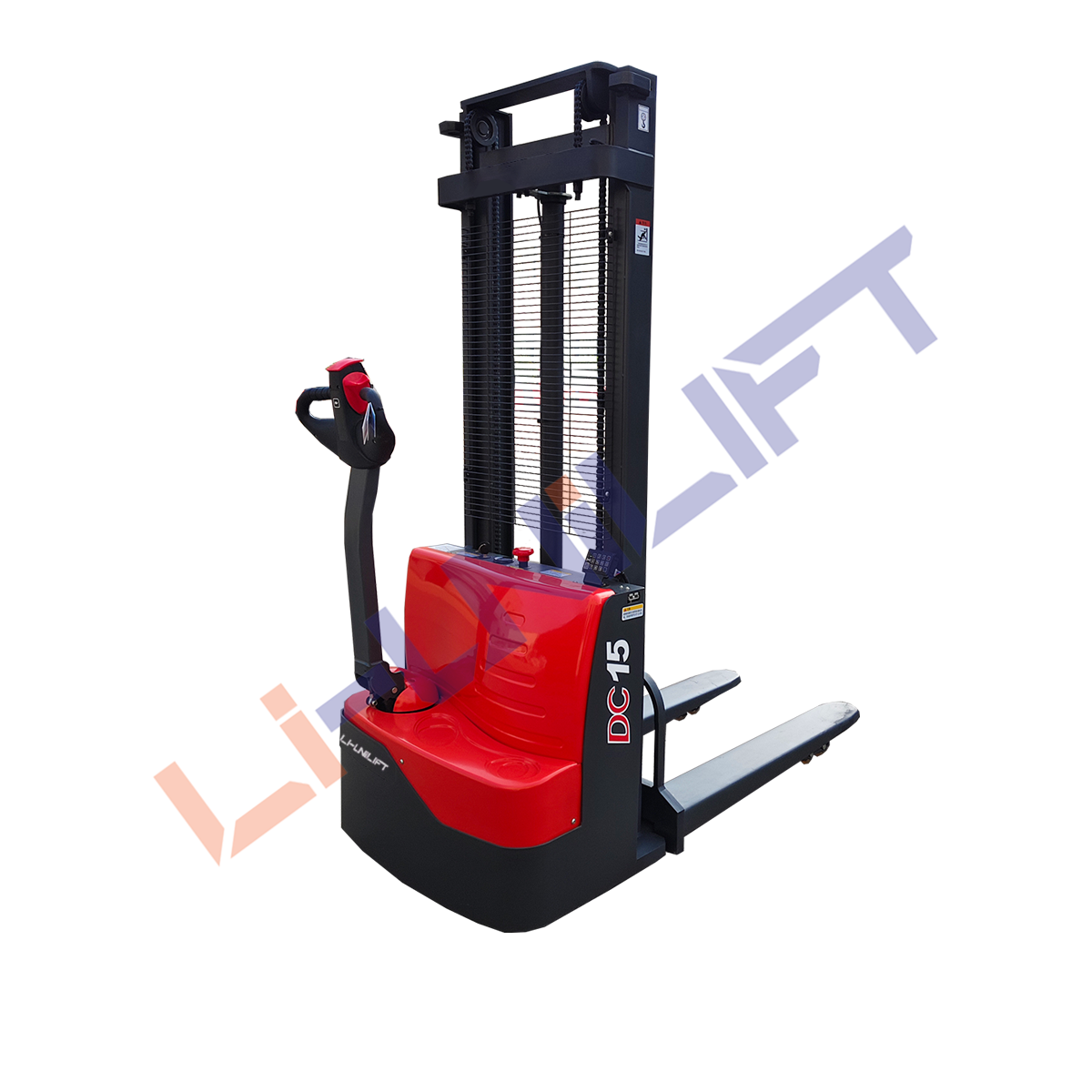

CDD Series Walkie Electric Pallet Stacker
High Reach, Effortless Material Handling — LI‑UNILIFT

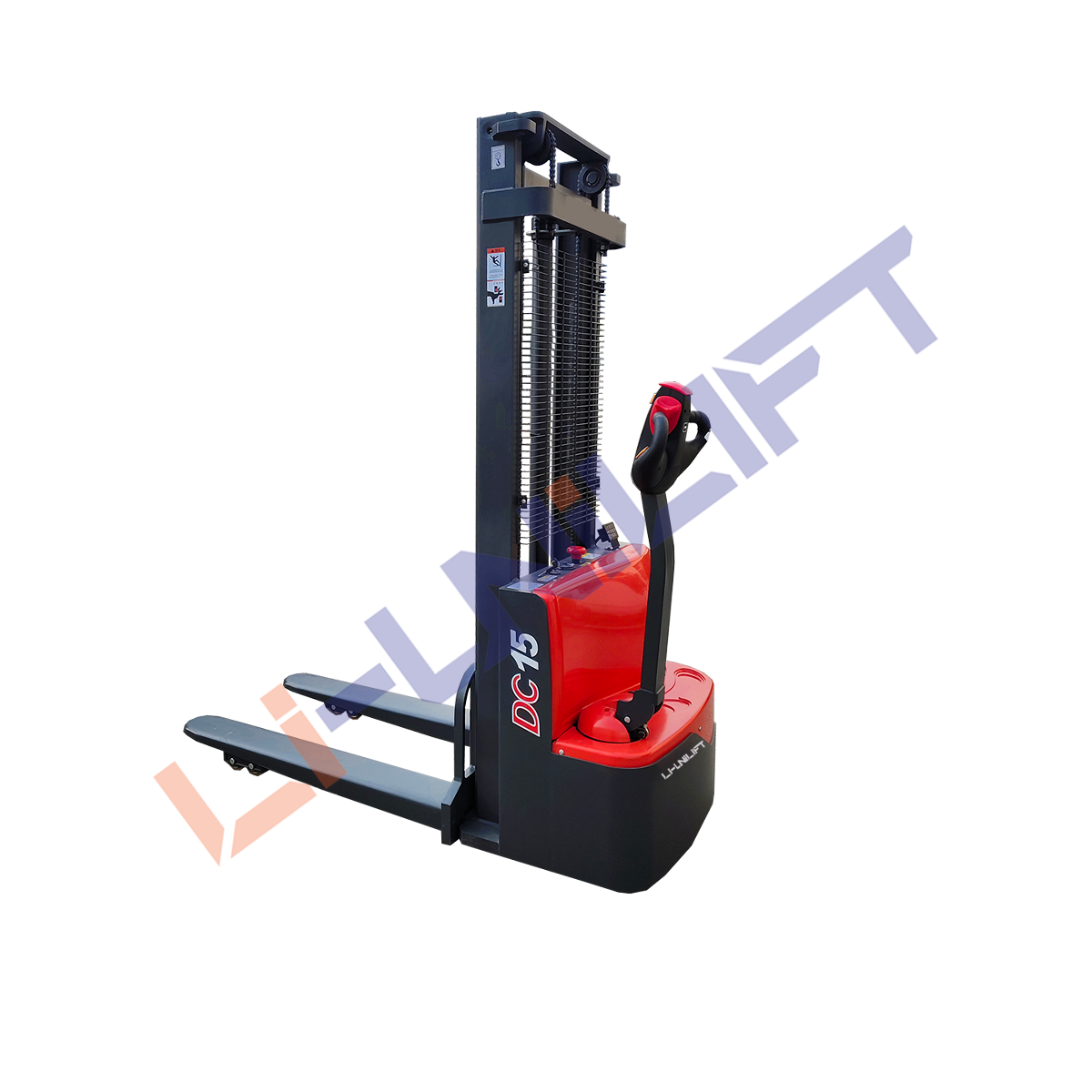

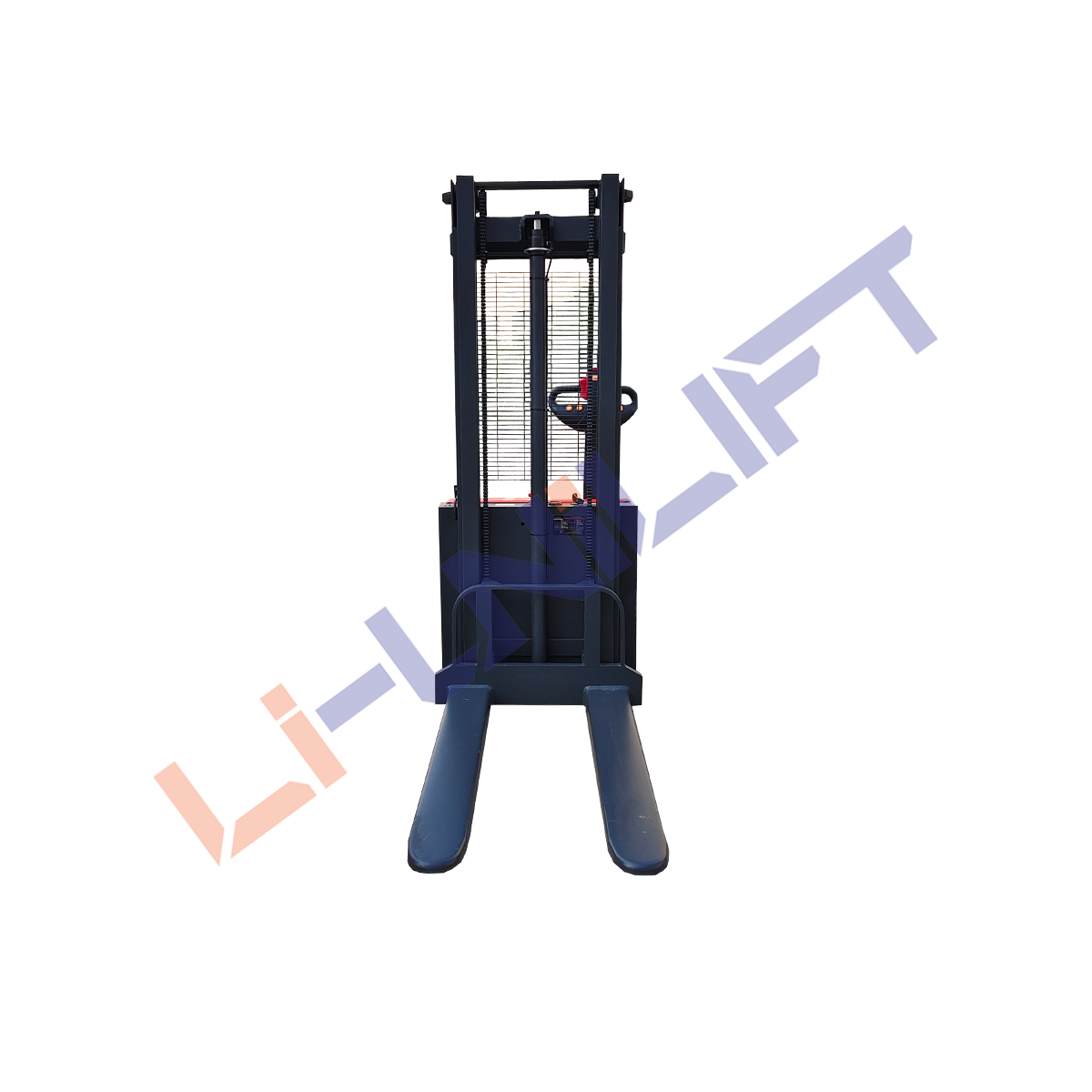

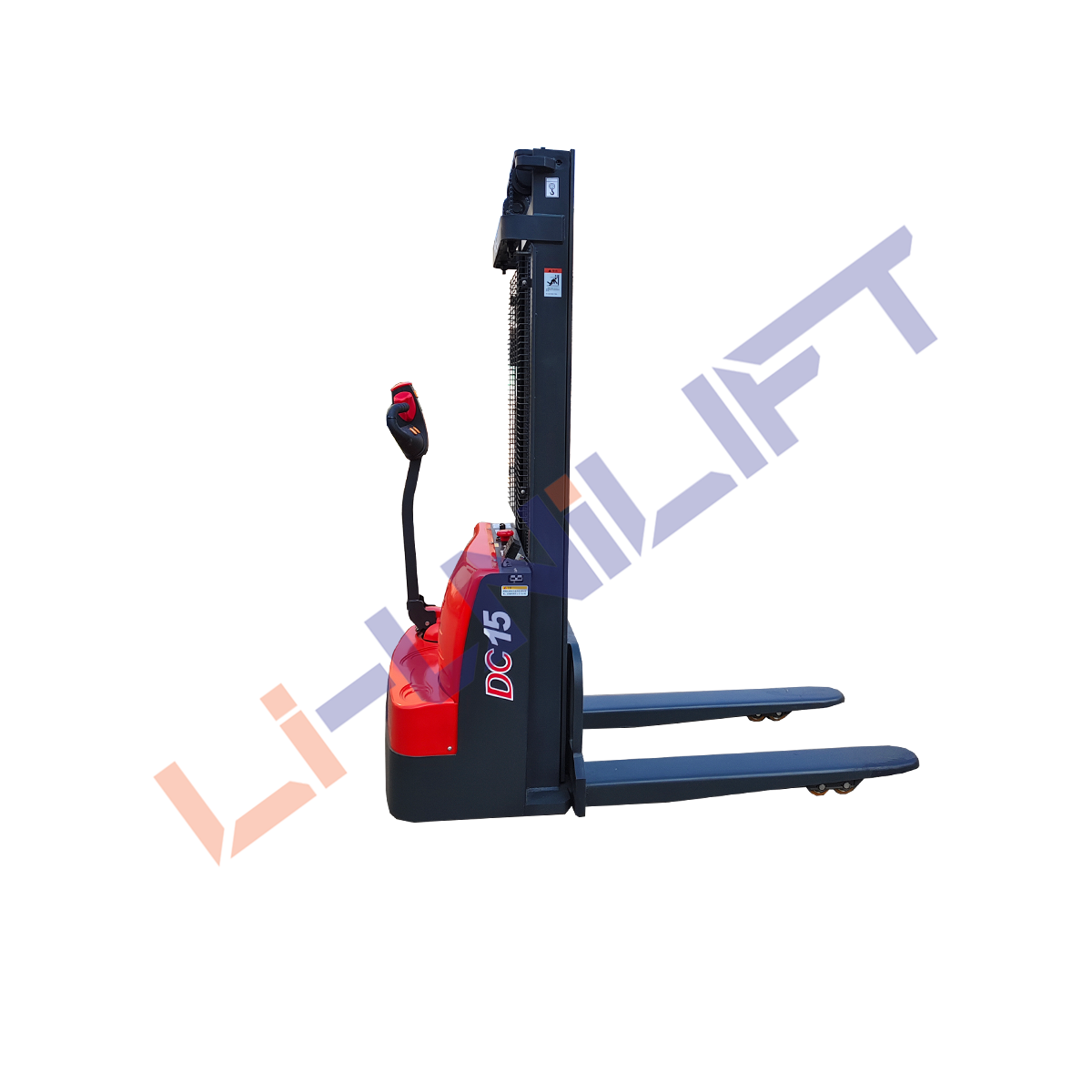

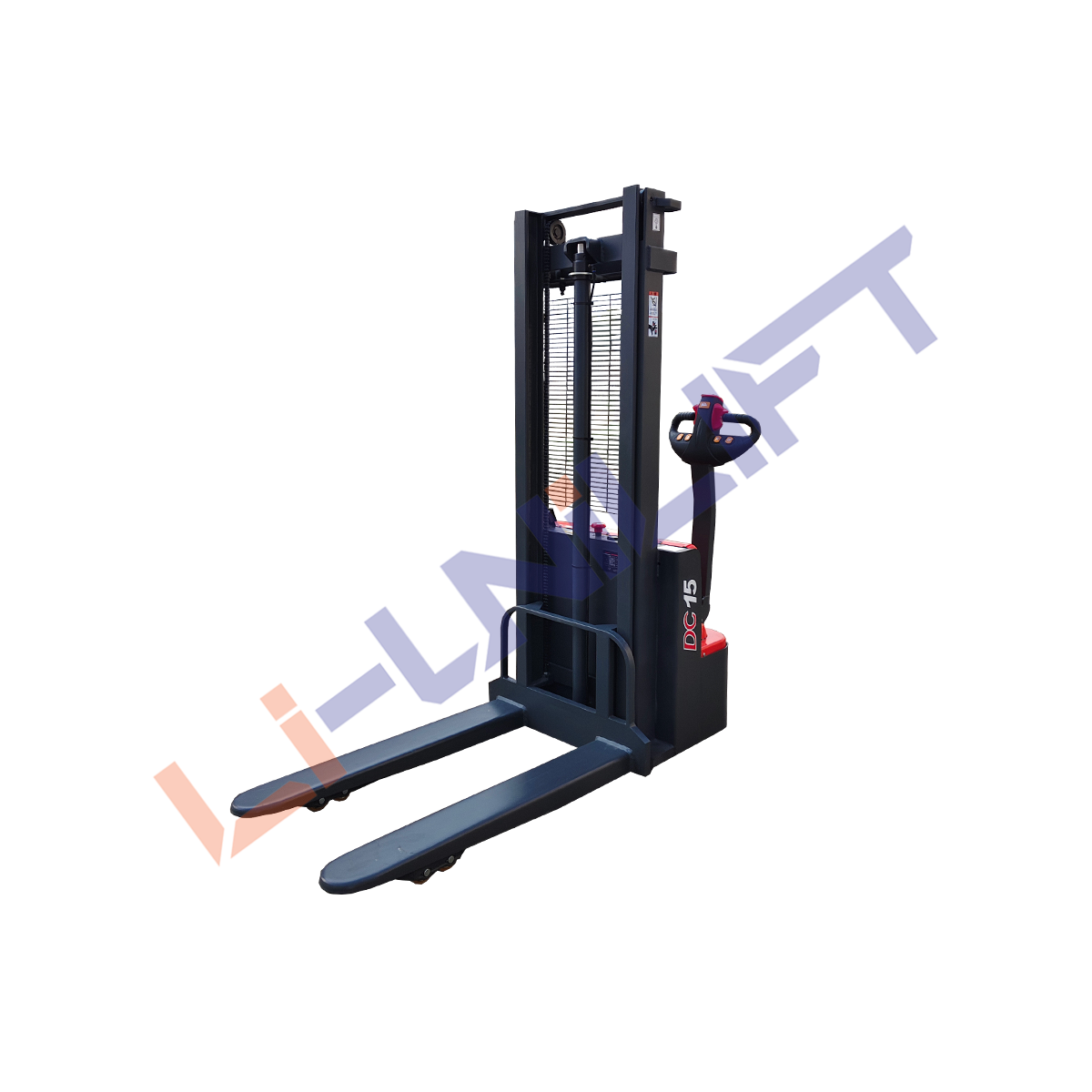

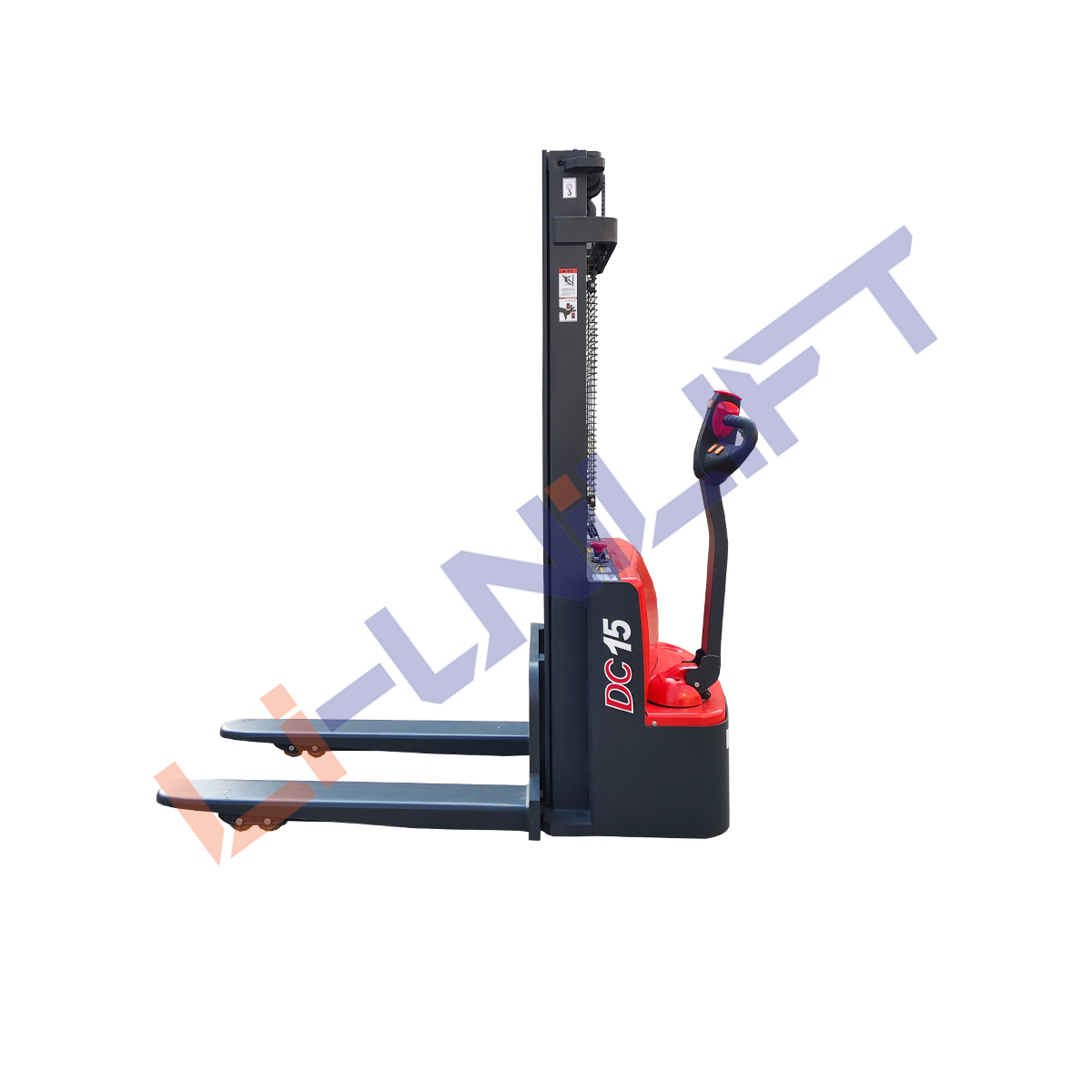

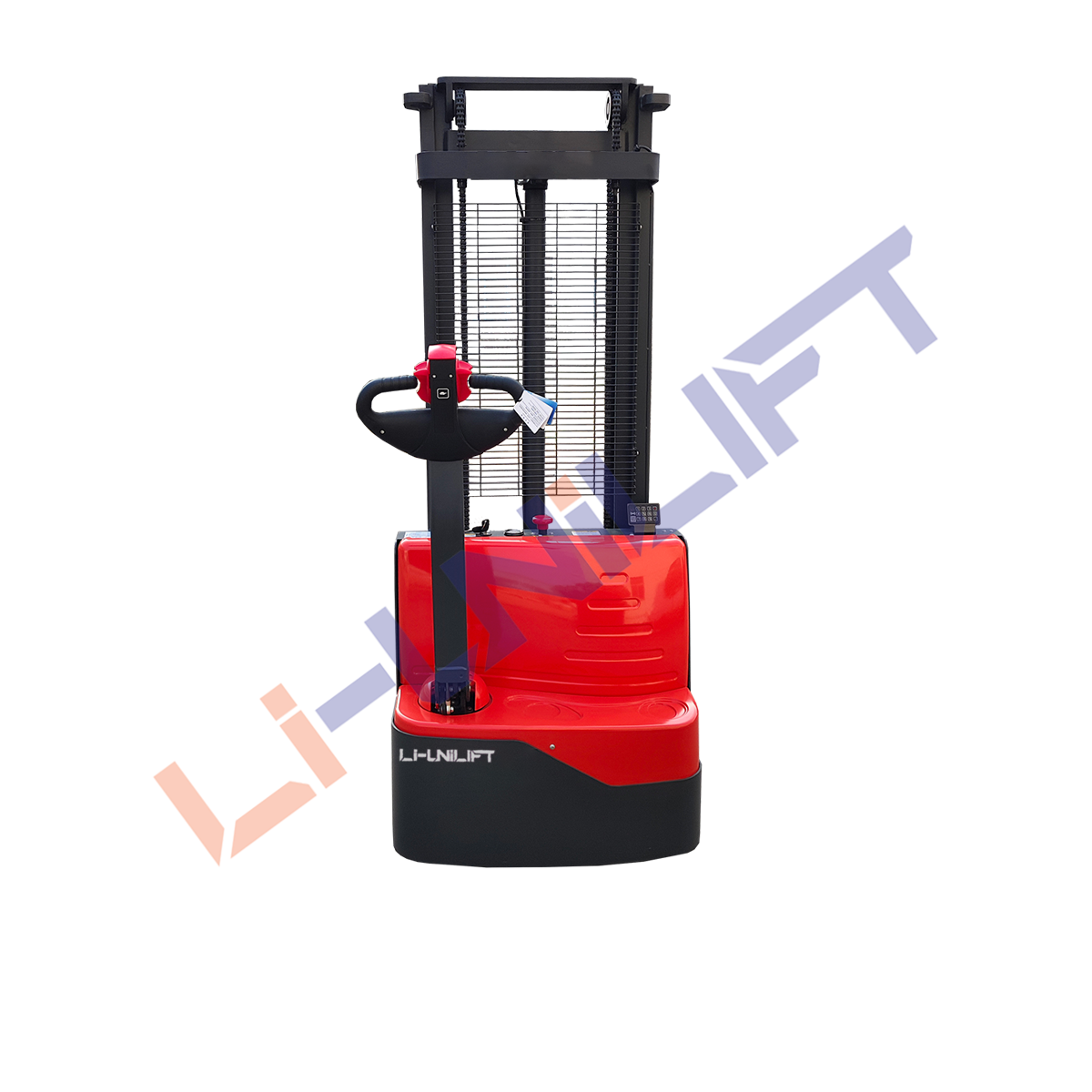

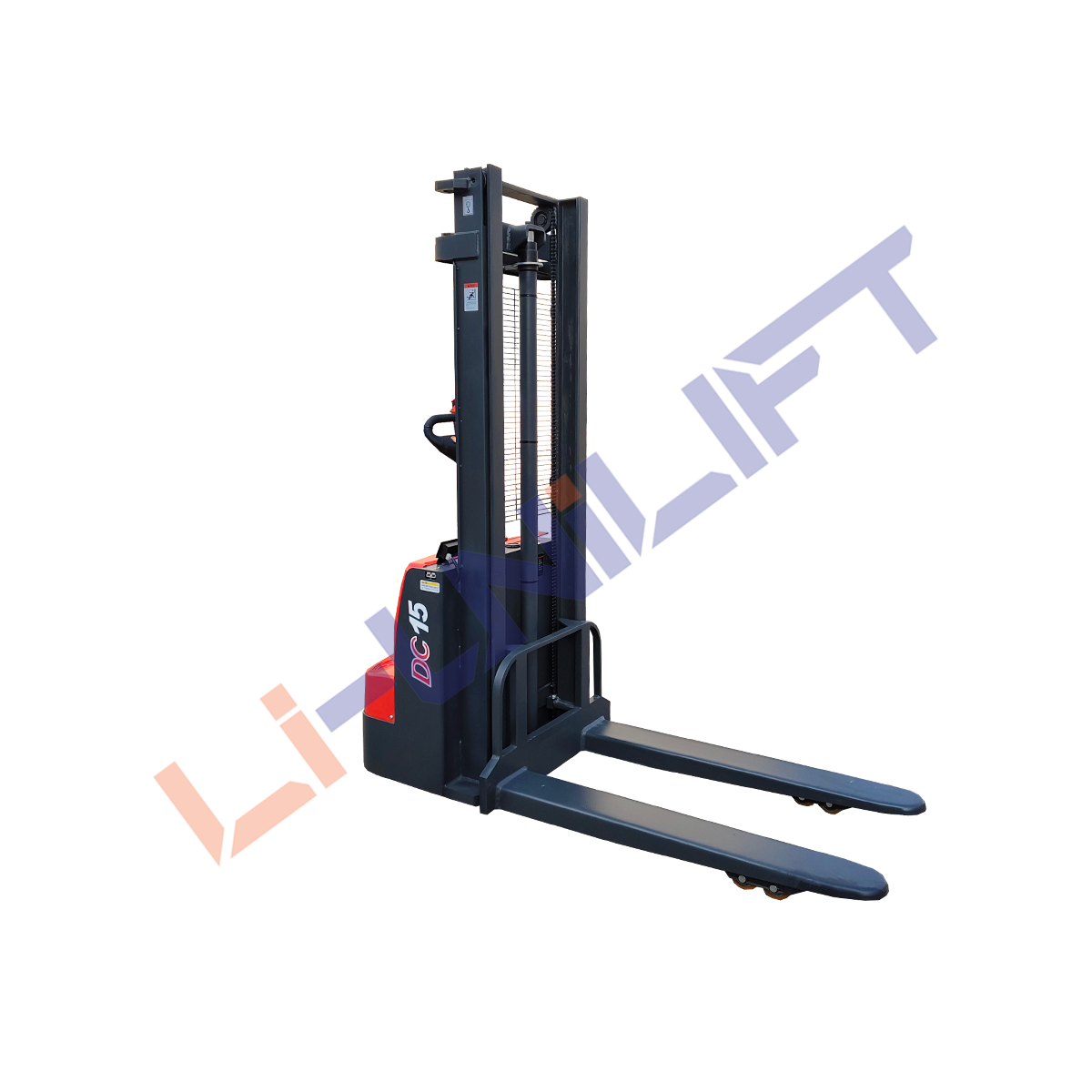

Small warehouses and production workshops need a compact pedestrian stacker that reaches higher rack levels while maintaining flexible operation. The CDD10-070 walkie electric pallet stacker delivers a dependable 1-ton load rating, fitted with a 2-stage mast to support lift heights ranging from 2000mm to 3300mm for versatile high stacking tasks.
Heavy-Duty Mast & Fork Assembly for Long-Term Use
The CDD10-070 stacker adopts a robust two-stage mast paired with high-strength steel forks. This solid structure stays stable while lifting full loads to elevated rack positions. Separately excited drive motor generates strong climbing power to handle gentle warehouse slopes without losing torque.
A built-in integrated charger eliminates extra charging station hardware and streamlines daily battery top-ups. PU wheels create quiet movement with low energy consumption for extended operation during long working shifts. Adjustable fork outer widths from 550mm to 685mm accommodate multiple standard pallet types for flexible logistics workflows.
Precision Variable Speed Operation for Tight Workspaces
Every control feature of this walkie stacker helps operators handle pallet stacking with greater control and less fatigue.
- Stepless speed regulation delivers smooth acceleration and deceleration. Operators can dial travel speed up or down to match different working zones and avoid jarring movements while transporting goods.
- Compact body design and narrow turning radius support navigation inside confined warehouse aisles. The stacker easily moves between rack rows where larger material handling machines cannot fit.
- Multiple mast height options let buyers match the lifting capability directly to their rack storage height requirements, whether for mid-level or high bay stacking jobs.
Comprehensive Safety Controls for Pedestrian Operators
Purpose-built safety systems protect operators and inventory during every stacking cycle. The controller comes with multiple automatic protection functions to shield motors and batteries from overload and electrical faults.
An emergency reversing mechanism and emergency brake switch sit on the operator handle. These safety features instantly respond to unexpected obstacles to prevent collision risks. Automatic lifting limit stops the mast from overextending, which preserves motor and battery service life and reduces premature component wear.
Simplified Service to Reduce Downtime
Smart component selection and layout cut routine maintenance work and extend the stacker’s usable service life.
- Integrated charger design removes separate charging equipment and reduces extra investment for warehouse operators.
- Automatic lifting limit prevents mast over-travel and protects hydraulic and electrical components from damage.
- Multi-protection controller minimizes electrical failures and lowers unplanned equipment downtime.
- Rugged high-strength steel forks resist deformation during repeated pallet loading and unloading cycles.
Advancing High-Reach Light-Duty Stacking for Intralogistics
Modern small-scale storage facilities seek affordable electric stackers that combine high lifting capacity, flexible controls and reliable safety protection. The CDD10-070 walkie electric pallet stacker brings two-stage mast performance, strong climbing power and stepless speed control to retail storage areas, small manufacturing sites and compact distribution hubs.
Beyond reliable high-reach lifting performance, our engineering team focuses on low energy consumption and straightforward daily maintenance. This 1-ton pedestrian stacker completes routine pallet stacking work consistently and helps business owners manage material handling operating costs efficiently.
Technical Specifications
| Feature | Unit | CDD10-070 |
|---|---|---|
| Model | CDD10-070 | |
| Load capacity | kg | 1000 |
| Wheels type | PU | |
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/1/4 | |
| Outside width between forks | mm | 550/600/650/685 |
| Intside width between forks | mm | 180/230/280/315 |
| Fork size(length/width/thickness) | mm | 1150(1220)/185/55 |
| Overall length | mm | 1733 |
| Overall width | mm | 790 |
| Travel speed,laden/unladen | km/h | 3/3.5 |
| Gradeability,laden/unladen | % | 5/7 |
| Drive control type | DC0.63/DC2.0 | |
| Controller | HELI(CURTIS option) |
