CDD Series Walkie Electric Pallet Stacker
Smooth Lifting, Compact Material Handling — LI‑UNILIFT

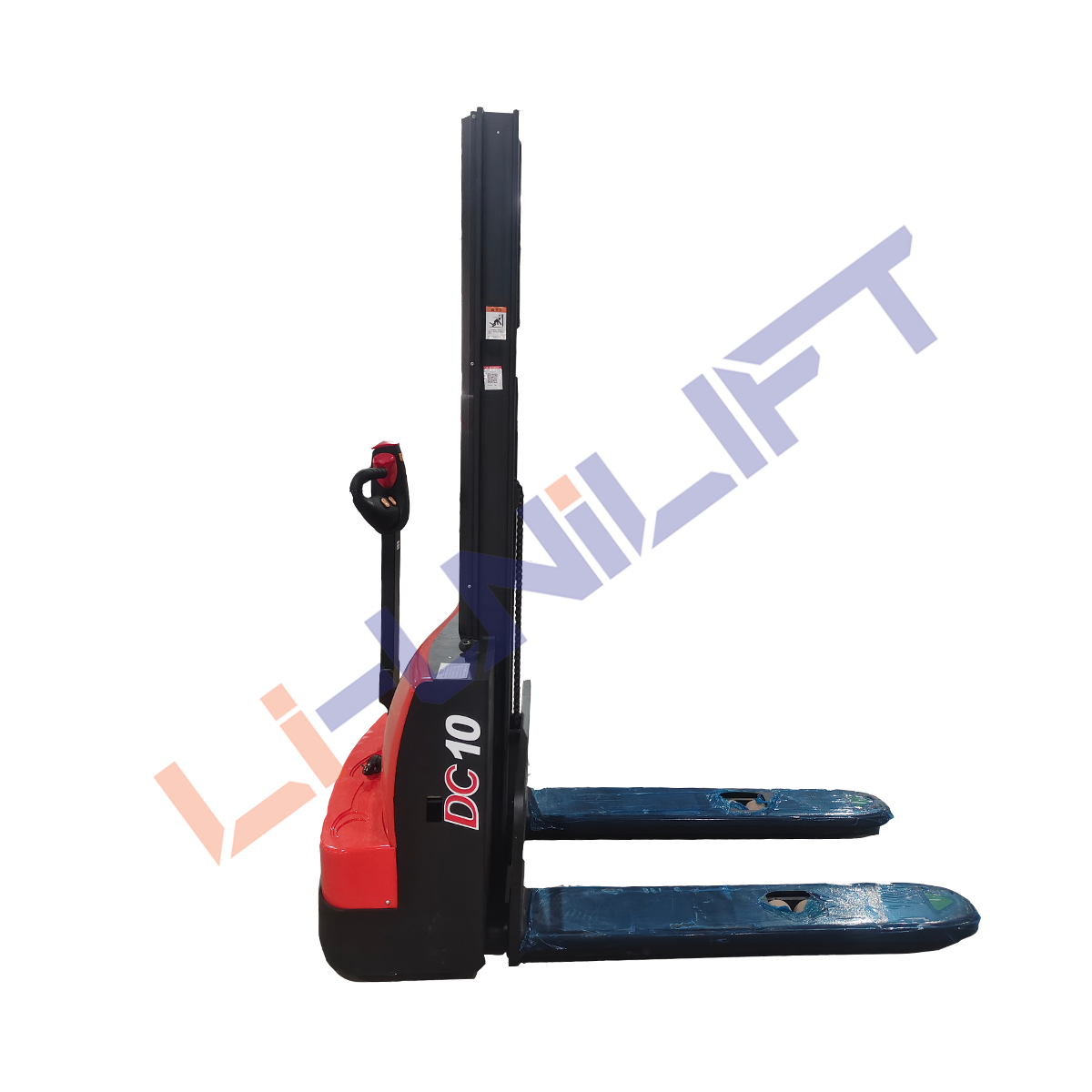

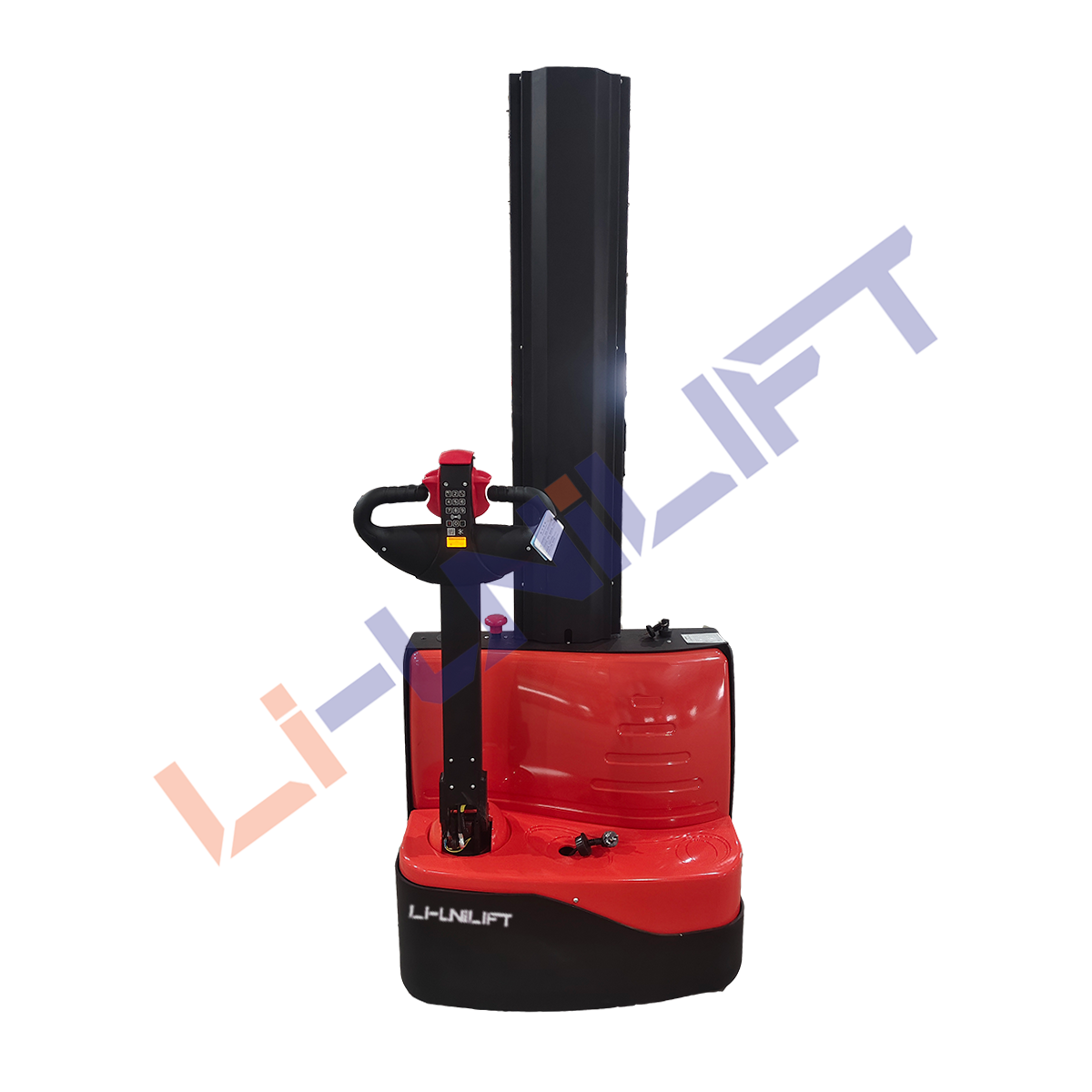

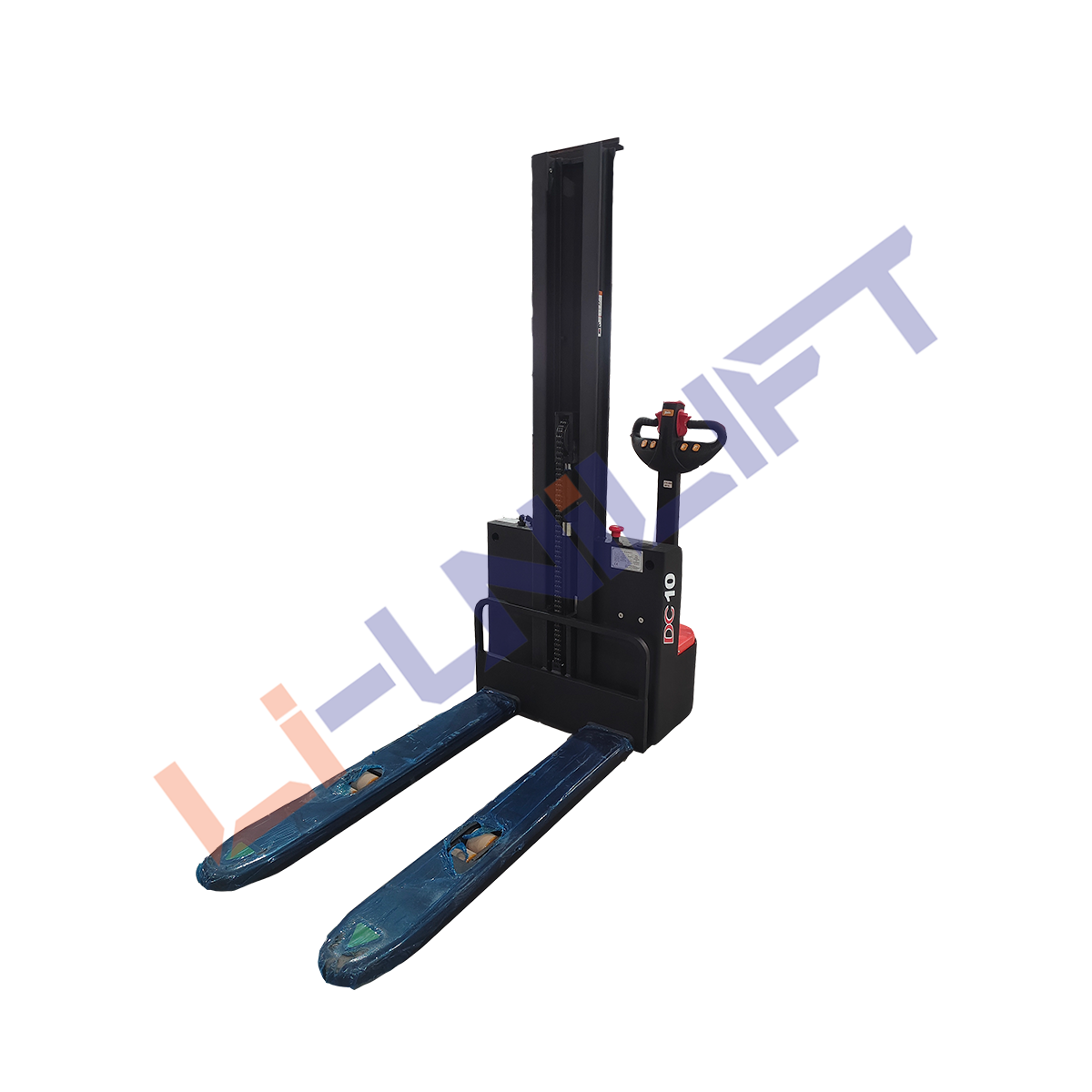

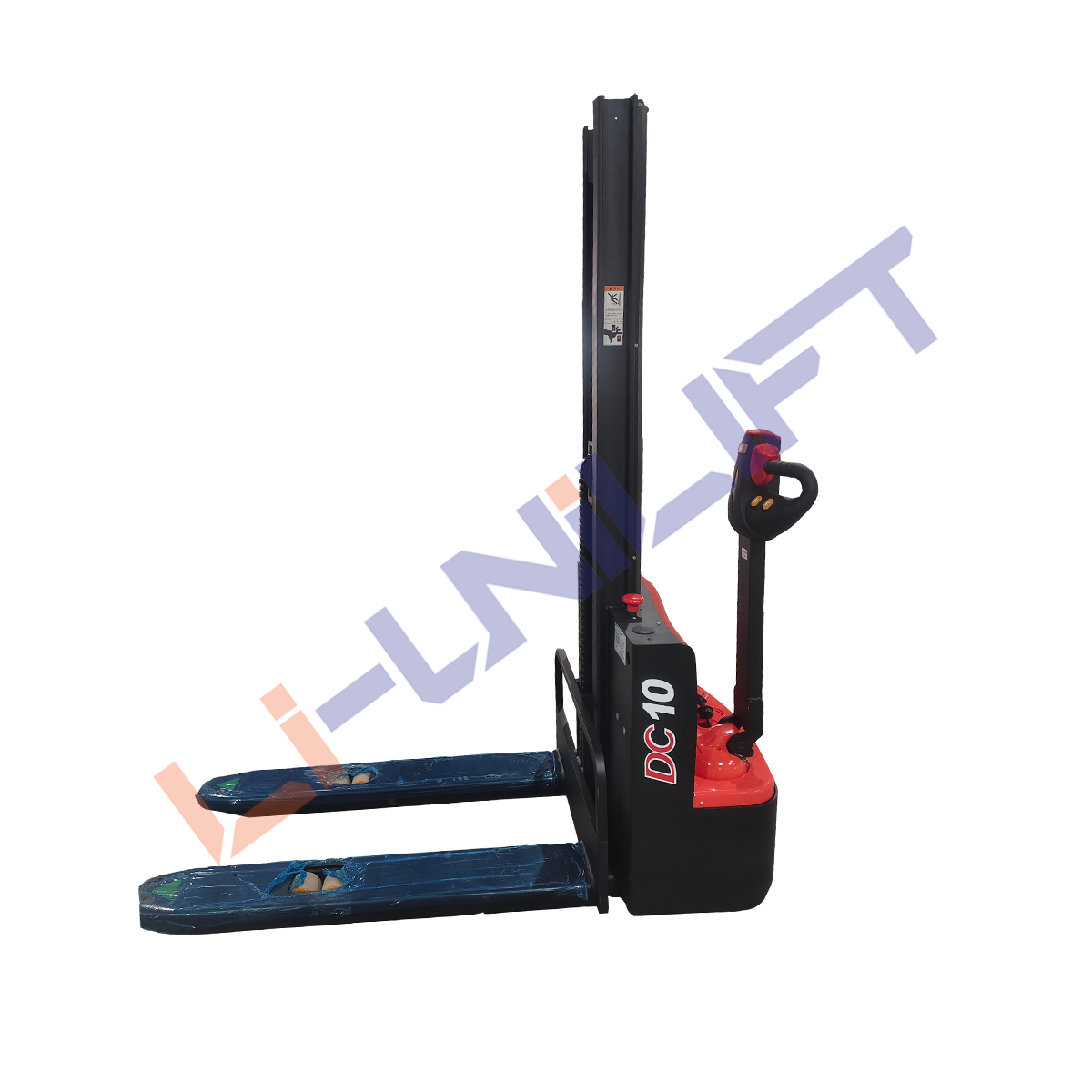

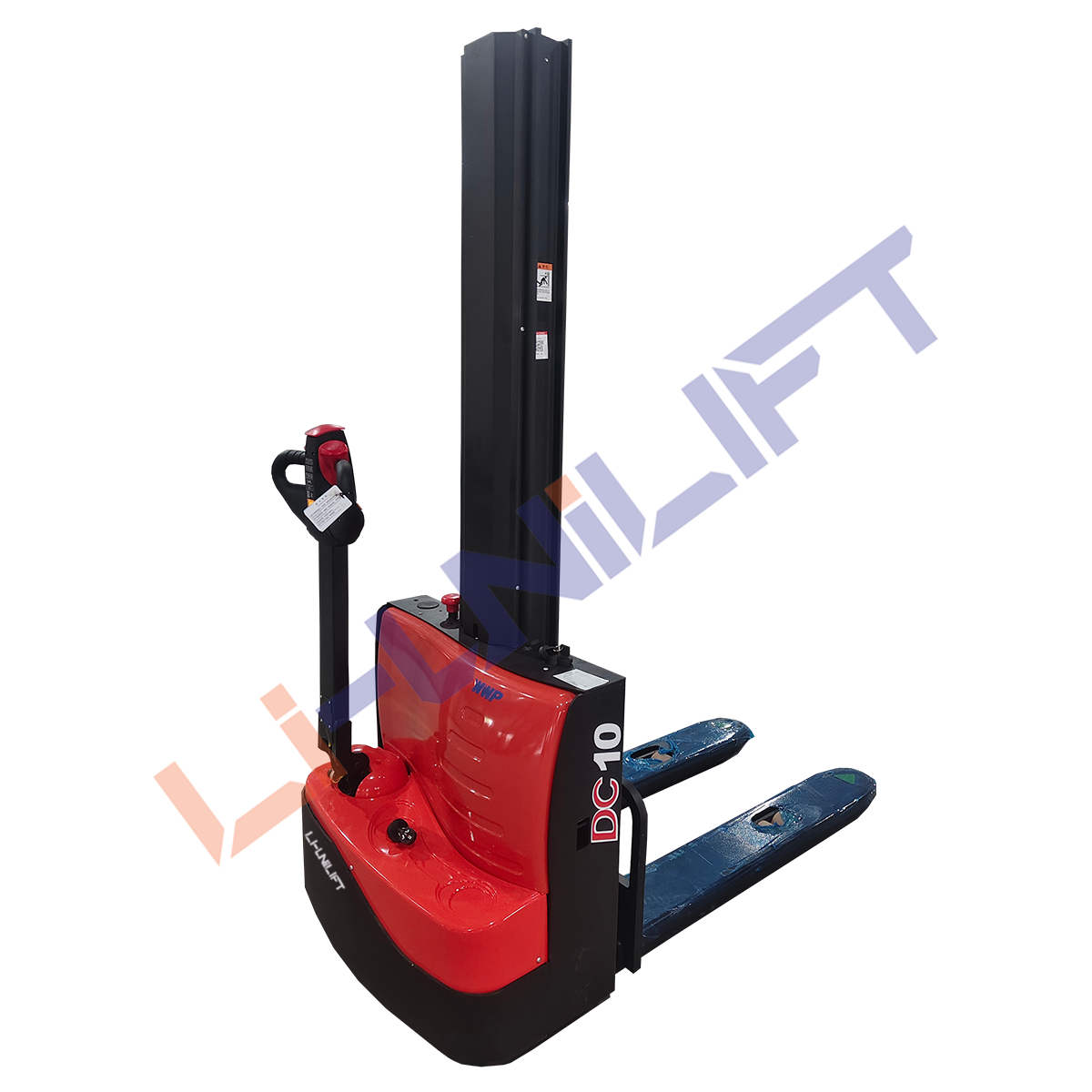

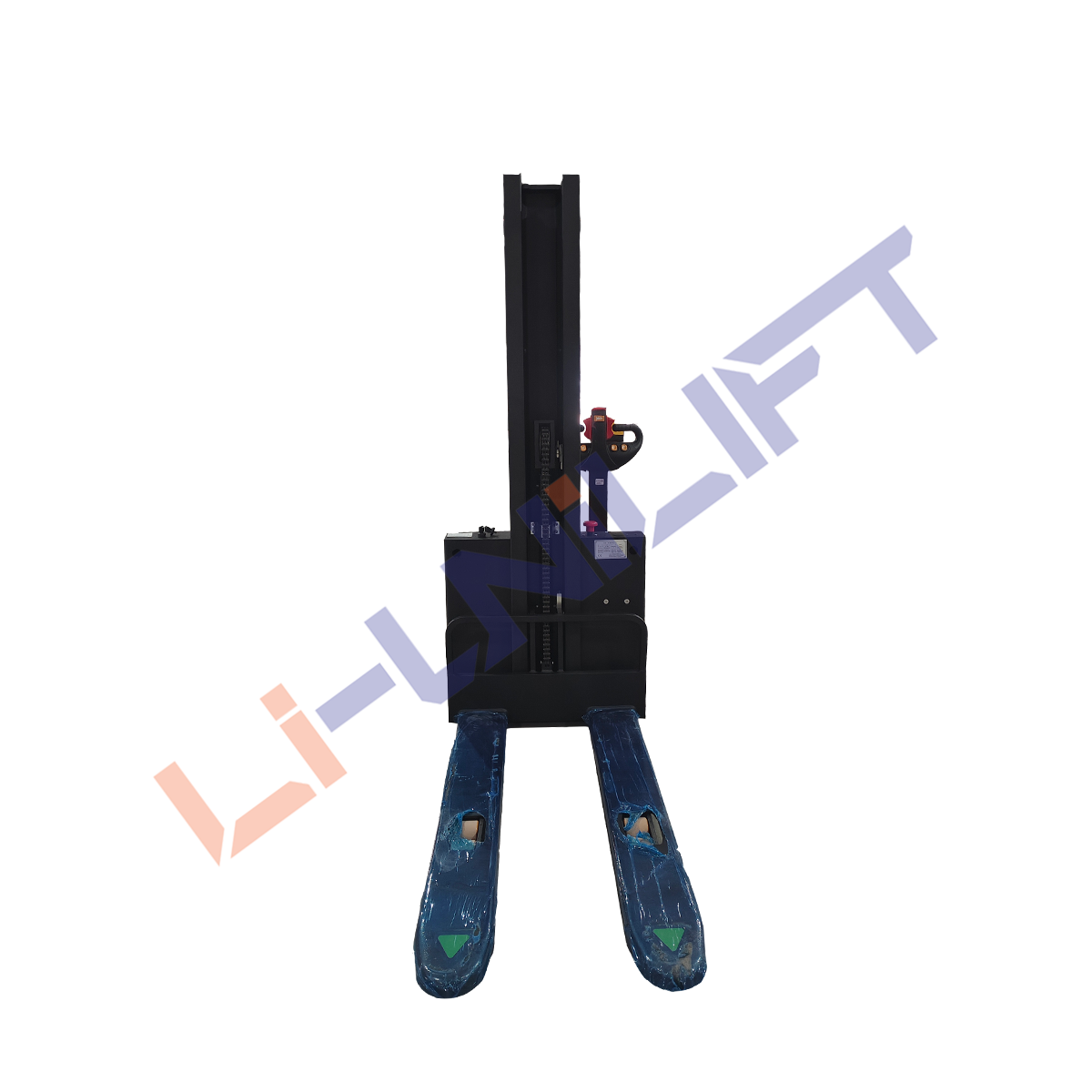

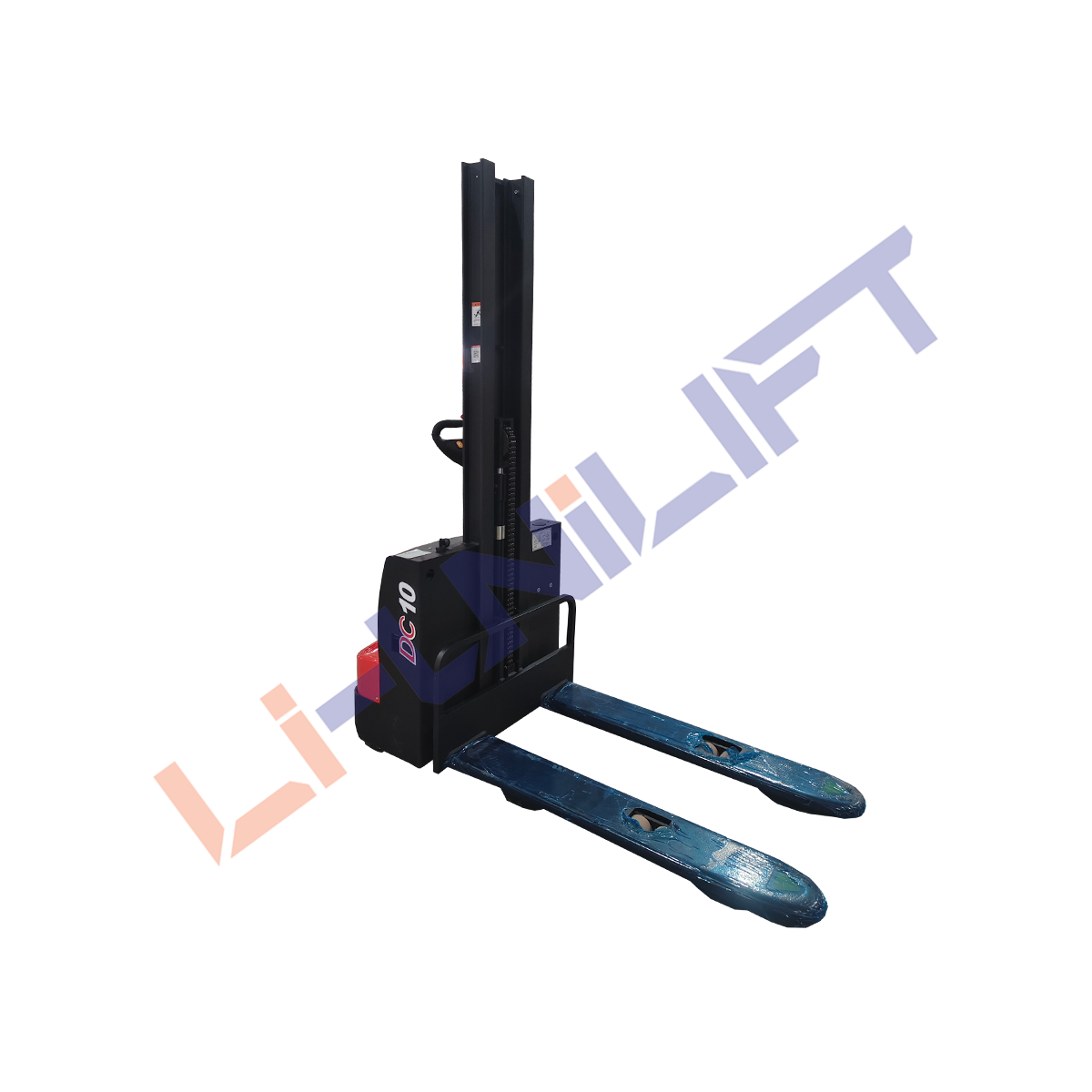

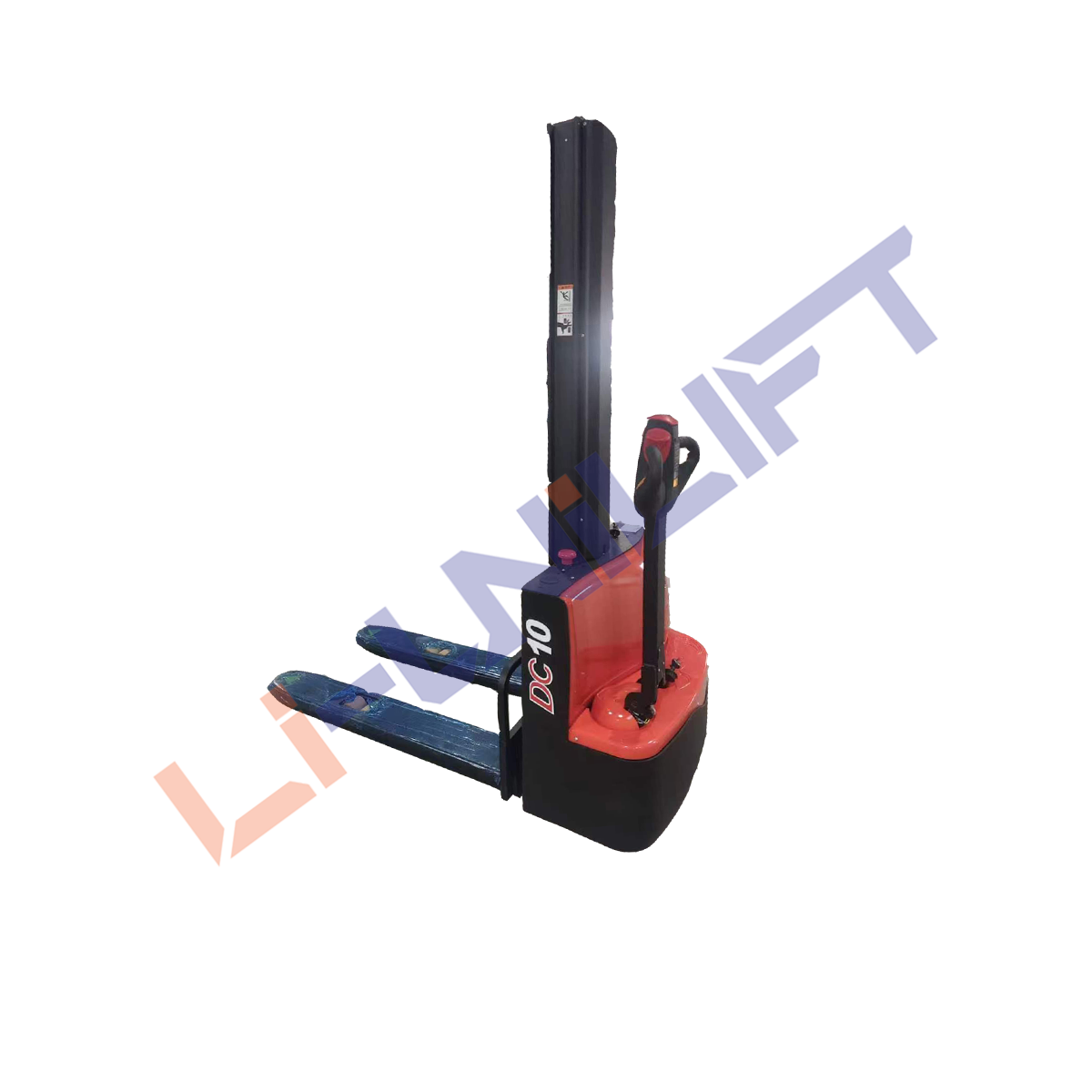

Light-duty warehouses and small storage zones need agile pedestrian stackers to handle routine pallet stacking tasks. The CDD10-080 walkie electric pallet stacker delivers a solid 1-ton load capacity, paired with a single stage mast design to suit low-level rack stacking and confined workspaces.
Solid Steel Build for Light-Duty Stacking Jobs
The CDD10-080 stacker comes equipped with heavy-duty steel forks and a sturdy single-stage mast. This robust structure maintains reliable performance during daily repeated lifting operations. Standard lift heights of 1600mm and 1950mm fit most low rack storage setups.
Separately excited drive motor delivers strong climbing power for slight warehouse slopes. Built-in charger removes extra charging station equipment and simplifies daily power replenishment. Polyurethane wheels offer quiet rolling movement and low energy consumption for long shift operation.
Adjustable Control for Effortless Pallet Handling
Every control feature of this walkie stacker helps operators complete stacking tasks with less effort and higher precision.
- Stepless speed control enables smooth acceleration and deceleration. Operators adjust travel speed freely to match different working areas and avoid sudden jolts while transporting goods.
- Multiple outer fork width options from 550mm to 685mm support various standard pallet sizes. This flexible design allows the stacker to work with different pallet types without extra modifications.
- Compact overall dimensions and tight turning radius let users navigate narrow aisles smoothly, ideal for small warehouses and retail backroom storage.
Layered Safety Mechanisms for Pedestrian Operation
Safety functions are fully integrated into this pedestrian stacker to shield operators and stored goods during material handling. The controller carries multiple automatic protection systems to guard motors and batteries against overload and abnormal operation.
Emergency reversing device and emergency brake switch sit on the control handle. Both respond instantly once operators face unexpected obstacles. Automatic lifting limit stops mast over-travel, extending the working lifespan of motors and battery packs.
Streamlined Maintenance to Cut Operational Costs
Well-thought component layout reduces maintenance work and extends the service cycle of this walkie stacker.
- Built-in charger design removes external charging hardware and reduces extra equipment investment.
- Automatic lifting limit function prevents over-lifting damage to mast and hydraulic assemblies.
- Multi-protection controller cuts the risk of electrical damage and lowers unexpected equipment downtime.
- Durable high-strength steel forks resist deformation under regular light-load stacking cycles.
Optimizing Light-Duty Electric Stacker Solutions for Intralogistics
Many small-scale storage facilities seek affordable, low-noise pedestrian lifting equipment for light pallet stacking work. The CDD10-080 walkie electric pallet stacker combines strong climbing performance, stepless speed regulation and complete safety systems to fit retail storage, small workshops and compact distribution spaces.
Beyond steady lifting performance, our engineering team prioritizes low energy consumption and simple daily maintenance. This 1-ton walkie stacker handles light intralogistics tasks reliably and helps business owners keep material handling budgets under control.
Technical Specifications
| Feature | Unit | ||
| Load capacity | kg | 1000 | |
| Wheels type | PU | ||
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/1/4 | ||
| Fork size(length/width/thickness) | mm | 1150(1220)/185/55 | |
| Overall length | mm | 1634 | |
| Overall width | mm | 790 | |
| Outside width between forks | mm | 550/600/650/685 | |
| Intside width between forks | mm | 180/230/280/315 | |
| Travel speed,laden/unladen | km/h | 3/3.5 | |
| Gradeability,laden/unladen | % | 5/7 | |
| Drive motor/Lift motor | kW | DC0.63/DC2.0 | |
| Controller | HELI(CURTIS option) | ||
