Product Definition

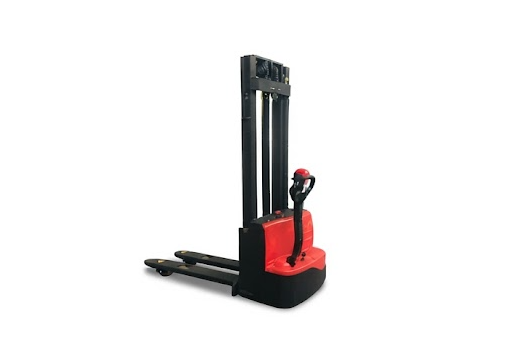

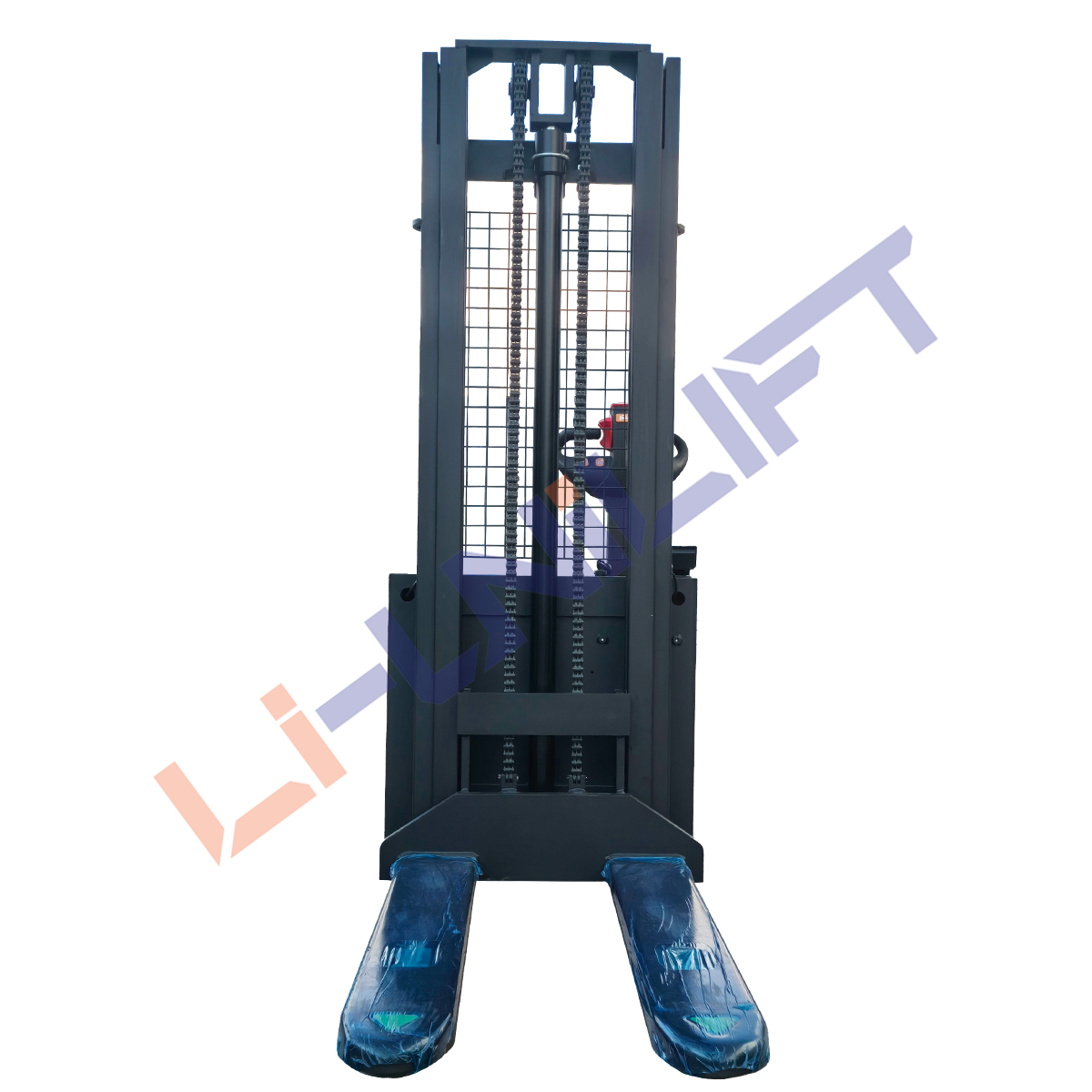

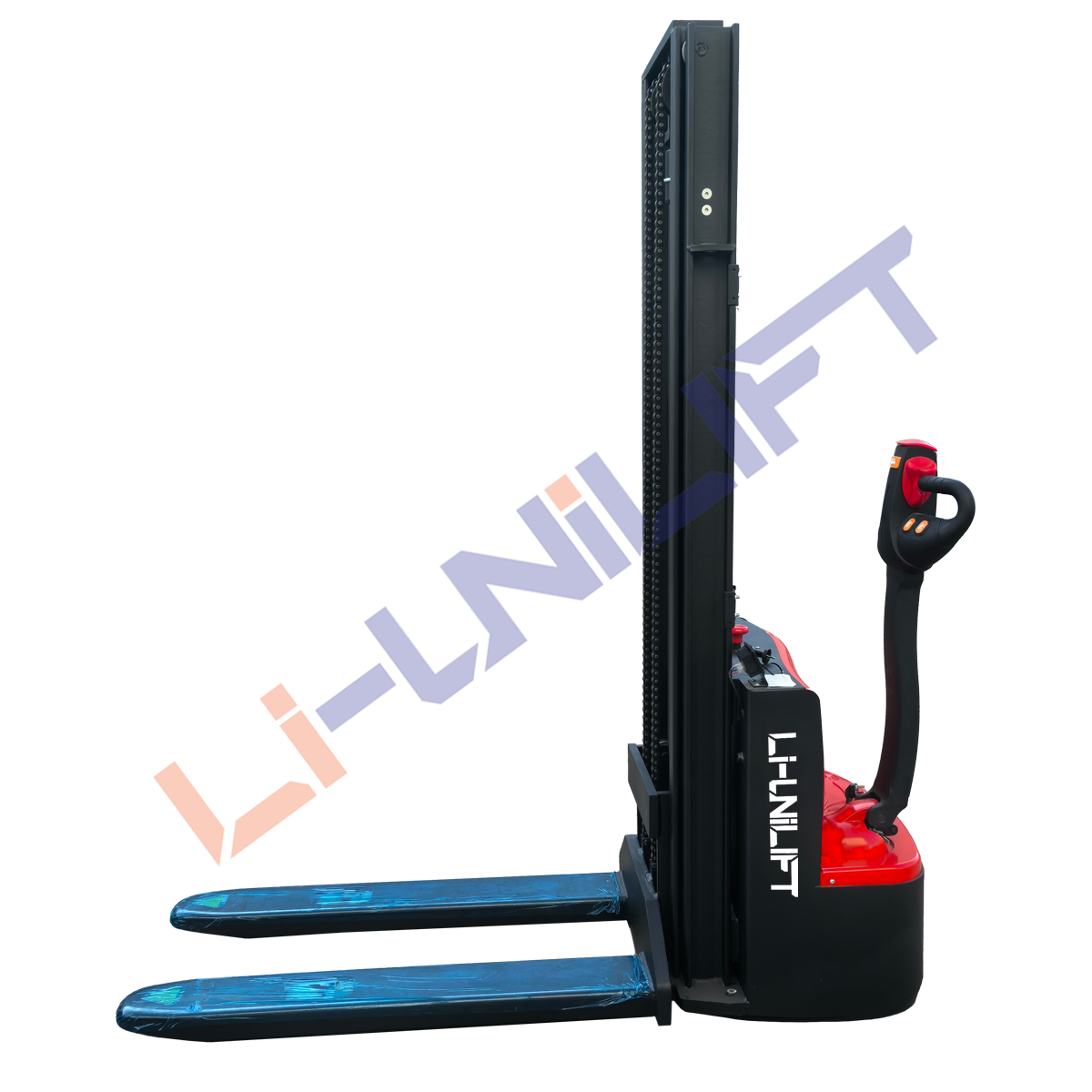

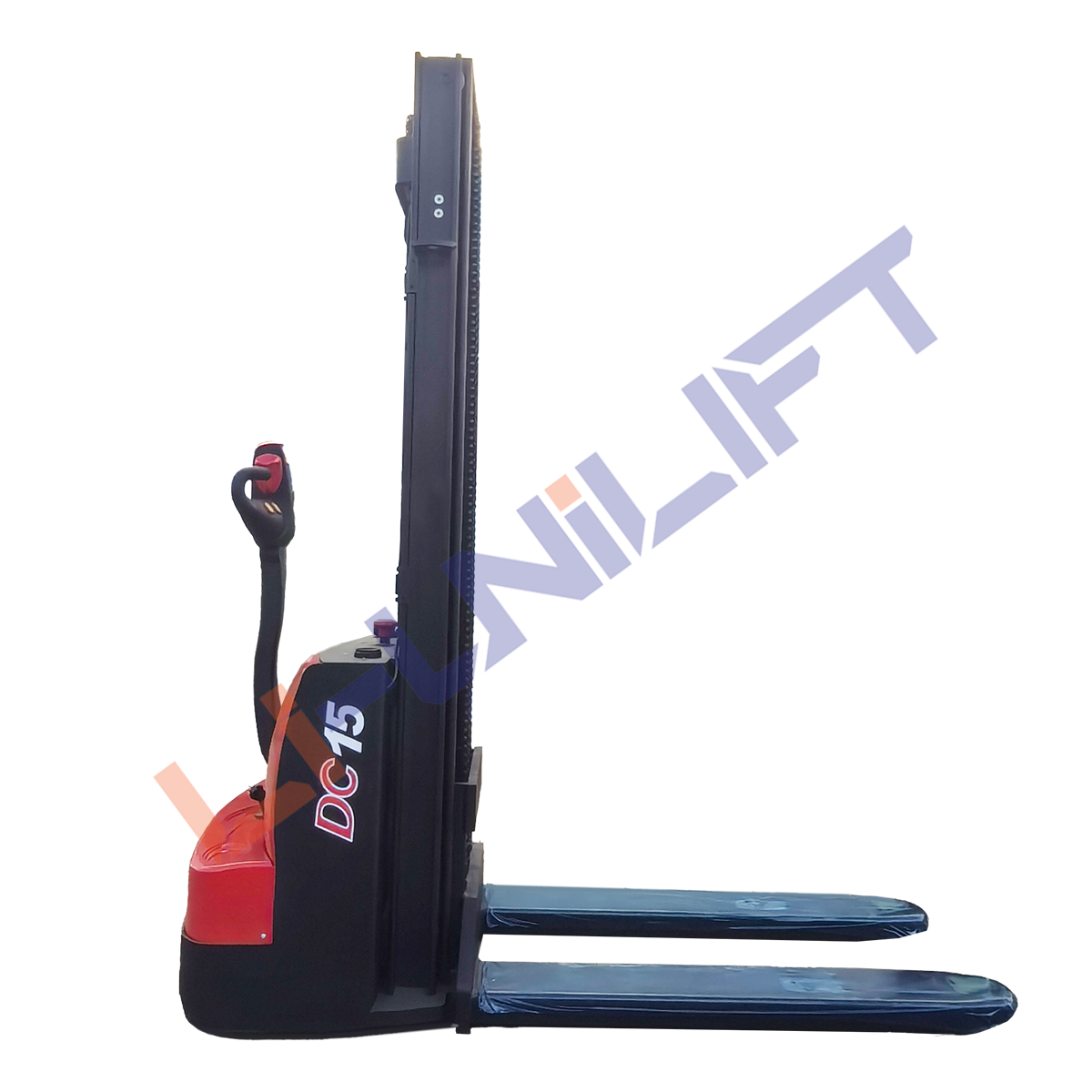

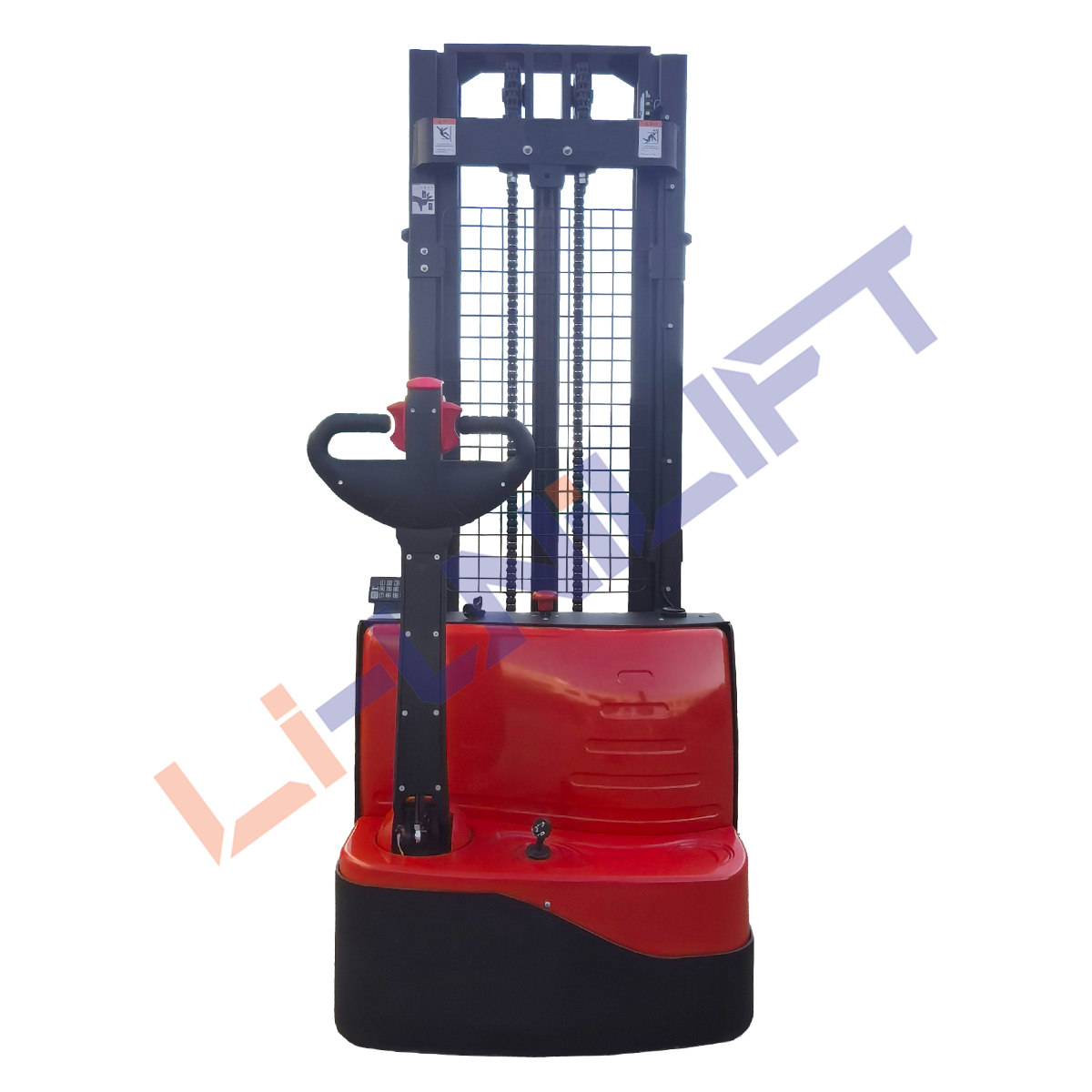

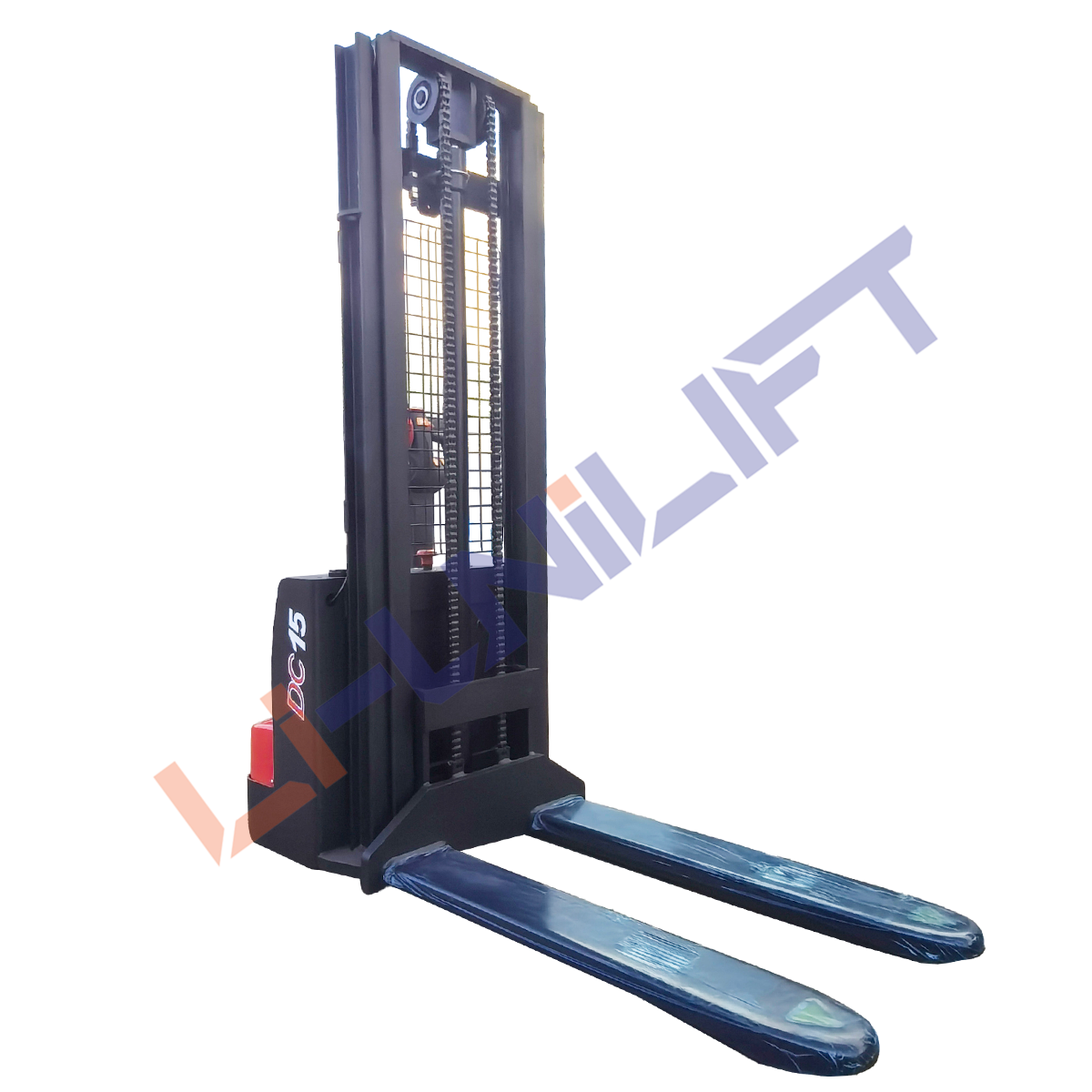

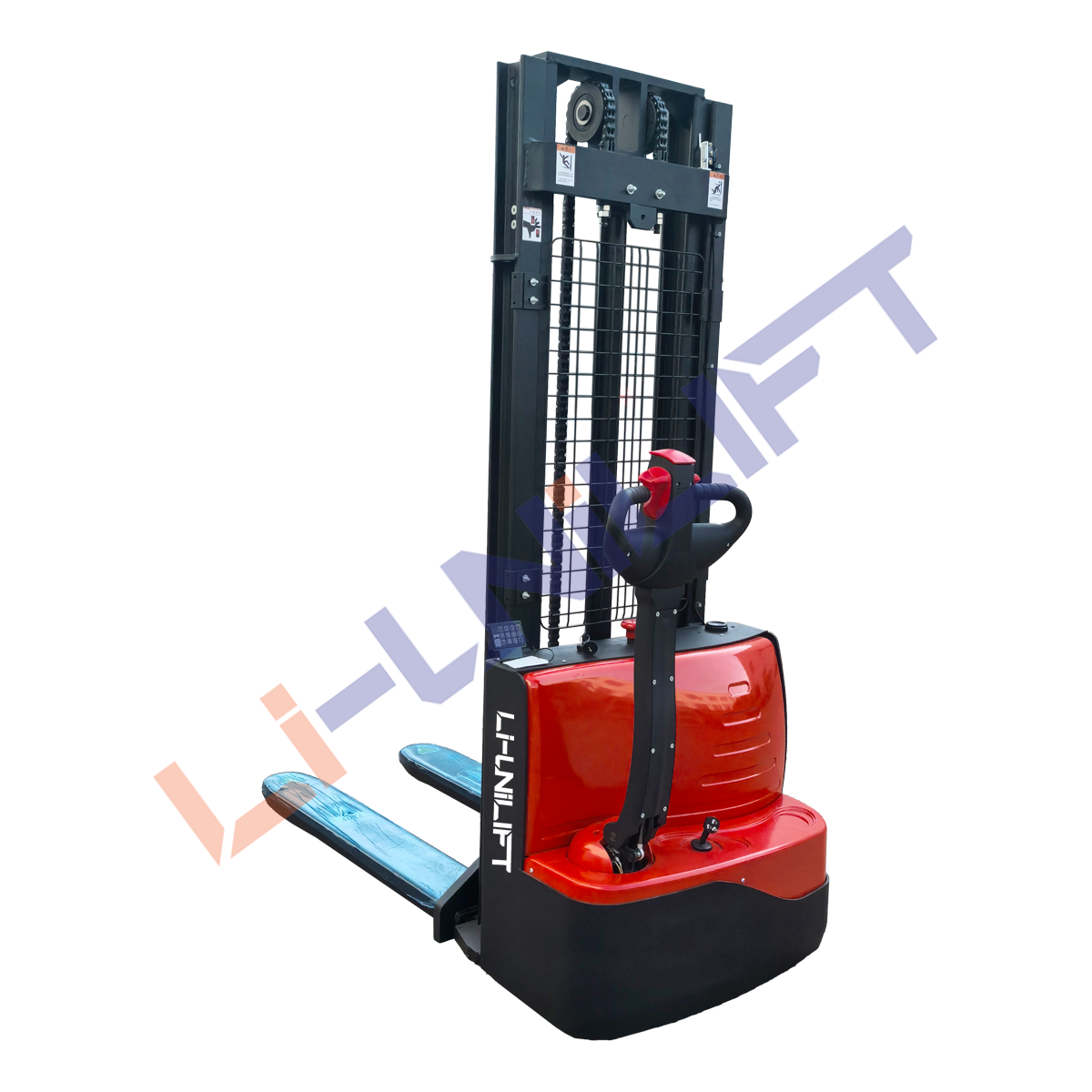

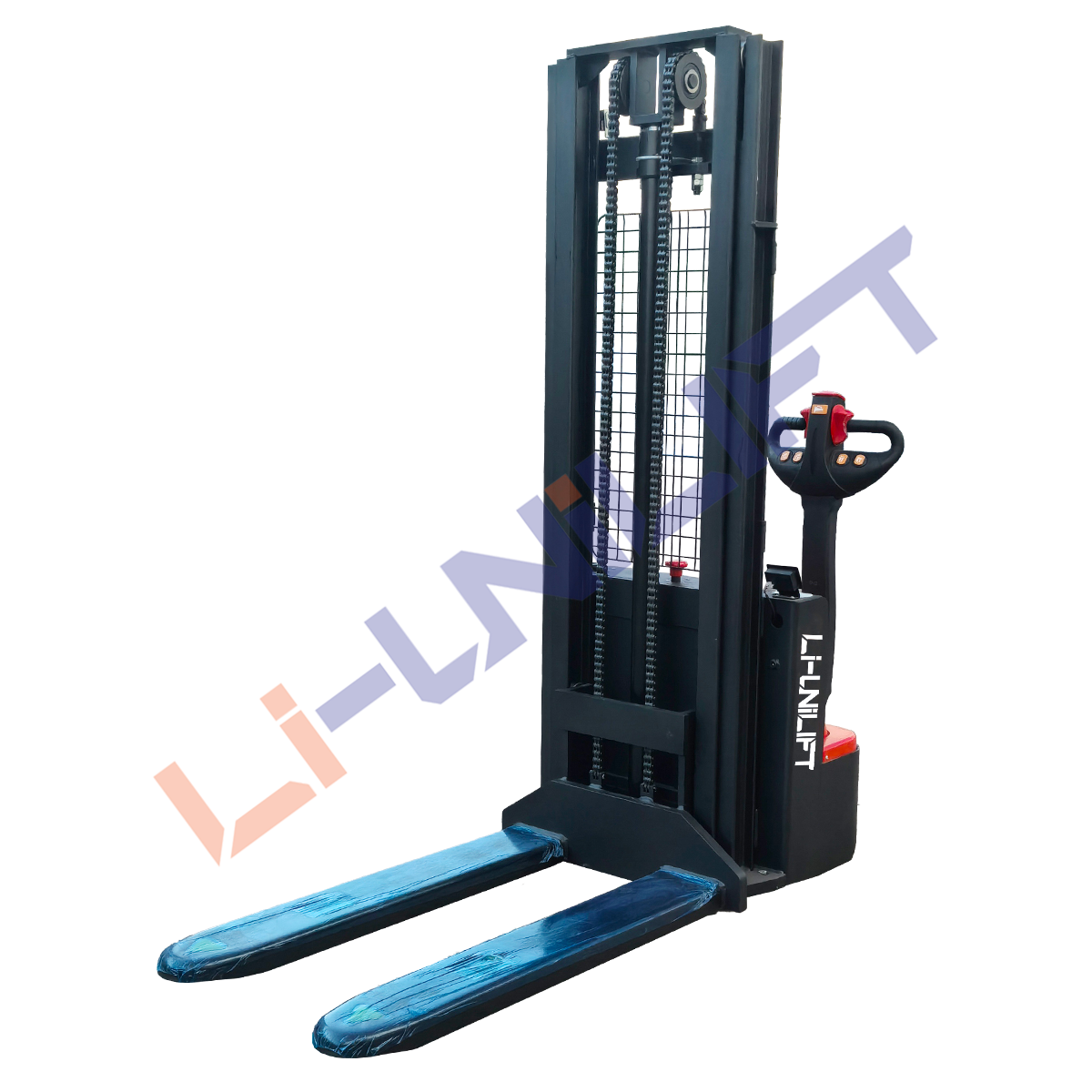

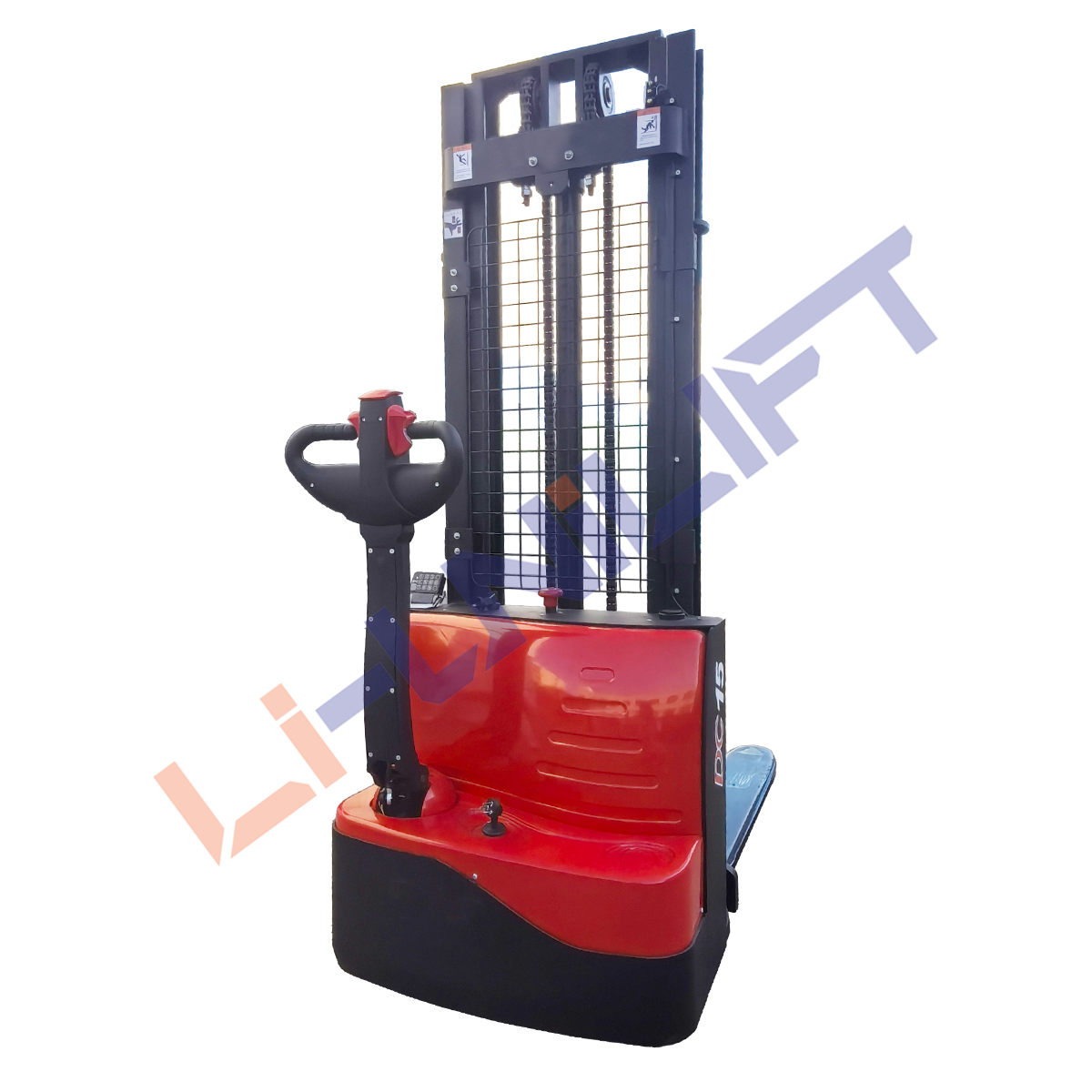

The CDD12/15-070E Electric Stacker is a 1.2–1.5 ton walkie electric pallet stacker designed for pallet lifting, stacking, and short-distance transportation in warehouses, factories, workshops, and distribution centers.
With a rated load capacity range of 1200kg to 1500kg, this electric stacker combines a compact structure, fully electric operation, and efficient lifting performance to replace traditional manual stackers and reduce labor intensity. It is suitable for low and medium-height storage applications where flexibility, reliability, and cost efficiency are required.
The CDD12/15-070E series is available in:
- CDD12-070E: 1.2 Ton Electric Stacker
- CDD15-070E: 1.5 Ton Electric Stacker
Both models use a walkie operation design, allowing operators to walk behind the truck while controlling traveling, lifting, and lowering functions.
1. 1.2–1.5 Ton Load Capacity
The CDD12/15-070E is designed for light and medium-duty stacking operations.
| Model | Rated Capacity |
|---|---|
| CDD12-070E | 1200 kg |
| CDD15-070E | 1500 kg |
It is suitable for handling:
- Warehouse pallets
- Packaging materials
- Production components
- Raw materials
- Finished products
Compared with manual pallet stackers, the electric lifting and driving system greatly improves efficiency and reduces operator fatigue.
2. Fully Electric Drive & Lifting System
The CDD12/15-070E adopts a battery-powered electric system for both traveling and lifting.
Advantages:
- Lower labor intensity
- Smooth lifting operation
- Faster pallet handling
- Low operating noise
- Zero exhaust emissions
It is an ideal solution for indoor warehouses and environmentally sensitive workplaces.
3. Compact Walkie Design
The walkie-type structure provides excellent flexibility in limited spaces.
Benefits:
- Compact body size
- Small turning radius
- Easy operation
- Suitable for narrow aisles
- Convenient maintenance
The compact design makes it suitable for:
- Small warehouses
- Workshops
- Retail storage areas
- E-commerce fulfillment centers
4. Efficient Lifting Performance
The CDD12/15-070E is designed for vertical pallet stacking.
Main advantages:
- Stable mast structure
- Smooth lifting and lowering
- Multiple lifting height options
- Good visibility during operation
Typical lifting height options include:
- 2000 mm
- 2500 mm
- 3000 mm
- 3300 mm
(depending on configuration)
5. Powerful Drive Motor System
The electric stacker uses an efficient drive motor system to provide reliable transportation performance.
Advantages:
- Strong traction capability
- Stable operation
- Low maintenance requirement
- Energy-efficient performance
Some configurations use permanent magnet motor technology, which provides compact size, lower energy loss, and improved efficiency.
6. Ergonomic Control Handle
The integrated control handle improves operator comfort and convenience.
Functions include:
- Travel control
- Lifting and lowering control
- Emergency stop
- Battery indicator
- Speed adjustment
The ergonomic design reduces operator fatigue during repeated stacking operations.
7. Safety Features
The CDD12/15-070E is equipped with multiple safety systems.
Safety functions include:
- Electromagnetic braking
- Emergency reverse button
- Regenerative braking
- Speed control system
- Anti-roll-back protection
These features improve operational safety in busy warehouse environments.
Technical Specifications
| Parameter | CDD12-070E | CDD15-070E |
|---|---|---|
| Rated Capacity | 1200 kg | 1500 kg |
| Operation Type | Walkie | Walkie |
| Power Type | Battery Electric | Battery Electric |
| Load Center | 600 mm | 600 mm |
| Lift Height | 2000–3300 mm | 2000–3300 mm |
| Fork Length | 1150 mm | 1150 mm |
| Fork Width | 550/600/650/685 mm | 550/600/650/685 mm |
| Battery Voltage | 24V | 24V |
| Battery Capacity | 85Ah / 105Ah | 85Ah / 105Ah |
| Wheel Type | PU | PU |
| Brake System | Electromagnetic Brake | Electromagnetic Brake |
Applications
Warehouse Storage
Manufacturing Facilities
Logistics & Distribution Centers
