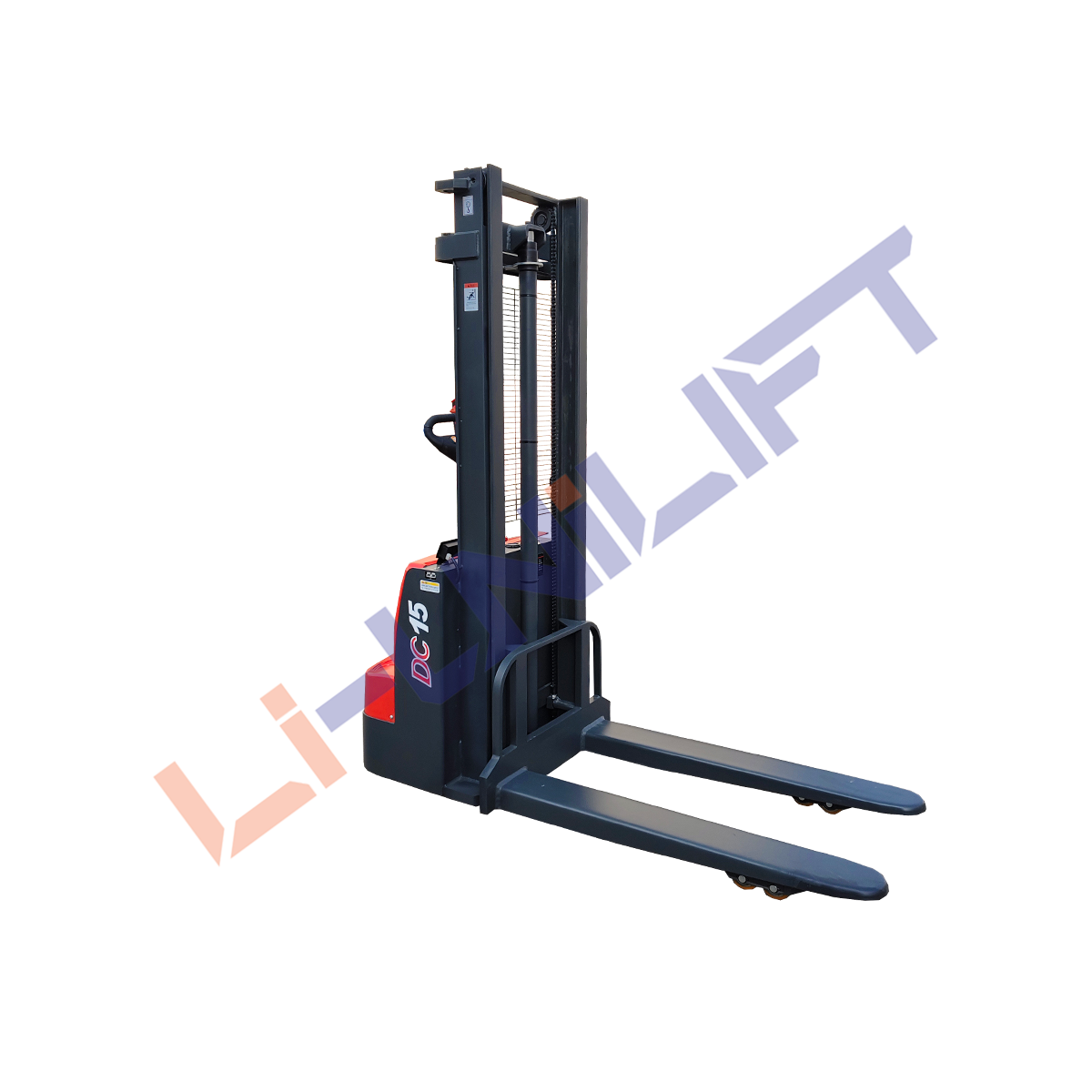

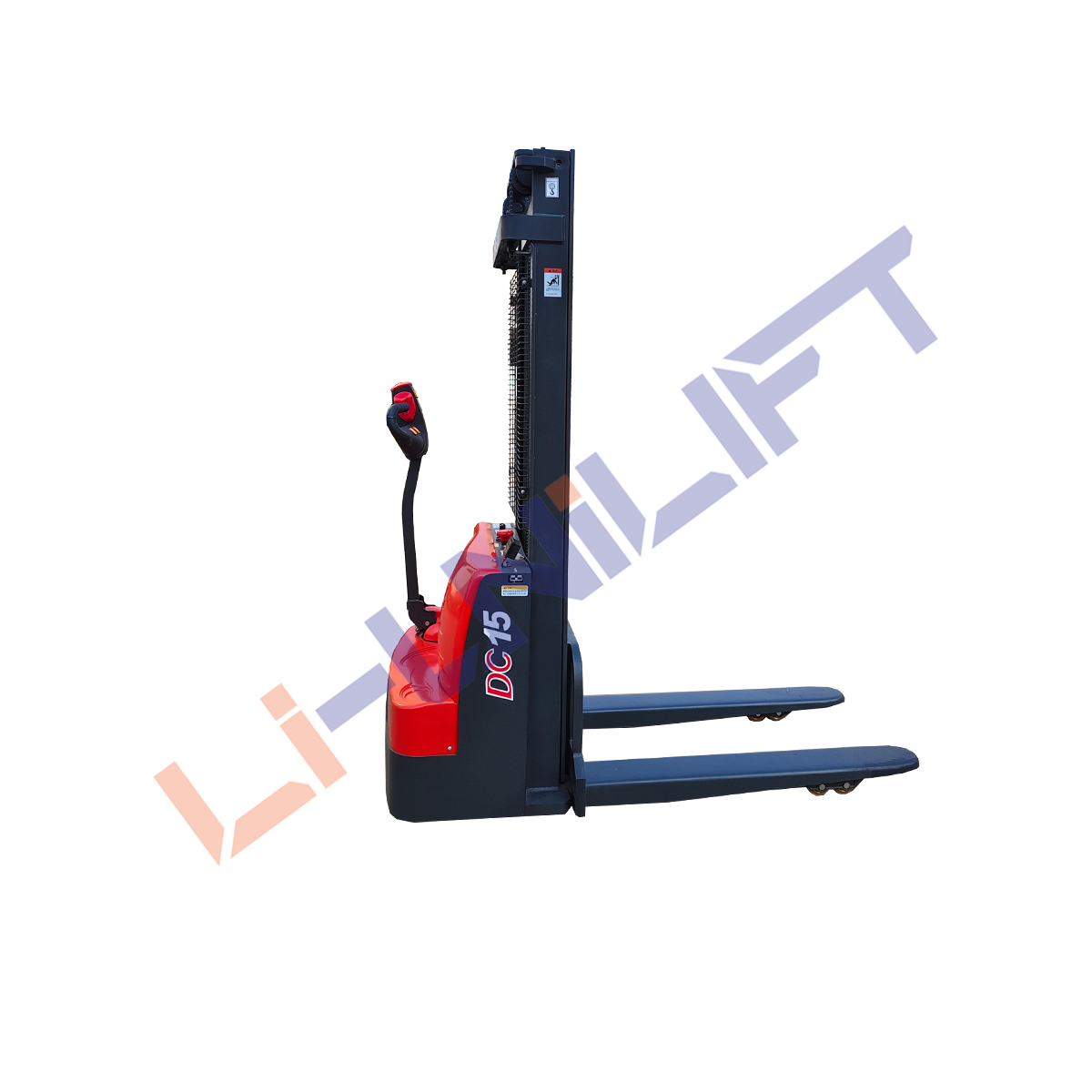

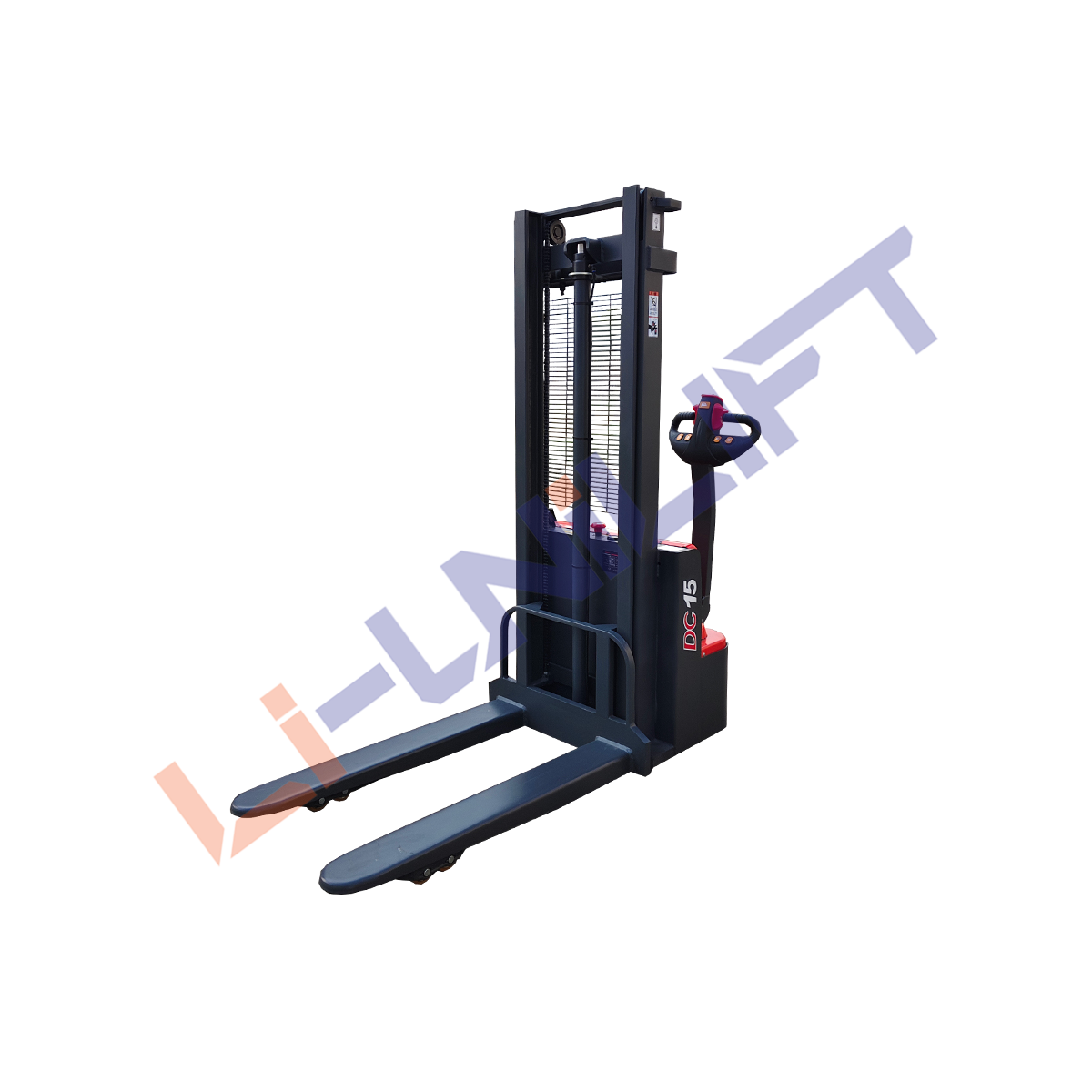

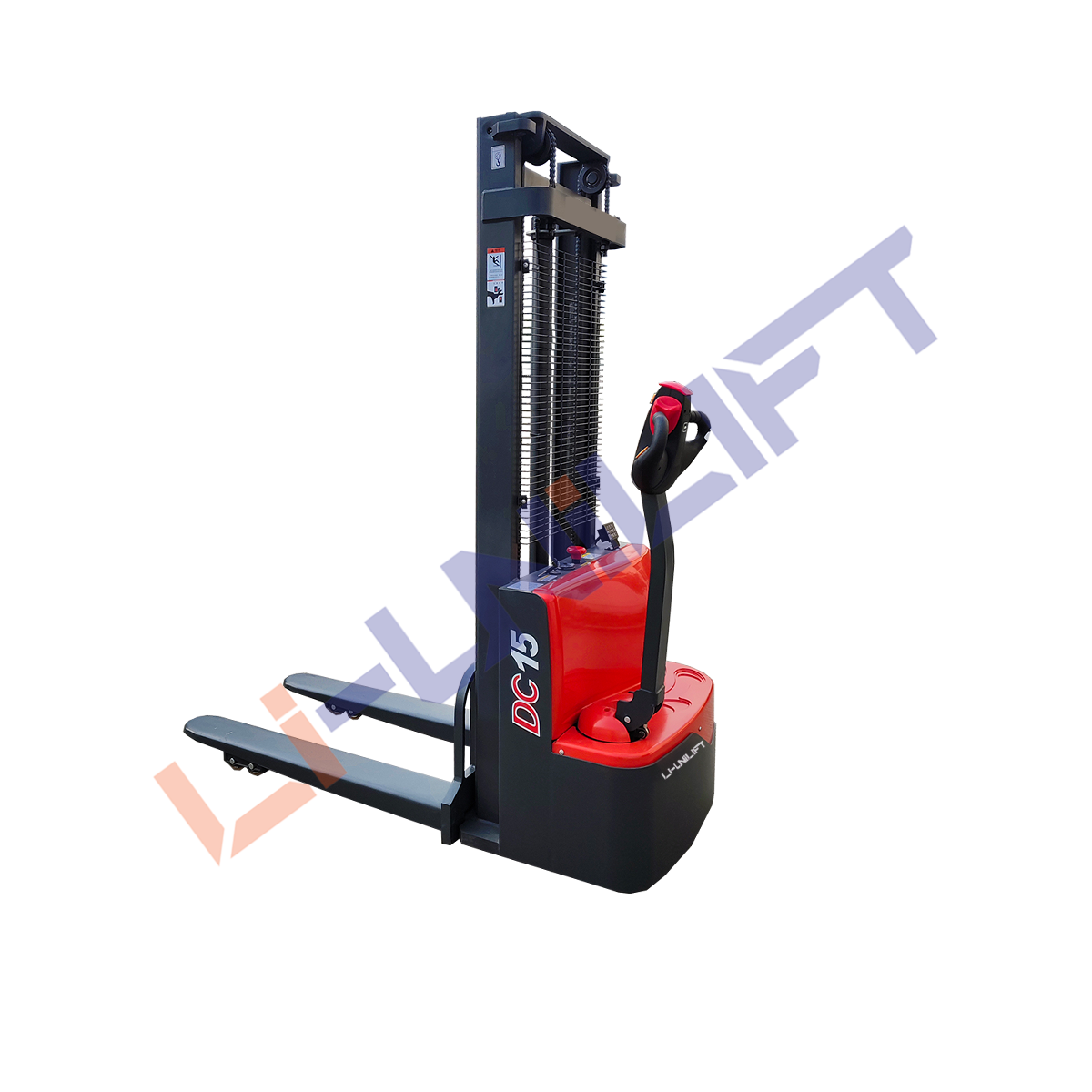

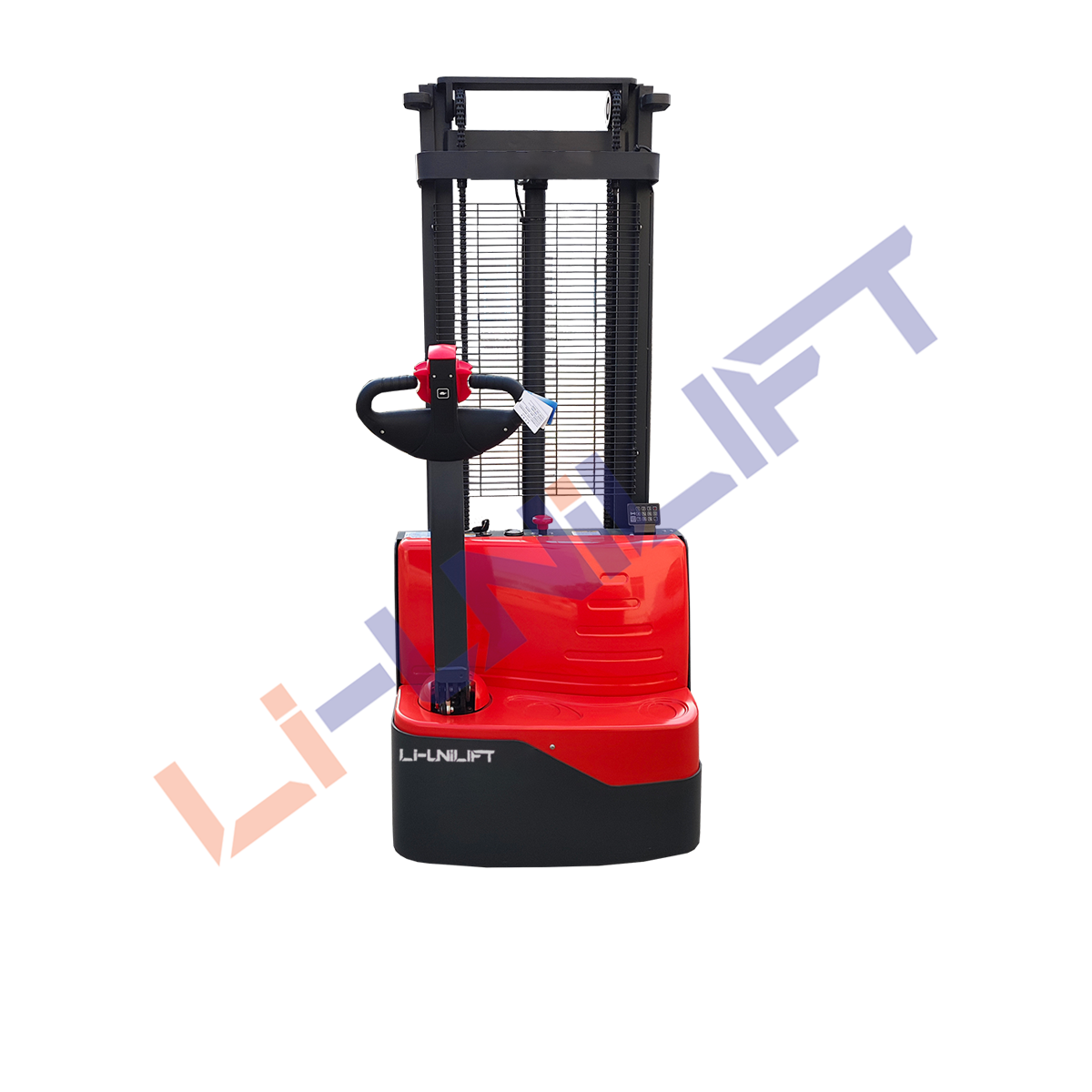

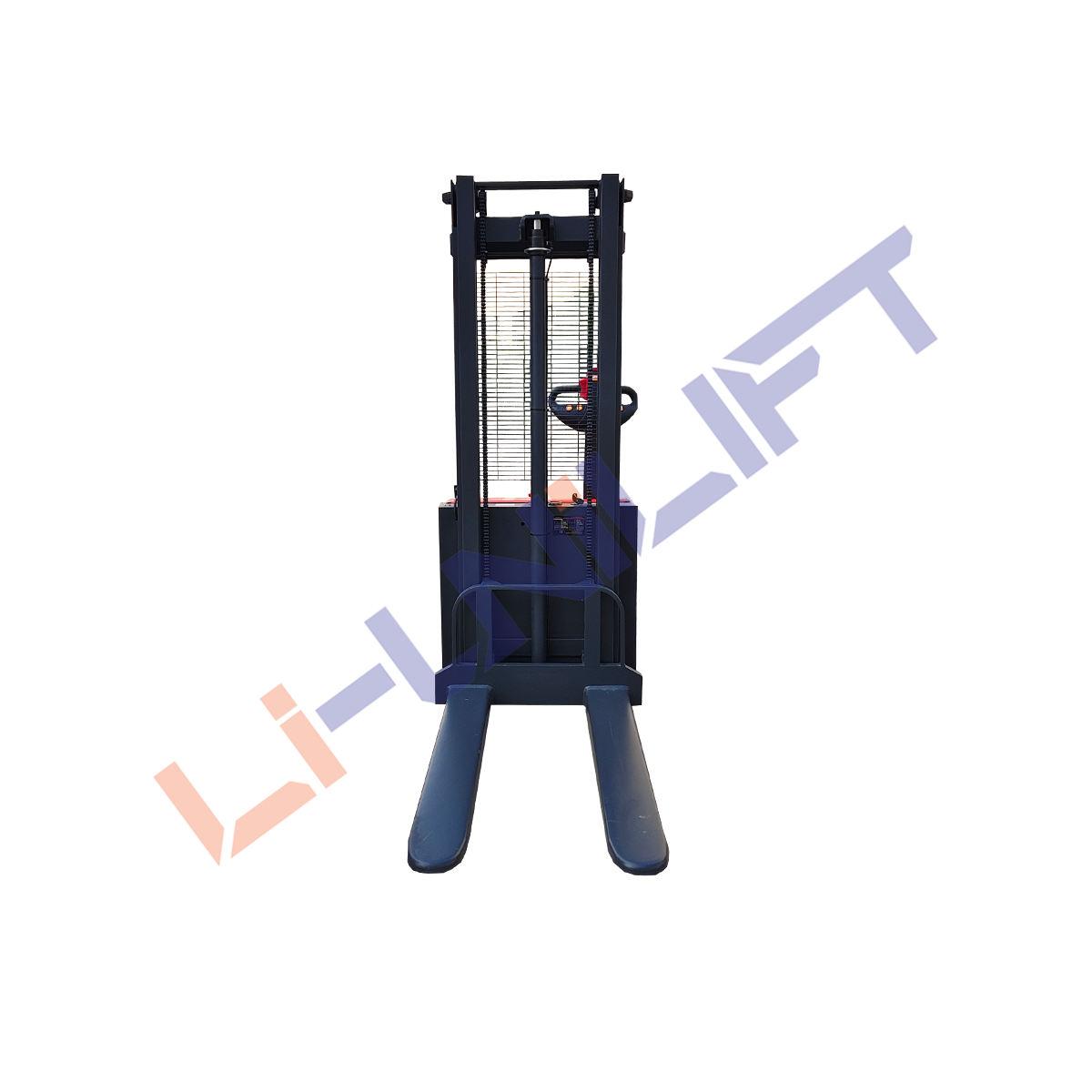

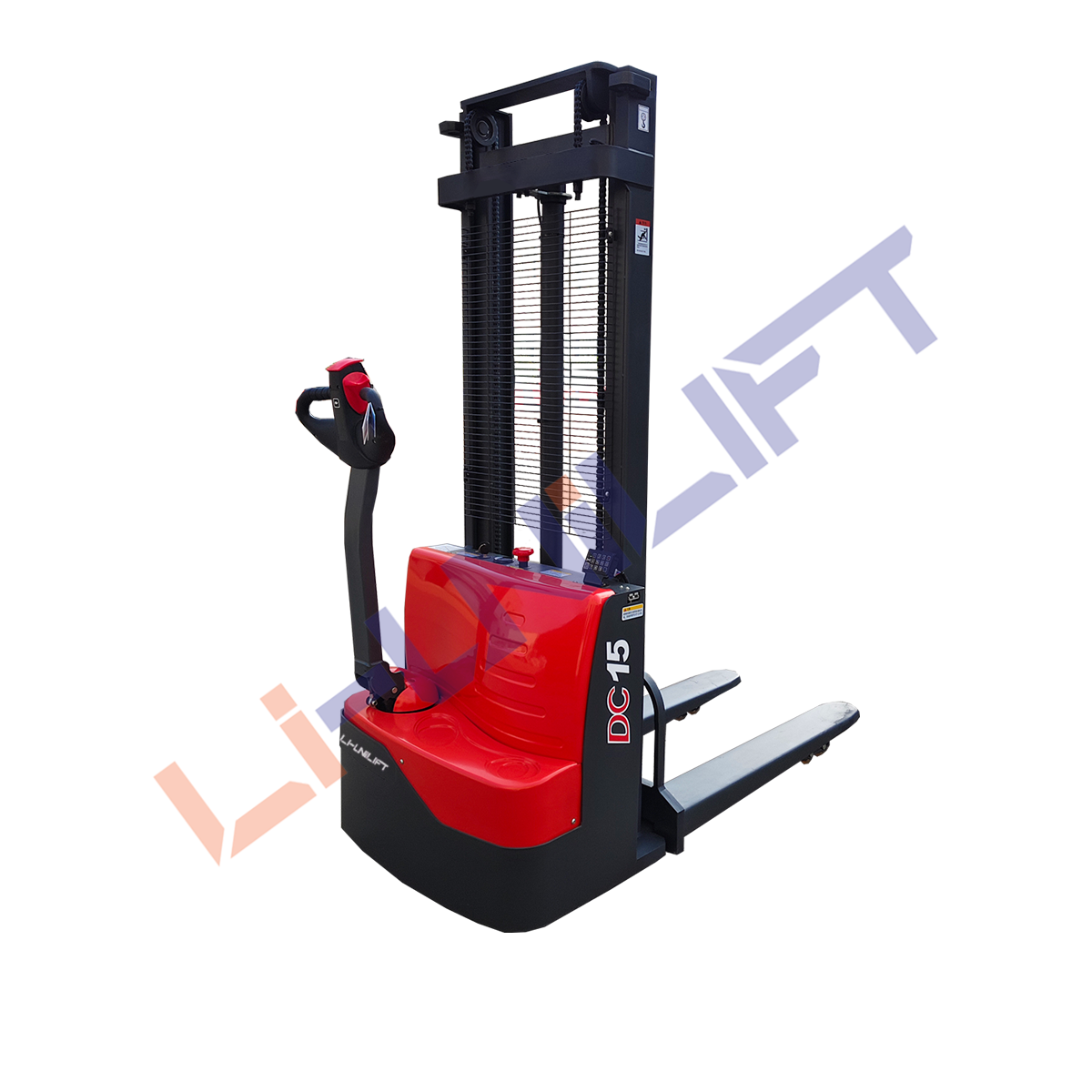

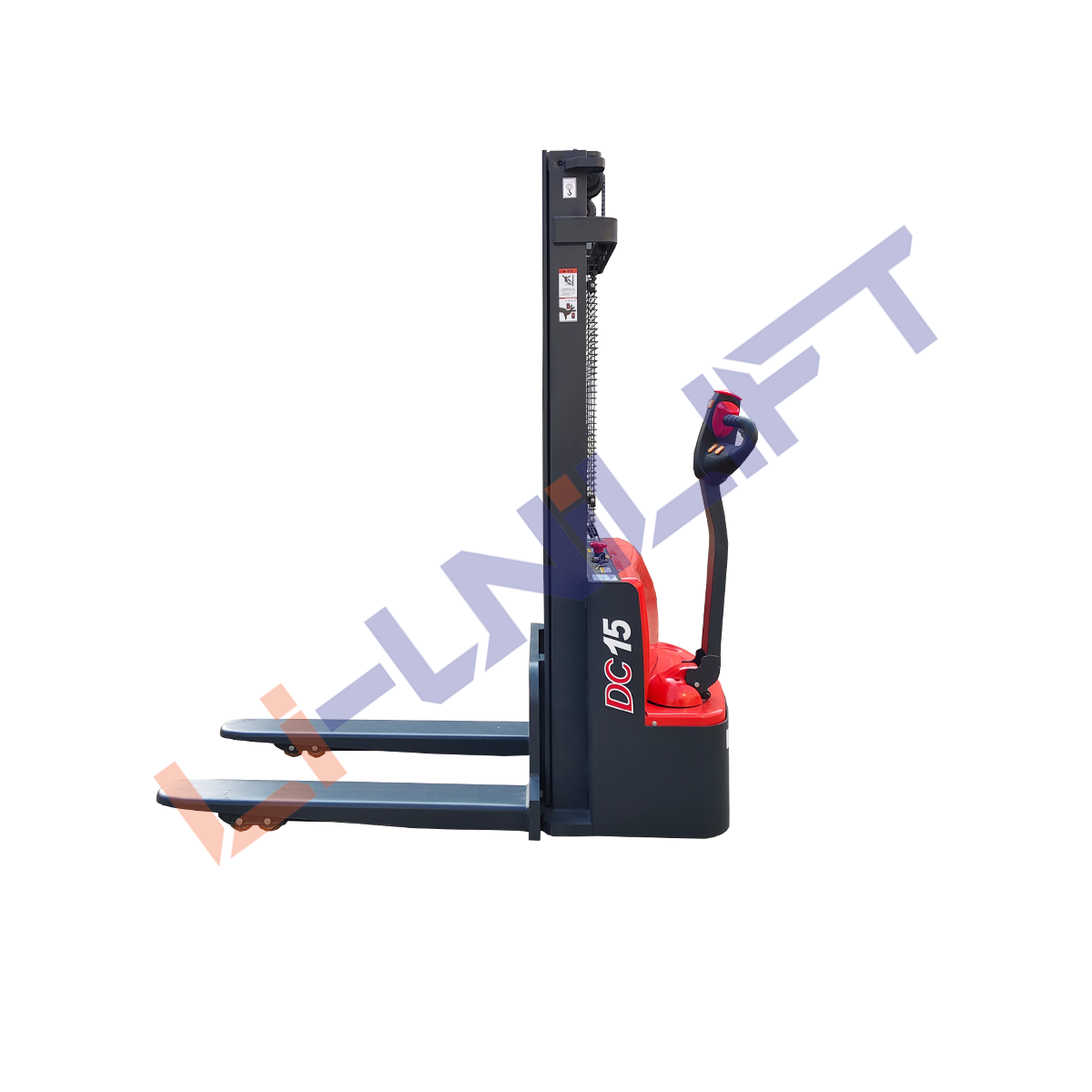

CDD Series Walkie Electric Pallet Stacker
Strong Climb, Safe Stacking — LI‑UNILIFT
Light manufacturing plants and compact storage facilities need agile walkie stackers to handle routine pallet stacking tasks. The CDD15-070ES walkie electric pallet stacker delivers a reliable 1.5-ton load capacity, with multiple mast height selections to match different racking heights and fit narrow working aisles.
Rugged Steel Build for Heavy Pallet Handling
The CDD15-070ES stacker adopts high-strength C-section steel mast and fork construction. This solid frame resists deformation and maintains stable performance through repeated lifting cycles. Users can pick standard lift heights from 1600mm up to 3200mm to align with various warehouse rack systems.
Polyurethane wheels deliver smooth travel on indoor concrete floors. Robust climbing ability allows the stacker to navigate gentle slopes within warehouses. Adjustable fork outer widths ranging from 550mm to 685mm support different pallet types for flexible material handling operations.
Intelligent Controls for Smoother Warehouse Operations
Every control feature of this pedestrian stacker improves operational efficiency while easing operator strain during long work shifts.
- The stacker automatically reduces travel speed when mast height exceeds 1.5 meters. This built-in function stabilizes elevated loads and lowers risks when operators stack goods on high racks.
- The handle comes with creep speed control and stand-on auxiliary functionality. Operators can move the truck at ultra-low speed for precise pallet placement, and use the auxiliary function for short-distance riding between work zones.
- Mechanical steering offers straightforward, responsive handling. A compact turning radius helps operators maneuver within tight aisles where larger material handling machines cannot operate.
Multi-Layer Safety Protection for Pedestrian Operators
Safety mechanisms are integrated deeply into the stacker’s design to protect warehouse staff and stored inventory. The mast includes a mesh safety guard that stops loose debris from falling toward the operator during lifting work.
An emergency stop switch sits on the control handle. It cuts power instantly if operators encounter sudden hazards. In addition, the limit extender protects motors and batteries, extending component service life and reducing unexpected downtime during busy shifts.
Low Maintenance Design to Cut Long-Term Costs
Careful component selection and layout minimize routine maintenance work and extend the overall service life of the walkie stacker.
- Maintenance-free motor and battery structures reduce regular inspection tasks and part replacement frequency.
- Built-in mast height limit function prevents over-lifting, which avoids unnecessary wear to hydraulic assemblies and mast structures.
- Accessible emergency stop hardware allows quick functional checks during daily pre-shift equipment inspections.
- Durable PU wheels hold up well against daily abrasion and keep rolling resistance low for consistent travel performance.
Redefining Compact Walkie Stacker Capabilities for Intralogistics
Today’s small and mid-sized warehouses seek space-efficient lifting equipment that balances payload capacity, safety features and easy upkeep. The CDD15-070ES walkie electric pallet stacker combines heavy-duty steel construction, automatic speed reduction and multi-safety protections to serve production workshops, retail storage rooms and small distribution hubs.
Beyond dependable lifting performance, our engineering team prioritizes operator safety and flexible handling functions. This pedestrian stacker completes daily pallet stacking work reliably and helps warehouse managers control long-term fleet operating expenses.
Technical Specifications
| Feature | Unit | |
|---|---|---|
| Model | CDD15-070ES | |
| Load capacity | kg | 1500 |
| Wheels type | PU | |
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/1/4 | |
| Outside width between forks | mm | 550/600/650/685 |
| Inside width between forks | mm | 230/280/330/365 |
| Fork size(length/width/thickness) | mm | 1150/160/70 |
| Overall length | mm | 1755 |
| Overall width | mm | 790 |
| Travel speed,laden/unladen | km/h | 4/4 |
| Gradeability,laden/unladen | % | 5/7 |
| Drive control type | DC0.75/DC2.2 | |
| Steering type | Mechanical steering |
