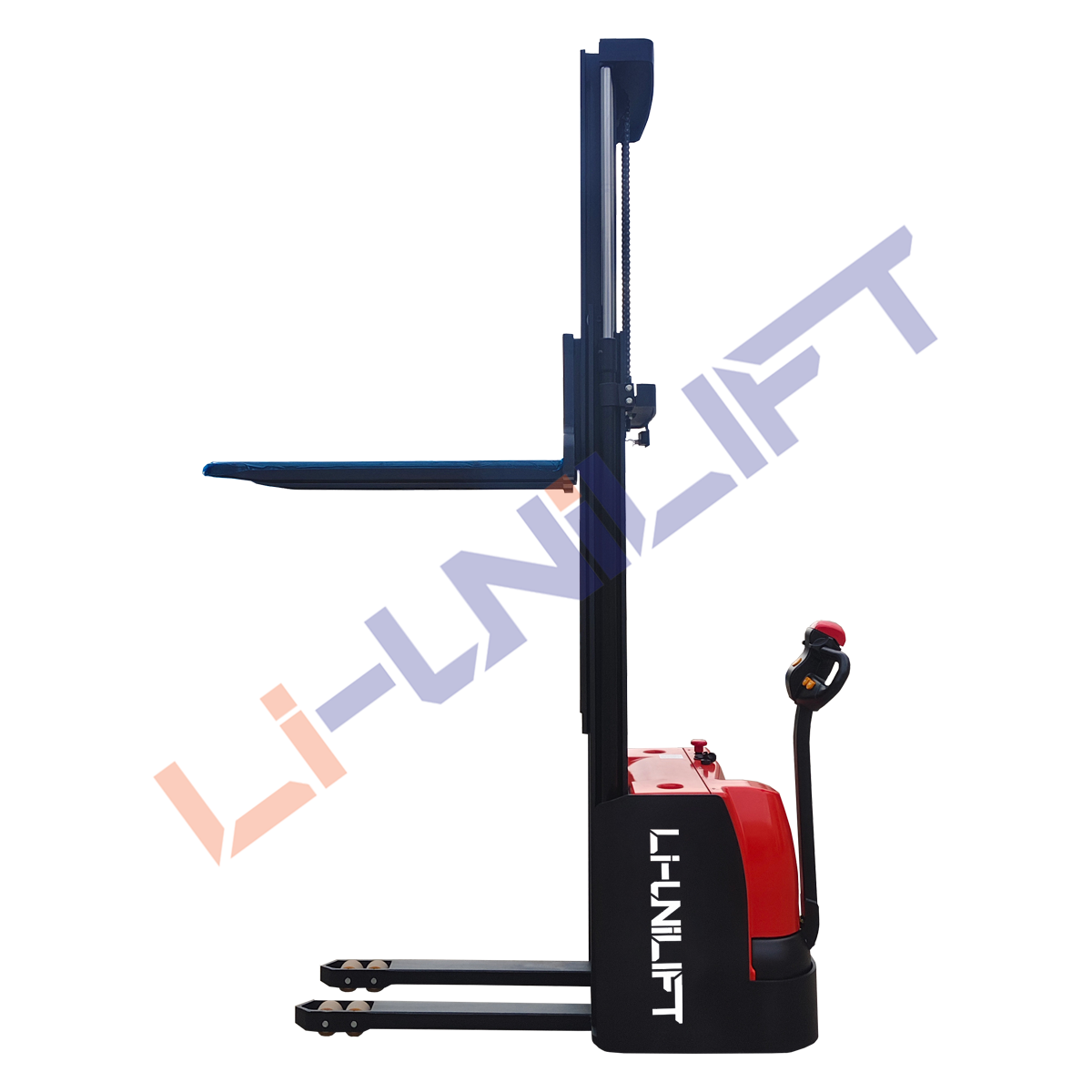

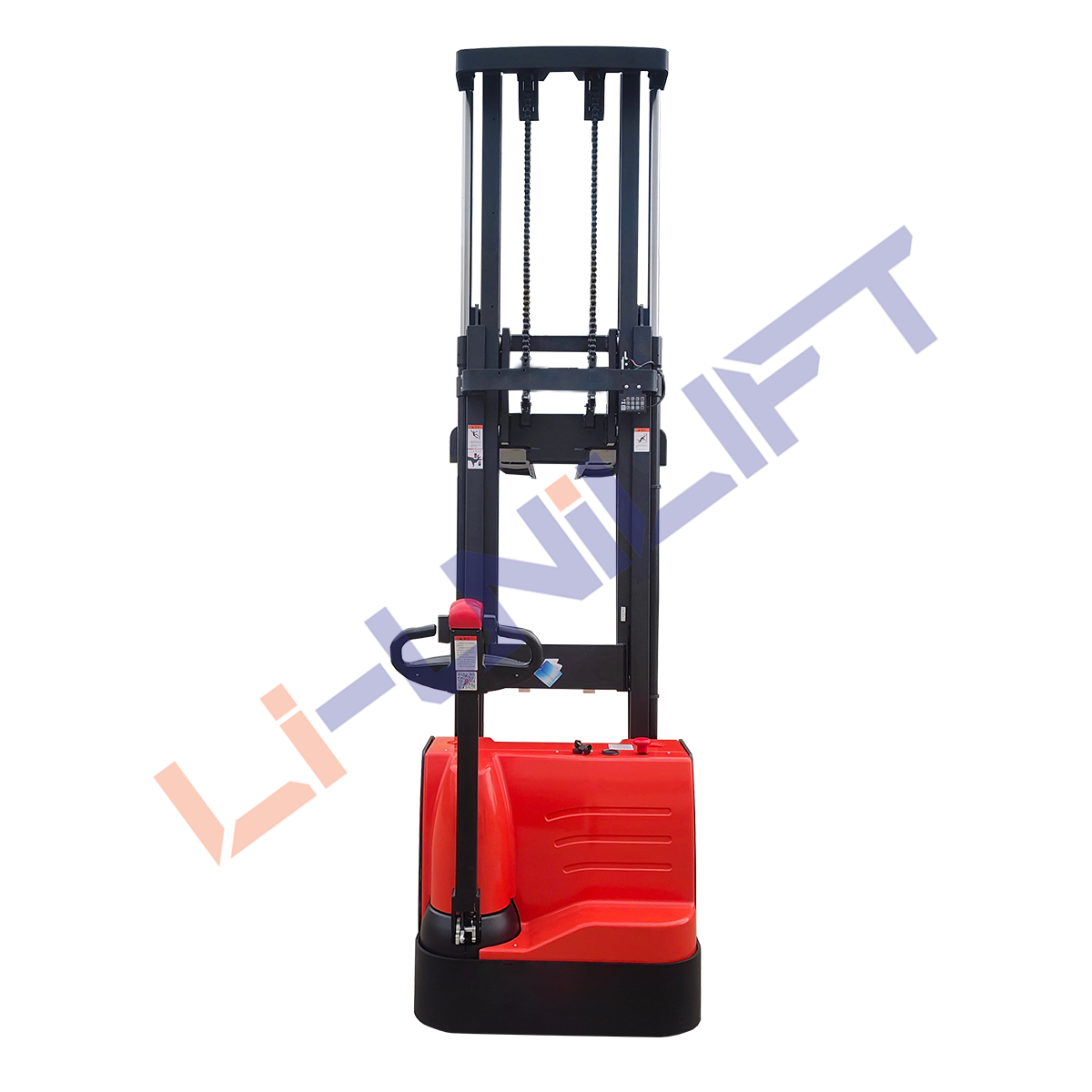

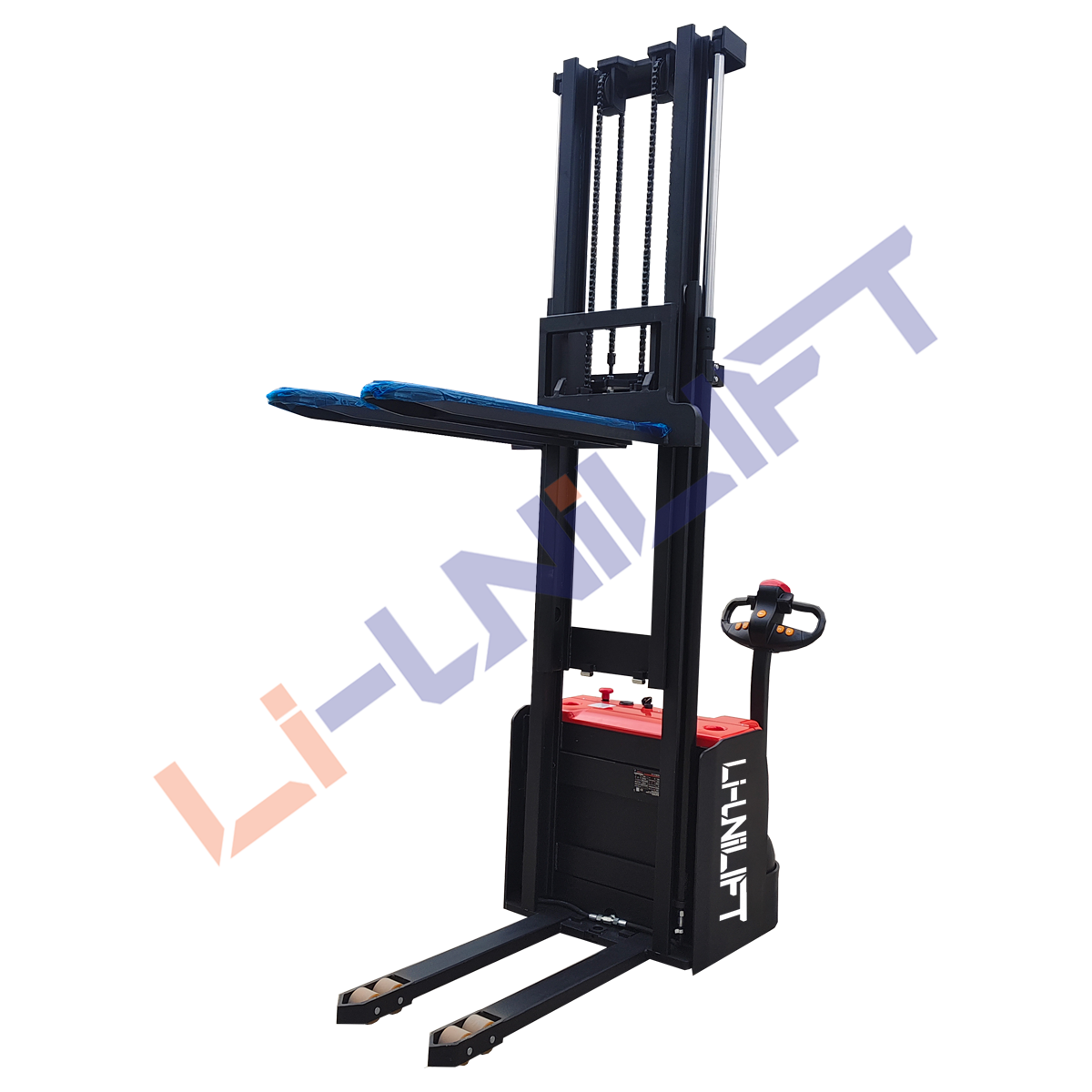

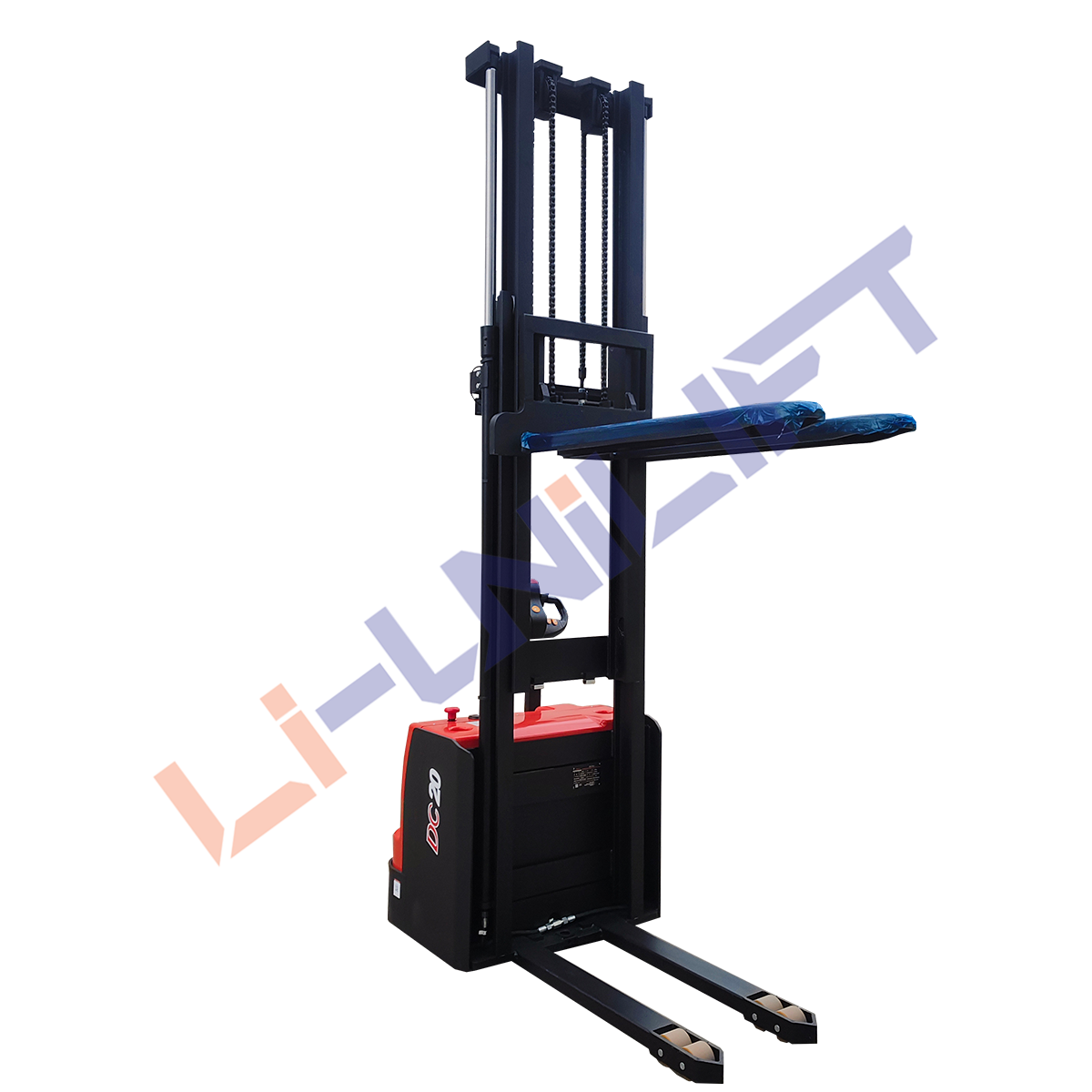

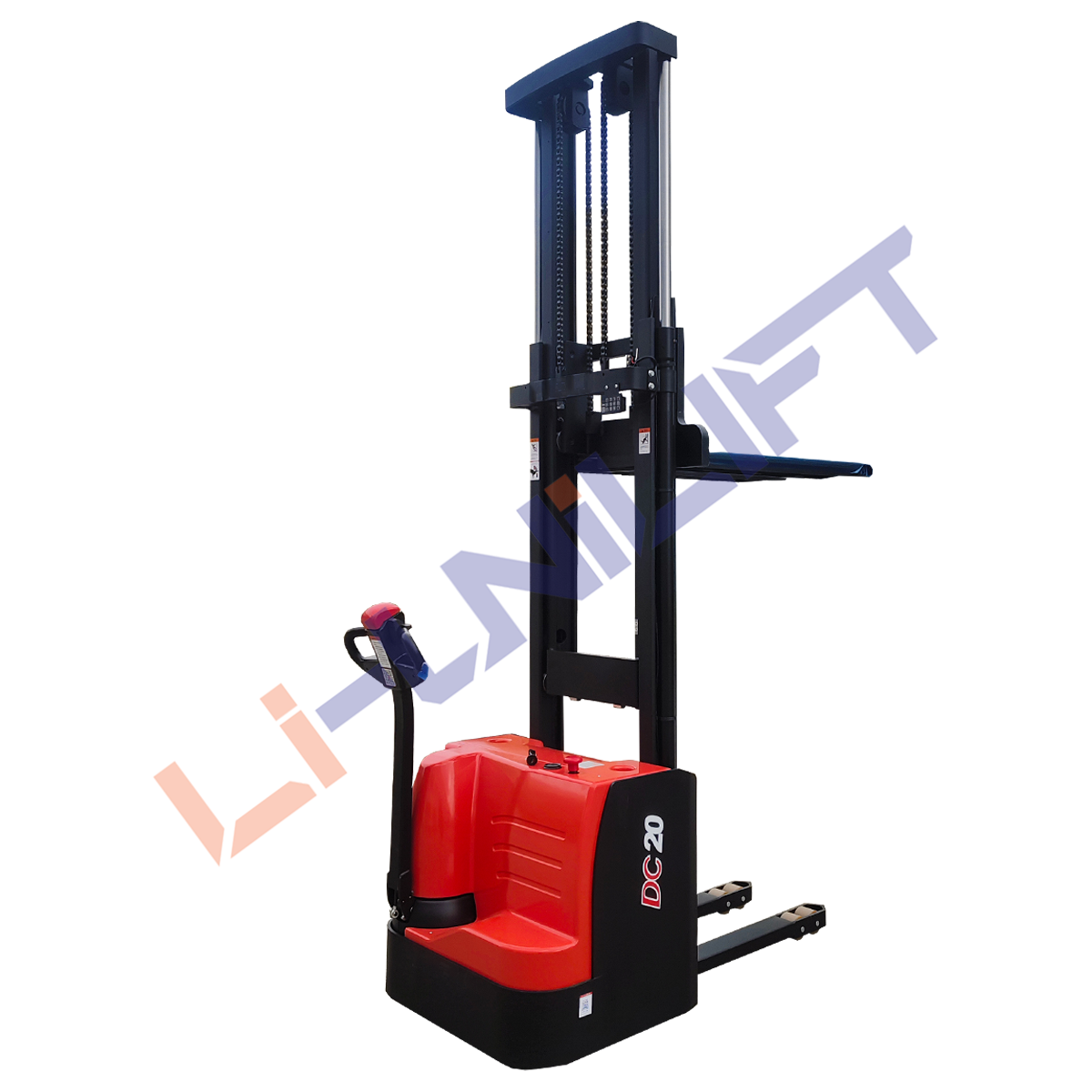

CDD Series Walkie Electric Pallet Stacker
Brushless Power, Secure Stacking — LI‑UNILIFT
Small to mid-sized warehouses and production workshops need compact walkie stackers that deliver reliable lifting capacity without taking up valuable floor space. The CDD16/20-070E walkie electric pallet stacker supports 1.6-ton and 2-ton load capacities, with multiple mast height options to match various racking configurations for daily stacking and retrieval work.
Built Tough for Long-Term Warehouse Operations
The CDD16/20-070E walkie stacker uses a robust steel mast and fork assembly built to withstand repeated lifting cycles. Operators can pick standard lift heights ranging from 2000mm to 3300mm to fit different storage rack heights. Polyurethane wheels provide stable rolling performance on indoor concrete floors, while the built-in balance wheel enhances overall stability during travel and load handling.
A permanent magnet brushless drive motor forms the core power unit of this stacker. This motor requires almost no routine maintenance, maintains high energy efficiency and promises a long service life for multi-shift warehouse use. The offset drive layout opens up a wider field of view for operators and reduces blind spots during pallet handling.
Optimized Handling for Narrow Aisle Workflows
Every operating feature of this pedestrian stacker is engineered to deliver stable, intuitive control and boost work efficiency.
- Mechanical steering brings simple and responsive handling. Operators navigate tight warehouse aisles with ease, aided by a compact turning radius that minimizes the space required to reposition the truck.
- Adjustable fork outer widths from 550mm up to 685mm accommodate different pallet sizes, including Euro pallets and standard industrial pallets. This adaptability removes the need to switch material handling equipment for mixed pallet types.
- Flexible travel and lifting speeds adapt to different working zones. Users can move faster in open warehouse areas and slow down for precise pallet positioning when approaching storage racks.
Multi-Layer Safety Design for Pedestrian Operation
Safety functions are integrated into every key component of this walkie stacker to protect operators and inventory during daily operation. An emergency stop switch and emergency reverse device come as standard equipment. These controls stop the truck instantly when operators encounter unexpected obstacles.
The lifting limit switch automatically halts mast upward movement once the preset height is reached. This mechanism prevents over-lifting damage to the mast structure and saves unnecessary power consumption. The extra balance wheel keeps the truck steady when carrying heavy loads, lowering the risk of load tipping during travel.
Low-Upkeep Design to Reduce Operational Downtime
Thoughtful mechanical and electrical design cuts maintenance workload and extends the usable service life of the walkie stacker.
- Permanent magnet brushless drive motors eliminate carbon brush replacement work and lower long-term service costs.
- Offset drive layout protects key drive components while delivering a wide operator view.
- Standard lifting limit switches prevent mast overtravel and reduce wear on hydraulic and mast parts.
- Emergency stop and emergency reverse hardware stay easy to inspect and test during regular equipment checks.
Advancing Brushless Walkie Stacker Intralogistics Performance
Modern intralogistics operations seek pedestrian lifting equipment that balances compact dimensions, solid load capacity and low maintenance needs. The CDD16/20-070E walkie electric pallet stacker combines durable brushless power, stable balance wheel design and comprehensive safety features to serve retail warehouses, manufacturing workshops and distribution centers.
Alongside dependable lifting power, our engineering team focuses on operator visibility and reliable safety protections. This walkie stacker handles frequent pallet stacking tasks and helps warehouse teams maintain stable throughput while keeping long-term operating expenses in check.
Technical Specifications
| Feature | Unit | |||
| Load capacity | kg | 1600 | 2000 | |
| Wheels type | PU | |||
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |||
| Outside width between forks | mm | 550/600/650/685 | ||
| Inside width between forks | mm | 180/230/280/315 | ||
| Fork size(length/width/thickness) | mm | 1150/185/55 | ||
| 0verall length | mm | 1875 | 1895 | |
| Overall width | mm | 850 | ||
| Travel speed,laden/unladen | km/h | 4.5/5 | ||
| Gradeability,laden/unladen | % | 6/10 | ||
| Drive motor/Lift motor | KW | AC1.2/DC2.2 | AC1.2/DC3 | |
| Controller | HELI | |||
