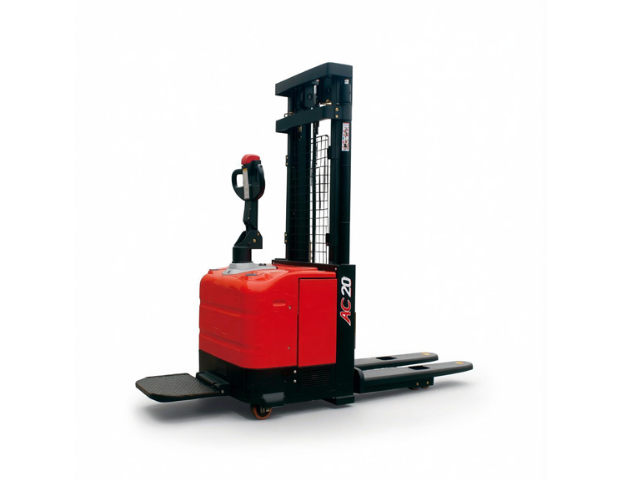

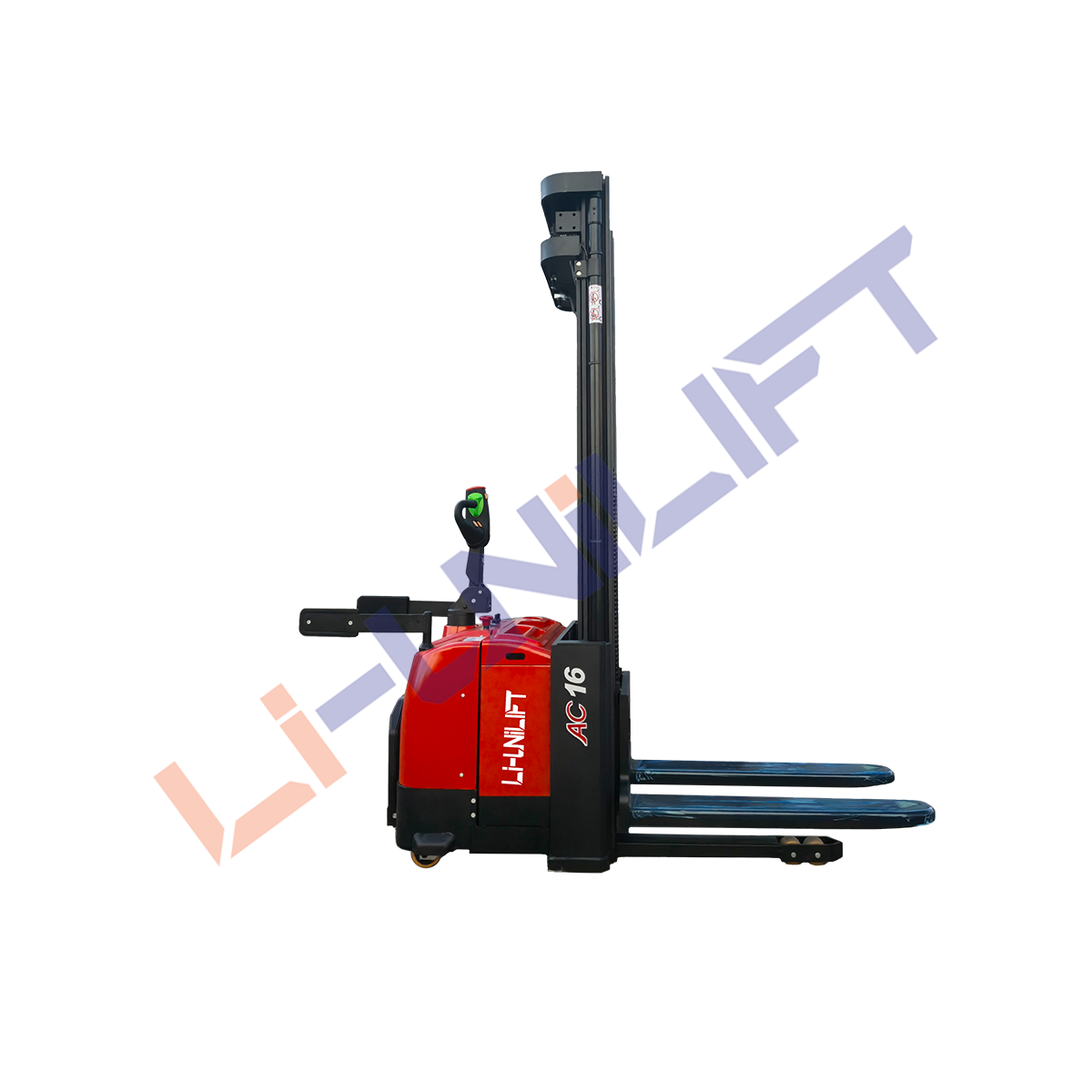

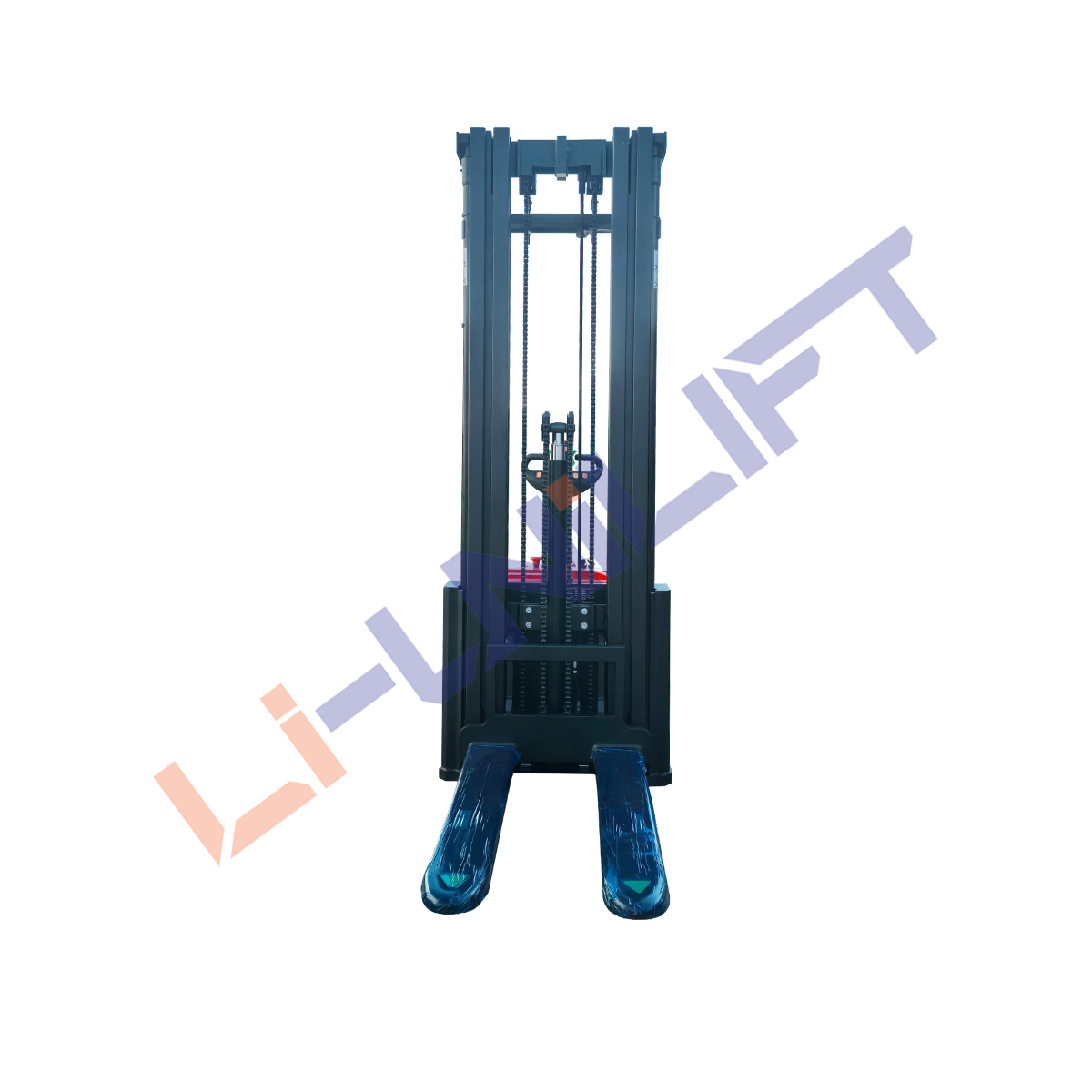

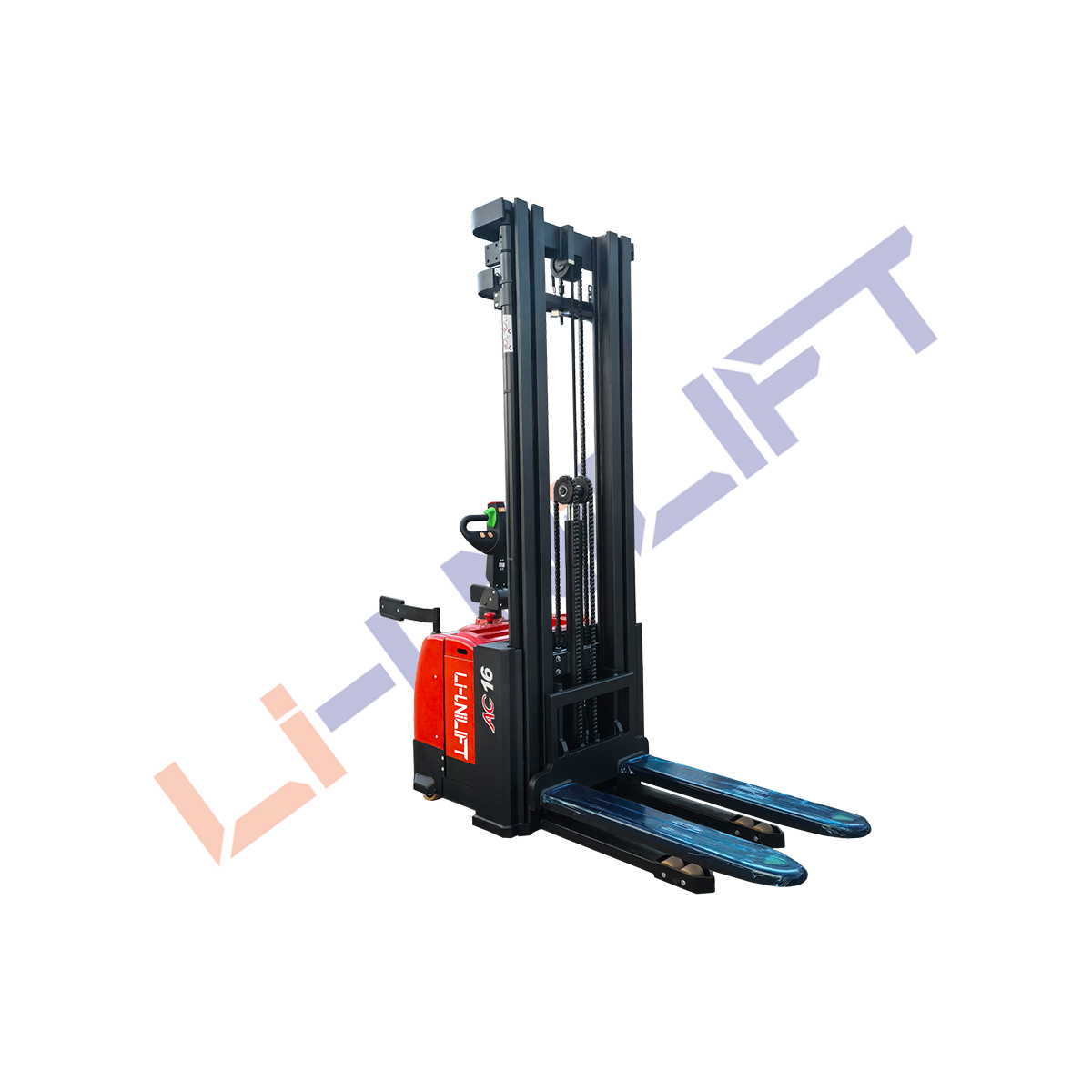

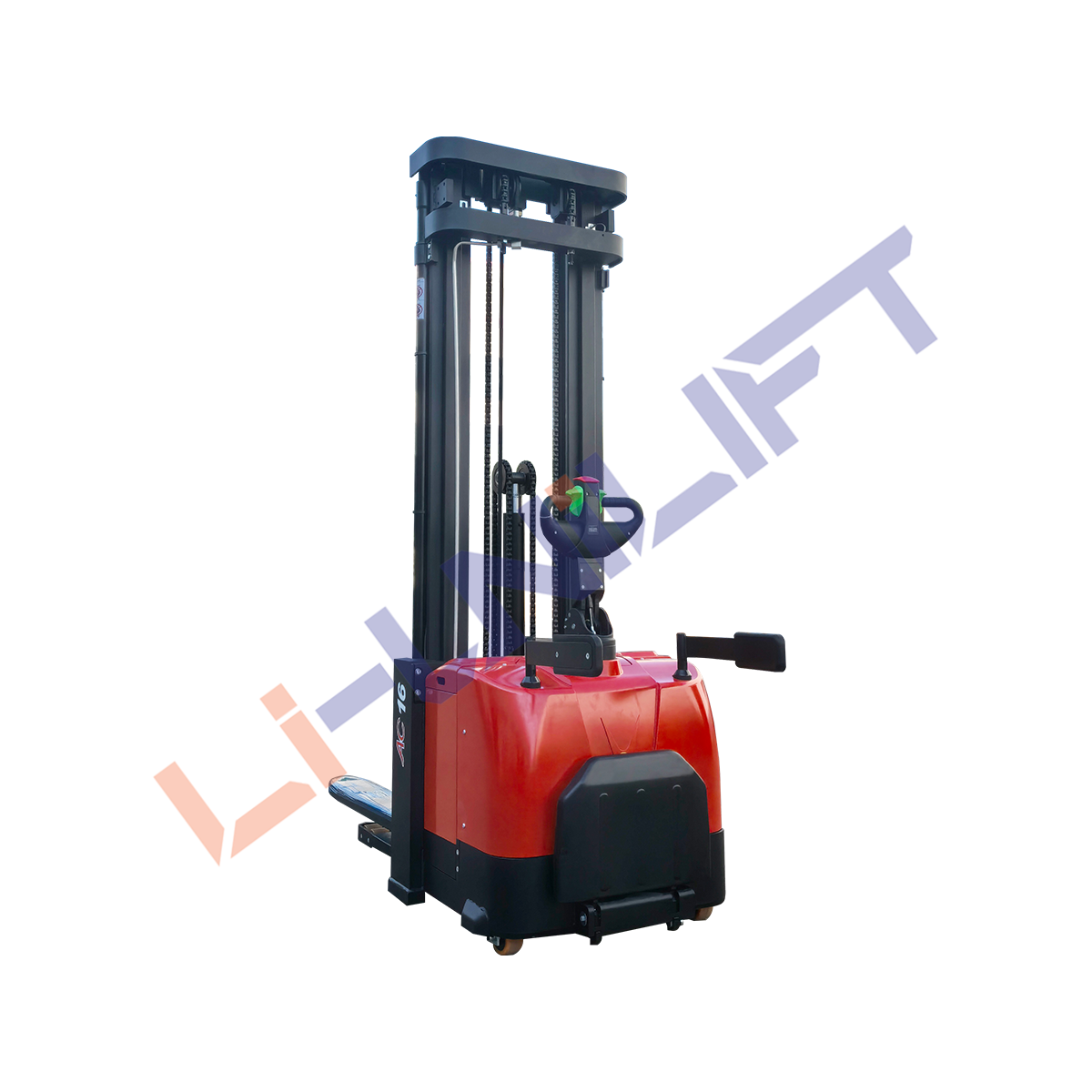

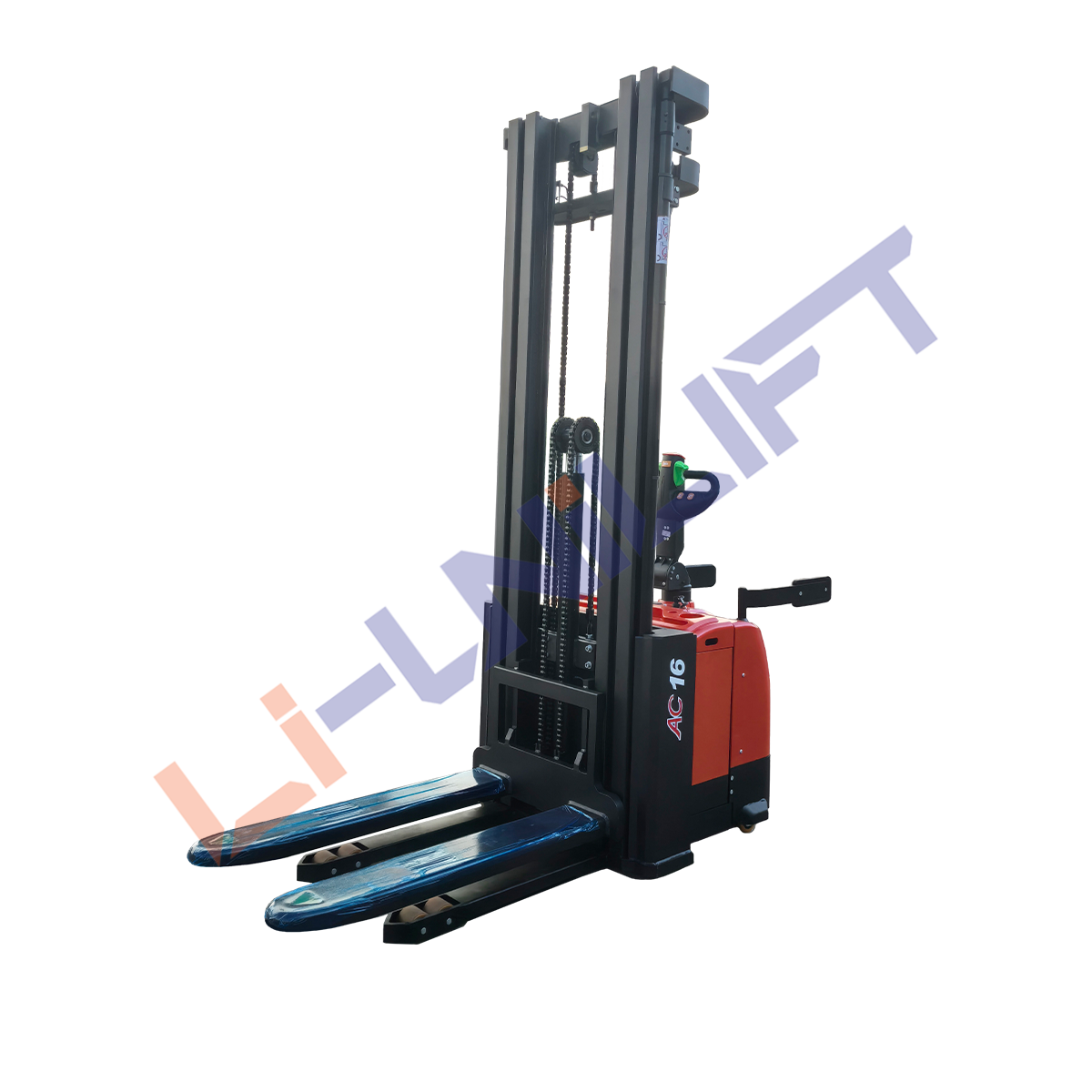

CDD Series Walkie Electric Pallet Stacker
Precise Lifting, Nimble Warehouse Handling — LI‑UNILIFT
Warehouse stacking equipment needs consistent power and flexible control to handle daily pallet workflows. The CDD Series walkie electric stacker hits that mark, with 1.6-ton and 2-ton load capacities and a choice between two-stage standard masts and three-stage full free lift masts for different racking setups.
Tough Build for All-Day Pallet Stacking Tasks
The CDD walkie stacker uses a solid welded frame to withstand repeated lifting cycles in busy warehouses. Operators pick from a wide range of lifting height options, from short 1400mm lifts all the way up to 5800mm maximum heights, so this stacker fits low racking and high-bay storage alike.
Polyurethane wheels deliver stable rolling on smooth concrete floors. An AC drive motor removes carbon brushes to cut routine maintenance and downtime. The patented floating drive unit maintains steady contact with uneven floors, absorbs vibration and protects core drive components from premature wear.
Intuitive Controls for Effortless Operation
Every control on the CDD pedestrian stacker supports smooth operation and less operator strain during long shifts.
- Electronic power steering feels light and quiet. Three adjustable travel speed modes let operators match truck speed to narrow aisles or open warehouse zones.
- A two-way magnetic lowering valve delivers steady, predictable fork descent. Automatic lifting limit switches stop over-travel and protect both the mast and stacked inventory from impact damage.
- Curve automatic deceleration kicks in when the truck turns. It slows travel speed during cornering and lowers the risk of load spillage in tight warehouse corners.
Multi-Layer Safety for Busy Warehouse Floors
The CDD walkie stacker integrates practical safety features to reduce hazards during pallet handling. Whenever loads sit at elevated heights, the truck automatically reduces travel speed to stabilize cargo. An emergency reverse function and emergency brake switch stand ready to stop movement instantly if operators encounter sudden obstacles.
The on-board controller includes multiple automatic protection modes. It continuously monitors system status and limits power if it detects abnormal working conditions to shield the motor and battery from overload damage.
Low Maintenance to Cut Operational Downtime
The CDD walkie stacker’s design keeps service work simple and extends overall equipment lifespan.
- Brushless AC motors hold fewer wearable internal parts and trim long-term service costs.
- The patented floating drive mechanism absorbs floor irregularities and guards the drive assembly against shock loads.
- Emergency reverse and brake components feature simple layouts for quick inspection and part replacement.
- Heavy-duty proximity limit switches manage mast lifting travel and maintain reliable performance over thousands of lift cycles.
Redefining Walkie Stacker Intralogistics Solutions
Modern warehouse operations demand compact, adaptable lifting equipment that balances performance, safety and affordability. The CDD walkie electric pallet stacker combines versatile mast options, responsive AC power and intelligent safety logic to serve small warehouses, distribution workshops and retail storage facilities.
Beyond raw lifting strength, our engineering team prioritizes operator comfort, compact footprint and easy service access. This pedestrian stacker streamlines pallet stacking and retrieval tasks while keeping ongoing operational costs manageable for warehouse managers.
Technical Specifications
| Unit | ||||||||||||
| Load capacity | kg | 1600 | 2000 | |||||||||
| Wheels type | PU | |||||||||||
| Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |||||||||||
| Fork size(length/width/thickness) | mm | 1150(1220)/185/55 | ||||||||||
| Overall length | mm | 2050/2470 | 2105/2525 | 2050/2470 | ||||||||
| Overall width | mm | 856 | 957 | 856 | ||||||||
| Travel speed,laden/unladen | km/h | 6-6 | ||||||||||
| Gradeability,laden/unladen | % | 6-8 | ||||||||||
| Drive motor/Lift motor/Steering motor | kW | AC1.5/DC3/DCO.15 | ||||||||||
| Controller | ZAPI | |||||||||||
