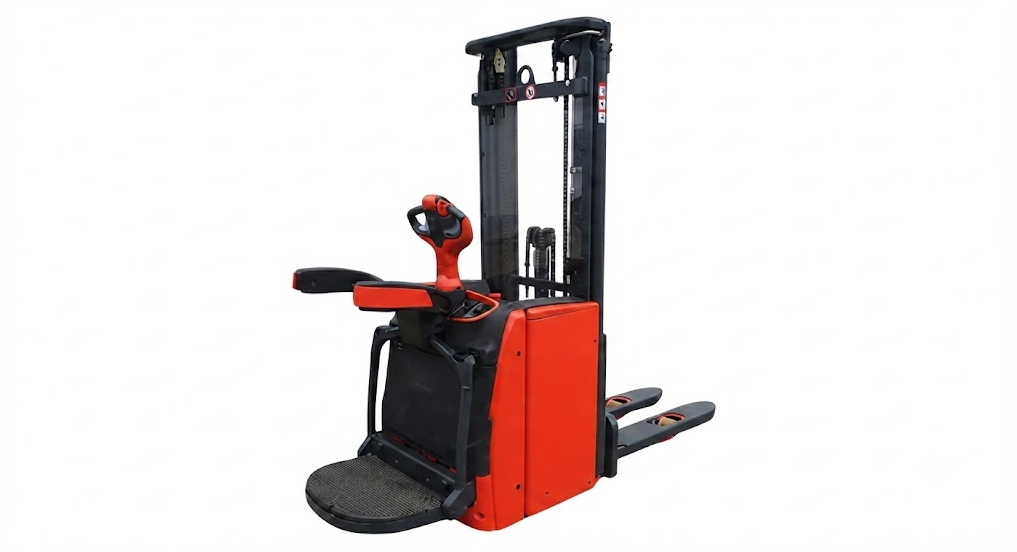

CDD Series Stand‑On Lithium Electric Pallet Stacker
Lithium Power, High-Rack Stacking — LI‑UNILIFT
High throughput warehouses need robust stand-on stackers that handle heavy pallet loads and tall racking. The CDD16/20-URD(931) lithium electric pallet stacker delivers 1.6-ton and 2-ton load capacities, with two-stage and three-stage full free mast options to support both standard and high-bay storage operations.
Heavy-duty Construction for Demanding High Level Stacking
The CDD URD stand-on stacker uses a solid welded steel chassis to withstand continuous heavy lifting cycles. Customers select from a broad range of mast heights, covering 2500mm all the way up to 6000mm, so the unit fits low racking and very high storage rack systems.
Polyurethane wheels deliver stable rolling on smooth concrete warehouse floors. Powerful AC drive and lift motors provide responsive travel and lifting performance, even when the stacker carries maximum rated loads. A lithium battery pack comes standard for fast charging and long working hours across multi-shift operations.
Precision Operation for Fast Pallet Handling Workflows
Every control element of this stand-on stacker supports efficient, low-fatigue operation for operators working long warehouse shifts.
- Compact stand-on layout maintains a tight turning radius. Operators navigate narrow warehouse aisles smoothly while keeping clear sightlines to the fork tips for accurate pallet placement.
- Adjustable travel and lifting speeds match different working conditions. Operators pick faster speeds for open zones and slower, precise movement near racking to avoid damaging goods and rack structures.
- The two mast configurations offer flexible lifting capabilities. The three-stage full free mast lifts without extending the outer mast, making it ideal for operation through low doorways inside buildings.
Built-In Safety Controls for Rider Operation
Safety is embedded into every design choice for this stand-on lithium stacker, as operators ride on the vehicle during pallet transport and stacking. The responsive control system monitors travel and lifting movements constantly to prevent unsafe operation.
The sturdy operator compartment creates a protected workspace during load movement. The machine limits travel speed automatically while carrying elevated loads, which stabilizes cargo and lowers tipping risks. The reliable QEXPEND controller protects motor and battery systems from overload during heavy-duty tasks.
Low Maintenance Design to Maximize Uptime
The lithium-powered stand-on stacker reduces routine maintenance requirements and extends usable machine hours.
- Lithium battery technology supports opportunity charging, eliminating the need for battery swapping during shift breaks.
- AC drive and lift motors have fewer wearable parts, cutting long-term service expenses for warehouse managers.
- Optional two-stage or three-stage mast assemblies use high-quality hydraulic components for consistent lifting performance over thousands of cycles.
- Easy access to the controller and core electrical parts simplifies diagnostic checks and component replacement during scheduled maintenance.
Shaping High-Capacity Lithium Stacker Intralogistics
Modern distribution centers seek material handling equipment that combines high lifting heights, heavy load capacity and efficient lithium power. The CDD16/20-URD(931) stand-on electric pallet stacker merges rugged steel build, flexible mast choices and long-life lithium battery performance to serve manufacturing plants, large distribution warehouses and high-bay storage facilities.
Beyond raw lifting strength, our engineering team prioritizes operator protection, narrow aisle maneuverability and rapid charging capability. This lithium stacker keeps pallet stacking operations productive and reduces overall fleet running costs for warehouse operators.
Technical Specifications
| Feature | Unit | |||
| Load capacity | kg | 2000 | ||
| Wheels type | PU | |||
| Fork size(length/width/thickness) | mm | 1150/185/60 | ||
| Overall length | mm | 2475 | ||
| Overall width | mm | 850 | ||
| Travel speed,laden/unladen | km/h | 6/6 | ||
| Gradeability,laden/unladen | % | 6/8 | ||
| Drive motor/Lift motor | KW | AC1.5/DC3.0 | ||
| Controls | QEXPEND | |||
