Product Definition

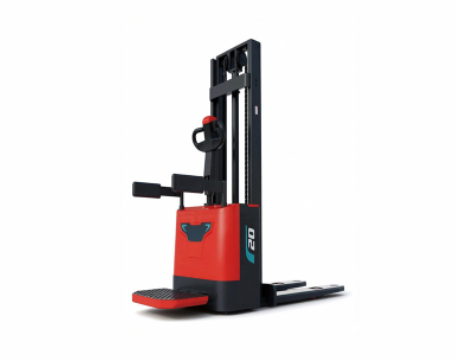

The CDD16/20-TF Electric Pallet Stacker is a 1.6–2.0 ton stand-on electric pallet stacker designed for pallet lifting, stacking, and short-distance transportation in warehouses, factories, logistics centers, and industrial storage environments.
Unlike traditional walkie electric stackers, the CDD16/20-TF adopts a stand-on riding platform design, allowing operators to ride the equipment during operation. This improves working efficiency, reduces operator fatigue, and makes it suitable for frequent pallet movement and medium-duty stacking applications.
The series includes:
- CDD16-TF: 1.6 Ton Electric Pallet Stacker
- CDD20-TF: 2.0 Ton Electric Pallet Stacker
Both models are designed for high-efficiency warehouse handling with standard lift heights of approximately 3000–4000mm depending on mast configuration.
1. 1.6–2 Ton Load Capacity
The CDD16/20-TF provides strong lifting capability for medium-duty warehouse applications.
| Model | Rated Capacity |
|---|---|
| CDD16-TF | 1600 kg |
| CDD20-TF | 2000 kg |
Suitable for:
- Warehouse pallet stacking
- Rack loading and unloading
- Production line material supply
- Heavy pallet transportation
- Internal logistics operations
Compared with 1.2–1.5 ton electric stackers, this series offers higher load capacity and better performance for heavier pallets.
2. Stand-on Rider Operation
The biggest feature of the CDD16/20-TF is the stand-on operation design.
The operator can stand on the rear platform and drive the stacker instead of walking behind it.
Advantages:
- Higher transportation efficiency
- Reduced operator fatigue
- Suitable for long-distance movement
- Improved productivity
- Better driving comfort
It is especially suitable for:
- Large warehouses
- Distribution centers
- Manufacturing plants
- High-frequency material handling operations
3. Efficient Electric Drive System
The CDD16/20-TF uses an electric drive system to provide smooth and reliable performance.
Advantages:
- Low noise operation
- Zero exhaust emissions
- Lower maintenance cost
- Stable acceleration
- High energy efficiency
The electric power system makes it suitable for indoor applications where environmental protection and operating comfort are important.
4. Stable Mast Structure
The stacker is equipped with a high-strength mast system designed for safe lifting operations.
Features:
- Strong mast rigidity
- Stable lifting performance
- Good visibility during operation
- Multiple lifting height options
Standard lifting height options include:
- 3000 mm
- 3500 mm
- 4000 mm
depending on configuration.
5. Compact Structure & Small Turning Radius
The CDD16/20-TF is designed for efficient operation in limited warehouse spaces.
Advantages:
- Compact body design
- Flexible maneuverability
- Suitable for narrow aisles
- Easy pallet positioning
Reference specifications:
- Overall width: approximately 780 mm
- Minimum turning radius: approximately 1393 mm
6. Safety Control System
The CDD16/20-TF integrates multiple safety functions to improve operational reliability.
Safety features include:
- Electromagnetic braking
- Regenerative braking
- Emergency stop function
- Anti-roll-back protection
- Slope safety control
These functions help improve stability when transporting and stacking loads.
7. Ergonomic Control Design
The operator control system is designed for easy and comfortable operation.
Main functions include:
- Forward/reverse control
- Lifting and lowering control
- Speed adjustment
- Emergency stop
- Battery status display
This reduces operator fatigue during long working periods.
Technical Specifications
| Parameter | CDD16-TF | CDD20-TF |
|---|---|---|
| Rated Capacity | 1600 kg | 2000 kg |
| Operation Type | Stand-on | Stand-on |
| Load Center | 600 mm | 600 mm |
| Lift Height | 3000/3500/4000 mm | 3000/3500/4000 mm |
| Fork Length | 1150 mm | 1150 mm |
| Fork Width | 550/600/650/885 mm | 550/600/650/885 mm |
| Travel Speed (Loaded/Unloaded) | 4/5 km/h | 4/5 km/h |
| Battery Voltage | 48V | 48V |
| Battery Capacity | 65Ah | 65Ah |
| Drive Motor | BLDC 1.0 kW | BLDC 1.2 kW |
| Lift Motor | DC 2.2 kW | DC 2.2 kW |
| Brake System | Electromagnetic + Regenerative | Electromagnetic + Regenerative |
| Steering | Mechanical Steering | Mechanical Steering |
Applications
1. Warehouse Storage
2. Manufacturing Facilities
3. Logistics Centers
