Product Definition

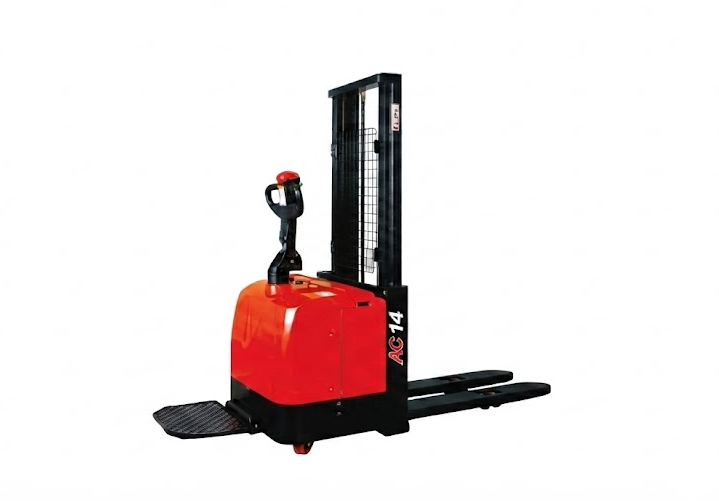

The CDD12/14-030/930/980 Electric Stacker is a walkie electric pallet stacker designed for pallet stacking, lifting, and short-distance material transportation in warehouses, factories, workshops, and logistics centers.
With a load capacity range of 1.2–1.4 tons (1200–1400kg), this electric stacker is designed for single pallet handling applications, offering a compact structure, excellent maneuverability, and efficient vertical storage capability. It is suitable for low and medium-height racking systems where space efficiency and flexibility are important.
The series includes three configurations:
- CDD12-030: 1.2 Ton electric stacker with standard 2-stage mast
- CDD14-930: 1.4 Ton electric stacker with standard 2-stage mast
- CDD14-980: 1.4 Ton electric stacker with full free lift 2-stage mast
All models feature a fork-over design, allowing the forks to directly enter pallet openings for lifting and stacking operations.
1. 1.2–1.4 Ton Load Capacity
The CDD12/14-030/930/980 series provides reliable lifting performance for light and medium-duty warehouse operations.
| Model | Rated Capacity |
|---|---|
| CDD12-030 | 1200 kg |
| CDD14-930 | 1400 kg |
| CDD14-980 | 1400 kg |
Typical applications:
- Warehouse pallet stacking
- Raw material handling
- Production line supply
- Storage area replenishment
- Indoor logistics transportation
The compact load range makes it an ideal alternative to manual stackers and small forklifts.
2. Electric Stacking & Lifting System
The CDD12/14 series uses a fully electric drive and lifting system to improve efficiency.
Advantages:
- Reduced manual labor
- Faster pallet handling
- Smooth lifting and lowering
- Lower operating noise
- Improved workplace efficiency
Compared with manual hydraulic stackers, electric operation significantly reduces operator fatigue during repeated stacking tasks.
3. Compact Fork-over Design
The fork-over structure is designed for standard pallet handling.
Benefits:
- Easy pallet entry
- Compact vehicle dimensions
- Flexible operation in narrow areas
- Suitable for small warehouses
This design is commonly used in:
- Retail warehouses
- Manufacturing workshops
- Distribution centers
- Storage rooms
4. AC Drive System
The CDD12/14 series adopts an efficient AC drive system.
Key advantages:
- Maintenance-free AC motor
- Strong traction performance
- Smooth acceleration
- Low operating noise
- High energy efficiency
The AC drive system helps improve reliability for frequent warehouse operations.
5. Electronic Power Steering System
The electric steering system provides easier and more precise control.
Benefits:
- Lightweight steering operation
- Reduced operator fatigue
- Better maneuverability
- Suitable for narrow aisles
This feature improves driving comfort during long working periods.
6. Multiple Mast Options
The CDD12/14-030/930/980 offers different mast configurations to meet different storage requirements.
| Model | Mast Type | Application |
|---|---|---|
| CDD12-030 | Standard 2-stage mast | General stacking |
| CDD14-930 | Standard 2-stage mast | Medium-height storage |
| CDD14-980 | Full free lift 2-stage mast | Low-clearance environments |
Lift height options can reach approximately 1400–4000 mm depending on configuration.
7. Safety Features
The electric stacker is equipped with multiple safety functions.
Main safety advantages:
- Electromagnetic braking system
- Regenerative braking
- Emergency reverse switch
- Automatic speed reduction at high lifting positions
- Automatic curve speed reduction
- Lifting limit protection
These systems help improve stability and operator safety during stacking operations.
Technical Specifications
| Parameter | CDD12-030 | CDD14-930 | CDD14-980 |
|---|---|---|---|
| Rated Capacity | 1200 kg | 1400 kg | 1400 kg |
| Operation Type | Walkie / Stand-on | Walkie / Stand-on | Walkie / Stand-on |
| Load Center | 600 mm | 600 mm | 600 mm |
| Mast Type | Standard 2-Stage | Standard 2-Stage | Full Free Lift 2-Stage |
| Fork Length | 1150 mm | 1150 mm | 1150 mm |
| Battery | 24V/210–280Ah | 24V/280Ah | 24V/280Ah |
| Drive Motor | AC 1.5 kW | AC 1.5 kW | AC 1.5 kW |
| Lift Motor | DC 3.0 kW | DC 3.0 kW | DC 3.0 kW |
| Steering Motor | DC 0.15 kW | DC 0.15 kW | DC 0.15 kW |
| Wheel Type | PU | PU | PU |
Application
1. Warehouse Storage
2. Manufacturing Plants
3. Retail & Distribution Centers
