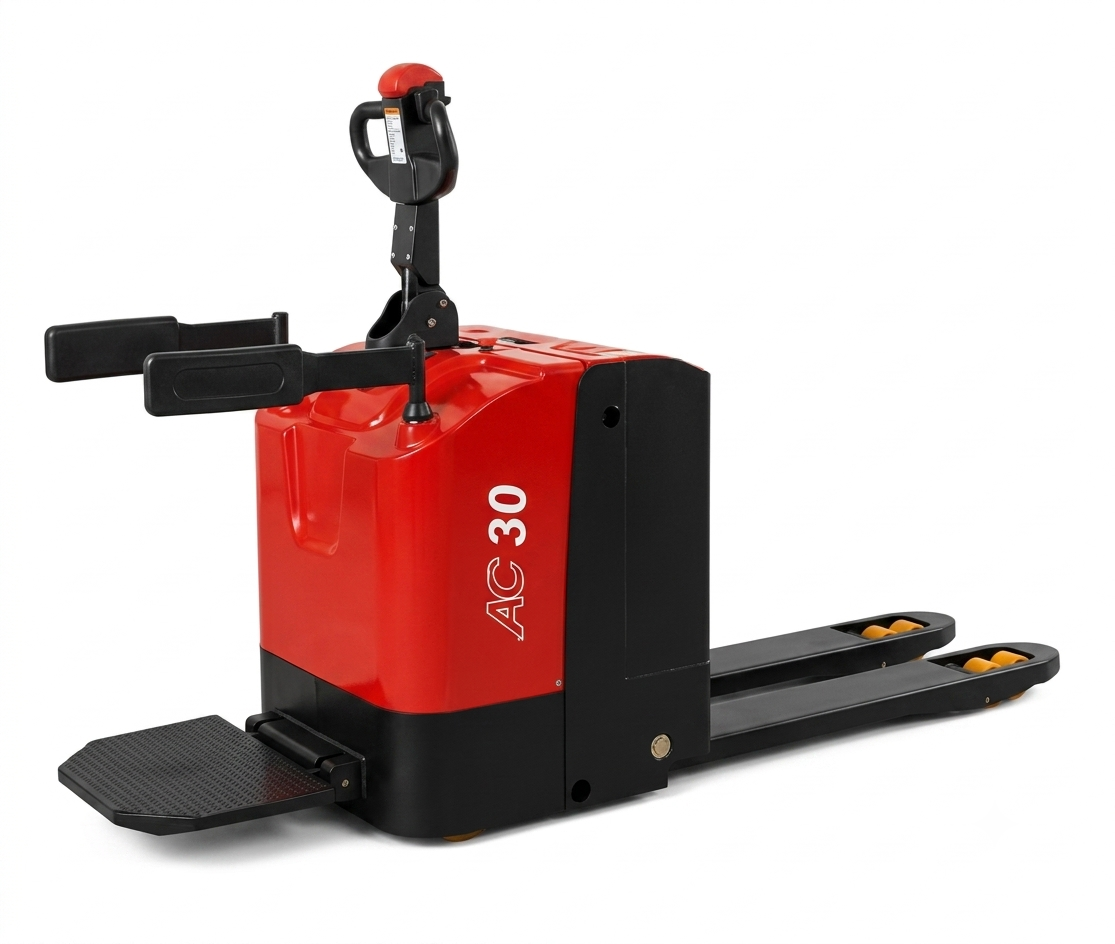

The QYD30-460Q 3 Ton Stand-On Electric Tow Tractor is designed for efficient horizontal material transportation in warehouses, factories, production lines, logistics centers, and other industrial facilities. With a 3,000 kg rated traction capacity, electronic steering, AC drive technology, and electric lifting functions, this stand-on electric tow tractor provides reliable performance for frequent towing and material handling operations.
Powerful AC Drive System for Efficient Towing
The QYD30-460Q is equipped with a 1.5 kW AC drive motor and ZAPI controller, delivering strong traction, smooth acceleration, and stepless speed control. The brushless AC motor requires minimal maintenance while providing reliable performance for daily industrial transportation. With a 6 km/h travel speed and up to 16% gradeability when unloaded, the electric tow tractor can handle a variety of warehouse and factory transportation routes.
Floating Drive Unit for Stable Operation
The patented floating drive unit design helps maintain stable contact between the drive wheel and the operating surface, improving traction and driving stability. Combined with electronic steering, the QYD30-460Q offers light and quiet operation while reducing operator effort during frequent material transportation tasks.
Electric Lifting for Flexible Material Handling
In addition to its towing function, the QYD30-460Q features electric lifting with a maximum fork lifting height of 355 mm. The standard lifting limit device helps improve operating efficiency and control during material handling. This makes the stand-on electric tow tractor suitable for applications requiring both towing and auxiliary lifting functions.
Electronic Steering and Automatic Corner Speed Reduction
The electronic steering system provides responsive and lightweight control, making the vehicle easier to maneuver in warehouse and production environments. The automatic speed reduction function when cornering helps improve vehicle stability and operational safety, particularly when transporting loads through turns.
Convenient Battery Side-Access Design
The battery compartment features a side-pull battery design, allowing the battery to be removed and replaced more conveniently. The QYD30-460Q is available with both lead-acid and lithium battery configurations. The lithium version uses a 24V 200Ah lithium battery with a 24V 100A charger, providing fast charging and high energy efficiency for applications requiring frequent equipment use.
Compact Stand-On Design
With an overall length of 1,950 mm, width of 790 mm, and minimum turning radius of 1,700 mm, the QYD30-460Q combines a compact structure with practical maneuverability. Its stand-on operating configuration allows operators to work efficiently on repetitive transportation routes while maintaining good visibility and convenient access to controls.
Technical Specifications
| Feature | Unit | ||
| Rated traction weight | kg | 3000 | |
| Rated pulling power | N | 900 | |
| Wheels type | PU | ||
| Wheel quantity Driving wheel/Bearing wheel | 1/2/4 | ||
| Overall length | mm | 1950 | |
| Overall width | mm | 790 | |
| Travel speed,laden/unladen | km/h | 6/6 | |
| Gradeability,laden/unladen | % | 6/16 | |
| Drive motor/Lift motor/Steering motor | KW | AC1.5/DC2.2/DC0.3 | |
| Controller | ZAPI | ||
Applications
The QYD30-460Q electric tow tractor is suitable for a wide range of material transportation applications, including:
- Warehouse and distribution center logistics
- Factory material transportation
- Production line feeding
- Assembly line logistics
- Industrial cart and trailer towing
- Internal material movement
- Repetitive warehouse transportation routes
With its 3-ton towing capacity, AC drive system, electronic steering, electric lifting, compact stand-on design, and lithium battery option, the QYD30-460Q provides a practical electric solution for businesses looking to improve internal material flow and reduce manual handling effort.
