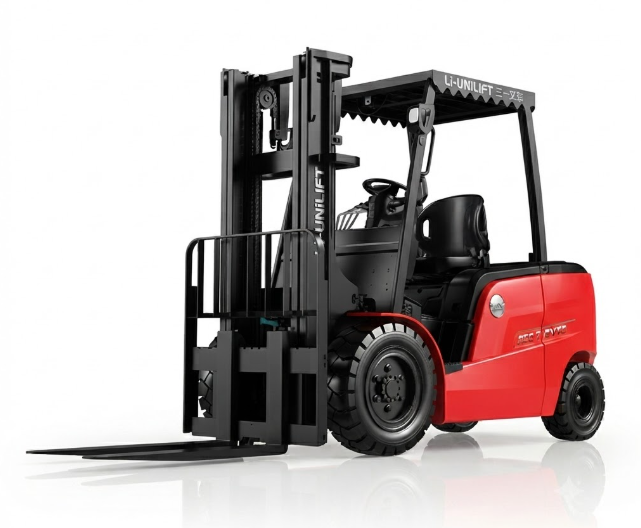

SCP35C7 Counterbalance Forklift

SCP35C7 Counterbalance Forklift is a 3.5-ton electric counterbalance forklift designed for high-performance material handling in warehouses, factories, logistics centers, and industrial applications.

Key Features
Maximum speed over 20km/h under full load, gradeability over 25% under full load
Equipped with a 7-inch industrial-grade intelligent touchscreen instrument panel, supporting remote OTA upgrades, real-time monitoring, and intelligent locking
New three-electric system temperature management system ensures optimal operating conditions and extends service life
Fully adaptable to heavy-duty conditions, capable of operating in harsh environments such as high temperature, extreme cold, and high corrosion
IP67 protection rating for the three-electric system, IPX4 protection rating for the entire vehicle

Performance Breakthrough: The first electric forklift in China to achieve a maximum speed over 20km/h under full load and a gradeability over 25% under full load

Structural Optimization: Enhanced structural design based on the C6 model, fully adaptable to heavy-duty conditions

Intelligent Interaction: Equipped with a 7-inch industrial-grade intelligent touchscreen instrument panel, supporting remote OTA upgrades, real-time monitoring, and intelligent locking

Superior Protection: IP67 protection rating for the three-electric system, IPX4 protection rating for the entire vehicle

Innovative Temperature Control: New three-electric system temperature management system ensures optimal operating conditions and extends service life

Suitable Operating Conditions: Capable of operating in harsh environments such as high temperature, extreme cold, and high corrosion

Technical Specifications

Specification	Value
Rated Load Capacity (kg)	3500
Operating Weight (kg)	5150
Maximum Travel Speed (km/h)	20/20
Maximum Gradeability at Full Load (%)	20
Minimum Turning Radius (mm)	2350
Battery (V/kWh)	294.4V/29.4kWh

High Reliability

Our vehicles adopt mature lithium battery drive system and solid industrial structure, with strict whole-machine testing, delivering stable performance under long-time heavy-load working conditions.

Full Series Product Line

We cover complete electric warehouse equipment including pallet trucks, stackers, reach trucks, order pickers and towing tractors, matching all storage and handling scenarios from light to heavy load.

Intelligent Control System

Equipped with IoT & AI integrated on-board control modules, supporting automatic route planning, obstacle avoidance and fleet digital management to cut labor costs and lower operation risks.

Advantage

Light Energy & Low Carbon

Advanced lithium energy management system greatly improves energy conversion efficiency, achieves zero emission operation, reduces customer daily power consumption and logistics carbon footprint.

Global Standard Certifications

All products pass CE, EAC, CSA, UL and meet EU Stage V & EPA environmental standards, fully compliant with access regulations of over 100 countries worldwide.

Customized Versatile Solution

We provide one-stop customized engineering solutions covering design, equipment matching and after-sales service, tailor-make handling equipment for food, medicine, cold chain, auto and electronics industries.

Customers' comments on

Stable Quality & Long Service Life

“We have purchased U-LIFT electric pallet trucks and stackers for 3 years. The lithium battery system performs well with low failure rate, and the whole machine runs stably under daily heavy loading. After-sales team responds quickly when we have technical questions. It is a trustworthy long-term supplier for our warehouse expansion.”
