Introduction
Introducing the electric pallet truck, an essential material handling device for warehouses, factories, and distribution centers. But are you clear on whether electric pallet trucks use AC or DC power?
Understanding whether an electric pallet truck uses AC (alternating current) or DC (direct current) drive is important for procurement, maintenance, and long-term operating costs. While both types of equipment can perform pallet handling tasks, they differ significantly in performance, maintenance requirements, and applicable scenarios.
Understanding the Basic Electrical System of an Electric Pallet Truck
The Basic Electrical System of an Electric Pallet Truck refers to the core electrical components and their operating systems required for the electric pallet truck to achieve driving, steering, lifting, braking, and safety control. In addition, it includes the drive system, hydraulic system, steering, braking, chassis system, forklift carrying system, and other structural components.
What Type of Power Source Does an Electric Pallet Truck Use?
Electric pallet trucks use rechargeable batteries as their power source, mainly lead-acid or lithium-ion batteries, to provide electrical energy for driving and lifting operations.

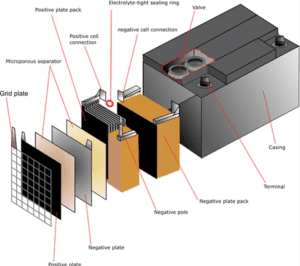

Lead-Acid Battery
Traditional power solution
Lower initial cost
Requires regular maintenance
Lithium Battery
Advanced energy solution
Longer runtime
Faster charging
Maintenance-free operation
What Happens After the Battery Provides DC Power?
Explain the electrical flow:
Battery (DC Power)
↓
Controller
↓
Drive Motor (AC or DC)
↓
Drive Wheel Movement
Explain that the controller manages power distribution and controls:
Speed
Acceleration
Braking
Direction
Difference Between AC Power and DC Power
AC power is alternating current that changes direction periodically, while DC power is direct current that flows in one direction. Electric pallet truck batteries use DC power, and the drive system can use either AC or DC motors depending on the design.
What Is DC Power?
DC power (Direct Current power) is a type of electrical power where current flows continuously in one direction, providing a stable and reliable energy supply. It is widely used in battery-powered equipment because batteries naturally store and release DC electricity. Due to its easy energy storage capability and stable power output, DC power is commonly applied in electric pallet trucks, electric stackers, forklifts, and other battery-powered material handling equipment.
What Is AC Power?
AC power (Alternating Current power) is a type of electrical power where the direction of current changes periodically. It is widely used in industrial electrical systems because it can be transmitted efficiently over long distances with lower energy losses. Due to its advantages in power transmission and compatibility with AC motors, AC power is commonly used in factory power supplies, charging stations, and industrial equipment drive systems.
Do Electric Pallet Trucks Use AC Motors or DC Motors?
Electric pallet trucks can use both AC motors and DC motors. Older models usually use DC motors for their simple design and low cost, while newer models often use AC motors for higher efficiency and better performance.
Traditional Electric Pallet Trucks with DC Motors
Many earlier electric pallet trucks were equipped with DC batteries and DC traction motors. This system has a simple structure, lower manufacturing costs, and is relatively easy to maintain, making it a practical choice for basic material handling needs.
However, DC motor systems rely on carbon brushes, which can wear out over time, leading to lower efficiency and more frequent maintenance requirements.
Therefore, these electric pallet trucks are mainly suitable for light-duty applications, small warehouses, and occasional material handling operations where high-intensity continuous use is not required.
Modern Electric Pallet Trucks with AC Motors
Many advanced electric pallet trucks are equipped with DC lithium batteries and AC brushless drive motors. During operation, the DC power from the lithium battery is converted by the controller into AC power to drive the motor, enabling more efficient energy transmission and better vehicle performance.
Compared with traditional DC motor systems, AC brushless motors offer higher efficiency, better energy utilization, longer operating time, and lower maintenance requirements because they do not use carbon brushes, reducing component wear.
They also provide stronger acceleration, smoother operation, and improved climbing ability, making these electric pallet trucks ideal for heavy-duty applications, long-distance transportation, and high-frequency warehouse operations.
AC Motor vs DC Motor Electric Pallet Truck Comparison
| Feature | DC Motor Pallet Truck | AC Motor Pallet Truck |
|---|---|---|
| Power source | DC battery | DC battery |
| Motor type | DC motor | AC motor |
| Efficiency | Moderate | Higher |
| Maintenance | More frequent | Lower |
| Carbon brush | Required | Not required |
| Driving performance | Standard | Better |
| Suitable applications | Light duty | Heavy duty |
FAQ
Q1: Is an electric pallet truck powered by AC or DC?
Electric pallet trucks usually use DC battery power, while the motor can be either DC or AC depending on the model.
Q2: Are lithium electric pallet trucks AC or DC?
Lithium electric pallet trucks use a DC lithium battery, which supplies power to an AC or DC drive motor through the controller.
Q3: Is an AC motor better than a DC motor for electric pallet trucks?
In most cases, AC motors provide better efficiency, smoother operation, and lower maintenance, making them suitable for heavy-duty and frequent-use applications.
Q4: Do electric pallet trucks need external AC power to operate?
No. Electric pallet trucks are powered by rechargeable batteries and only need external AC power when charging the battery.
Q5: How long does an electric pallet truck battery last?
The battery life depends on the battery type and usage. Generally, lead-acid batteries last about 2–5 years, while lithium batteries can last around 5–8 years or more with proper maintenance.
