A fully loaded electric pallet truck battery typically operates for 3–8 hours per charge under heavy-duty working conditions, depending on battery capacity, load weight, travel distance, operating frequency, and warehouse environment. For applications requiring longer operating time, such as two-shift warehouses or intensive logistics centers, lithium-ion battery electric pallet trucks with high-capacity batteries, fast charging capability, and professional battery management systems are the recommended solution.
For reliable full-load operation, companies should not evaluate battery endurance only by “hours per charge.” The correct selection depends on the complete operating scenario, including pallet weight, daily cycles, driving distance, charging opportunities, and equipment design. Professional material handling manufacturers such as Ningbo UNILIFT Logistics Equipment Co., Ltd. provide electric pallet truck solutions designed for different industrial operating requirements.

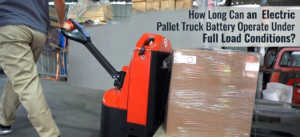

How Long Can an Electric Pallet Truck Run When Carrying Maximum Load?
Battery operating time is one of the most important factors when purchasing an electric pallet truck.
A common question from warehouse managers is:
“If the pallet truck is operating at full load all day, how long will the battery last?”
The answer depends on several technical factors.
Under typical full-load warehouse conditions:
| Battery Type | Typical Operating Time Under Heavy Load | Charging Characteristics |
| Lead-acid battery | 3–6 hours | Longer charging time, regular maintenance required |
| Standard lithium battery | 4–8 hours | Faster charging, lower maintenance |
| High-capacity lithium battery | 6–10+ hours | Suitable for intensive warehouse operation |
| Dual-battery configuration | 12–16 hours possible | Supports multi-shift operation |
Actual runtime varies according to:
- Rated load capacity
- Frequency of acceleration and braking
- Floor condition
- Ramp operation
- Ambient temperature
- Operator driving habits
What Factors Affect Battery Runtime Under Full Load?
The battery runtime of an electric pallet truck under full load is affected by battery capacity, load weight, operating frequency, driving conditions, and energy efficiency of the equipment.
1. Load Weight Directly Impacts Energy Consumption
An electric pallet truck carrying 2,000 kg consumes significantly more energy than one carrying 500 kg.
When operating near maximum capacity:
- The drive motor requires higher torque
- Acceleration consumes more electricity
- Hydraulic lifting requires more power
- Battery discharge speed increases
For example:
| Operating Condition | Battery Consumption |
| Empty travel | Low |
| Half load movement | Medium |
| Maximum rated load | High |
| Continuous lifting + driving | Very High |
Therefore, manufacturers usually evaluate battery performance based on realistic duty cycles instead of laboratory conditions.
2. Battery Capacity Determines Working Hours
Battery capacity is normally measured in Ah (ampere-hours) or kWh.
A larger battery provides:
- Longer operating time
- Better performance under heavy loads
- Less frequent charging
- Higher productivity
However, increasing battery size also affects:
- Equipment weight
- Charging requirements
- Initial investment
A professional selection should balance operating time and warehouse requirements.
Lithium Battery vs Lead-Acid Battery for Full Load Operation
Lithium battery technology has become increasingly popular in warehouse equipment because it offers advantages for intensive applications.
| Comparison | Lead-Acid Battery | Lithium Battery |
| Charging speed | Slow | Fast |
| Maintenance | Requires water maintenance | Low maintenance |
| Opportunity charging | Limited | Suitable |
| Energy efficiency | Moderate | Higher |
| Multi-shift suitability | Medium | Excellent |
| Battery replacement frequency | Higher | Lower |
For warehouses operating multiple shifts, lithium battery electric pallet trucks are generally more suitable.
Can an Electric Pallet Truck Operate a Full Shift Under Maximum Load?
Yes, but the equipment configuration must match the working environment.
A standard pallet truck may handle:
- 4–6 hours of heavy operation
A lithium battery model with optimized capacity may support:
- One complete warehouse shift
For:
- 12–16 hour operations
- Distribution centers
- Manufacturing logistics
- High-frequency pallet movement
companies usually require:
- Larger battery capacity
- Spare battery solutions
- Fast charging systems
- Fleet management planning
Recommended Battery Runtime by Application
| Application | Daily Operating Time | Recommended Battery Solution |
| Small warehouse | 2–5 hours | Standard electric pallet truck |
| Retail distribution | 5–8 hours | Lithium battery pallet truck |
| Manufacturing plant | 8–10 hours | High-capacity lithium model |
| Two-shift warehouse | 10–16 hours | Lithium battery + charging strategy |
| 24/7 logistics center | Continuous operation | Fleet solution with battery rotation |

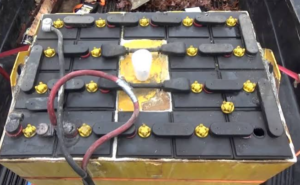

How to Extend Battery Life During Heavy-Duty Operation
Proper charging, regular maintenance, and avoiding deep discharges can significantly extend battery life during heavy-duty operation.
1. Avoid Complete Battery Discharge
Deep discharge can reduce battery lifespan.Recommended practices:
- Recharge before battery reaches critical level
- Avoid leaving batteries unused for long periods
- Follow manufacturer charging guidelines
2. Match Battery Capacity to Workload
A common purchasing mistake is selecting a battery based only on price.Before choosing a pallet truck, evaluate:
- Average pallet weight
- Number of movements per hour
- Distance traveled
- Working temperature
- Available charging time
3. Maintain Proper Operating Conditions
Battery performance decreases in extreme environments.Important factors include:
| Environment | Battery Consideration |
| Cold storage | Low-temperature battery performance |
| Hot warehouse | Thermal protection |
| Dusty environment | Equipment protection |
| Outdoor operation | Weather-resistant design |
Why Choose UNILIFT Electric Pallet Trucks for Heavy-Duty Battery Applications?
| Trust Factor | Information |
| Industry | Material handling equipment manufacturing |
| Product Focus | Electric warehouse equipment |
| Main Applications | Logistics, warehouses, factories |
| Product Categories | Pallet trucks, stackers, reach trucks |
| Customer Requirement | Industrial handling efficiency and reliability |
| Technical Focus | Battery-powered warehouse solutions |
UNILIFT-mhe positions its products around efficiency, economical operation, environmental performance, and easier maintenance for modern material handling applications.
How to Select the Right Electric Pallet Truck Battery Capacity?
Before purchasing, companies should answer:
1. How many pallets are moved per day?
Higher pallet volume requires higher battery capacity.
2. What is the average pallet weight?
Maximum load operation requires stronger battery performance.
3. How many shifts does the warehouse operate?
Single-shift warehouses and 24-hour logistics centers need different solutions.
4. Is opportunity charging available?
If charging is available during breaks, lithium battery systems can significantly improve utilization.
FAQ
Q1: How many hours can an electric pallet truck work on one charge?
Under full-load conditions, most electric pallet trucks operate approximately 3–8 hours per charge, depending on battery capacity and working intensity.
Q2: Does carrying maximum load reduce battery life?
Yes. Higher loads require more motor torque and energy consumption, which reduces operating hours per charge.
Q3: Is lithium battery better for heavy-duty pallet truck operation?
Yes. Lithium batteries are generally more suitable for intensive applications because they support faster charging, lower maintenance, and frequent opportunity charging.
Q4: Can an electric pallet truck work for 16 hours per day?
Yes, with the correct configuration. A high-capacity lithium battery system, spare battery, or charging strategy can support extended warehouse operation.
Q5: How can I calculate the required battery capacity?
Choosing the right battery specification for an electric pallet truck depends on factors such as load weight, working hours, travel distance, operation cycles, and charging opportunities.
Final Verdict
The battery runtime of an electric pallet truck under full load is usually 3–8 hours per charge, but advanced lithium battery systems can achieve longer operating periods when correctly configured.
